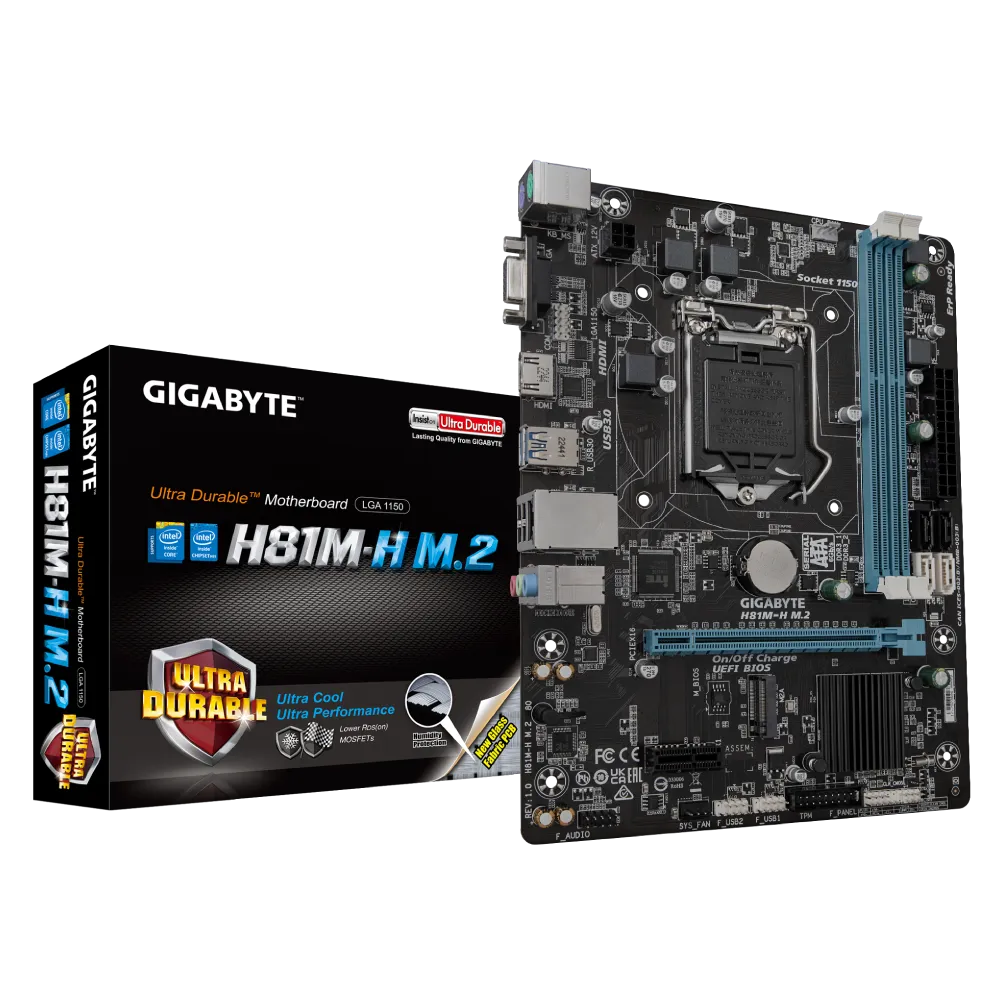

Specifications: Category Details CPU – Supports Intel Core i7/i5/i3, Pentium, and Celeron processors in LGA1150 package.- L3 cache varies with CPU.Refer to “CPU Support List” for more details. Chipset Intel H81 Express Chipset Memory – 2 x DDR3 DIMM sock
| Category | Details |
|---|---|
| CPU | – Supports Intel Core i7/i5/i3, Pentium, and Celeron processors in LGA1150 package. – L3 cache varies with CPU. Refer to “CPU Support List” for more details. |
| Chipset | Intel H81 Express Chipset |
| Memory | – 2 x DDR3 DIMM sockets, up to 16 GB system memory. – Dual channel memory architecture. – Supports DDR3 1600/1333 MHz, non-ECC, and Extreme Memory Profile (XMP) modules. 32-bit Windows OS limitations apply for memory above 4 GB. |
| Onboard Graphics | Integrated Intel HD Graphics: – 1 x D-Sub port (1920×1200 max resolution). – 1 x HDMI port (4096×2160 max resolution, HDMI 1.4a). – Max shared memory: 1 GB. |
| Audio | Realtek Audio CODEC, High Definition Audio. Supports 2/4/5.1/7.1 channels (via software configuration). |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps). |
| Expansion Slots | – 1 x PCI Express x16 slot (PCIe 2.0, x16). – 1 x PCI Express x1 slot (PCIe 2.0). |
| Storage Interface | – 1 x M.2 connector (SATA & PCIe 2.0 x4/x2 SSDs, shares bandwidth with SATA3 0). – 2 x SATA 6Gb/s connectors (SATA3). – 2 x SATA 3Gb/s connectors (SATA2). |
| USB | – 2 x USB 3.0/2.0 ports (rear panel). – 6 x USB 2.0/1.1 ports (2 rear, 4 internal headers). |
| Internal I/O Connectors | – 24-pin ATX power, 4-pin ATX 12V power. – 1 x M.2 connector, 2 x SATA 6Gb/s connectors, 2 x SATA 3Gb/s connectors. – CPU/system fan headers, front panel/audio headers. – 2 x USB 2.0/1.1 headers, serial port header, Clear CMOS jumper, TPM header. |
| Back Panel Connectors | – PS/2 mouse and keyboard ports. – 1 x D-Sub port, 1 x HDMI port. – 2 x USB 3.0/2.0 ports, 2 x USB 2.0/1.1 ports. – 1 x RJ-45 port, 3 x audio jacks. |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | – Voltage, temperature, fan speed detection. – Overheating/fan fail warnings, fan speed control. Fan speed control depends on the fan installed. |
| BIOS | – 1 x 32 Mbit flash. – Licensed AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0). |
| Unique Features | – Q-Flash, APP Center (features vary by model). – Applications: @BIOS, EasyTune, EZ Setup, USB Blocker, Smart TimeLock, Smart Recovery 2, ON/OFF Charge. |
| Bundled Software | Norton Internet Security (OEM version), LAN bandwidth management software. |
| Operating System | Supports Windows 10/7. |
| Form Factor | Micro ATX, 23.0cm x 17.5cm. |
| Remarks | – Linux support depends on chipset vendors. – Some hardware/software vendors no longer provide drivers for older operating systems. |
| Category | Details |
|---|---|
| CPU | – Supports Intel Core i7/i5/i3, Pentium, and Celeron processors in LGA1150 package. – L3 cache varies with CPU. Refer to “CPU Support List” for more details. |
| Chipset | Intel H81 Express Chipset |
| Memory | – 2 x DDR3 DIMM sockets, up to 16 GB system memory. – Dual channel memory architecture. – Supports DDR3 1600/1333 MHz, non-ECC, and Extreme Memory Profile (XMP) modules. 32-bit Windows OS limitations apply for memory above 4 GB. |
| Onboard Graphics | Integrated Intel HD Graphics: – 1 x D-Sub port (1920×1200 max resolution). – 1 x HDMI port (4096×2160 max resolution, HDMI 1.4a). – Max shared memory: 1 GB. |
| Audio | Realtek Audio CODEC, High Definition Audio. Supports 2/4/5.1/7.1 channels (via software configuration). |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps). |
| Expansion Slots | – 1 x PCI Express x16 slot (PCIe 2.0, x16). – 1 x PCI Express x1 slot (PCIe 2.0). |
| Storage Interface | – 1 x M.2 connector (SATA & PCIe 2.0 x4/x2 SSDs, shares bandwidth with SATA3 0). – 2 x SATA 6Gb/s connectors (SATA3). – 2 x SATA 3Gb/s connectors (SATA2). |
| USB | – 2 x USB 3.0/2.0 ports (rear panel). – 6 x USB 2.0/1.1 ports (2 rear, 4 internal headers). |
| Internal I/O Connectors | – 24-pin ATX power, 4-pin ATX 12V power. – 1 x M.2 connector, 2 x SATA 6Gb/s connectors, 2 x SATA 3Gb/s connectors. – CPU/system fan headers, front panel/audio headers. – 2 x USB 2.0/1.1 headers, serial port header, Clear CMOS jumper, TPM header. |
| Back Panel Connectors | – PS/2 mouse and keyboard ports. – 1 x D-Sub port, 1 x HDMI port. – 2 x USB 3.0/2.0 ports, 2 x USB 2.0/1.1 ports. – 1 x RJ-45 port, 3 x audio jacks. |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | – Voltage, temperature, fan speed detection. – Overheating/fan fail warnings, fan speed control. Fan speed control depends on the fan installed. |
| BIOS | – 1 x 32 Mbit flash. – Licensed AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0). |
| Unique Features | – Q-Flash, APP Center (features vary by model). – Applications: @BIOS, EasyTune, EZ Setup, USB Blocker, Smart TimeLock, Smart Recovery 2, ON/OFF Charge. |
| Bundled Software | Norton Internet Security (OEM version), LAN bandwidth management software. |
| Operating System | Supports Windows 10/7. |
| Form Factor | Micro ATX, 23.0cm x 17.5cm. |
| Remarks | – Linux support depends on chipset vendors. – Some hardware/software vendors no longer provide drivers for older operating systems. |
