Specifications: Chipset Intel Z890 Cpu Supports Intel Core„ Ultra Processors (Series 2)Lga 1851 Memory 4X Ddr5 Udimm, Maximum Memory Capacity 256Gbmemory Support 9200 – 6400 (Oc) Mt/S / 6400 – 4800 (Jedec) Mt/Smax. Overclocking Frequency:€ 1Dpc 1R Max Spe
| Chipset | Intel Z890 |
|---|---|
| Cpu | Supports Intel Core„ Ultra Processors (Series 2) Lga 1851 |
| Memory | 4X Ddr5 Udimm, Maximum Memory Capacity 256Gb Memory Support 9200 – 6400 (Oc) Mt/S / 6400 – 4800 (Jedec) Mt/S Max. Overclocking Frequency: € 1Dpc 1R Max Speed Up To 9200+ Mt/S € 1Dpc 2R Max Speed Up To 7200+ Mt/S € 2Dpc 1R Max Speed Up To 4800+ Mt/S € 2Dpc 2R Max Speed Up To 4800+ Mt/S Supports Intel Por Speed And Jedec Speed Supports Memory Overclocking And Intel Xmp 3.0 Supports Dual-Controller Dual-Channel Mode Supports Non-Ecc, Un-Buffered Memory Supports Cudimm € The Dimm Slots On This Motherboard Have Single-Sided Latches. € Memory Compatibility And Supported Speeds Can Vary Depending On The Cpu And Memory Configuration. For Detailed Information, Please Refer To The Memory Compatibility List Available On The Product€™S Support Page Or Visit Https://Www.Msi.Com/Support/. |
| Onboard Graphics | 1X Hdmi„ Supports HdmiTm2.1 With Frl Port, Maximum Resolution Of 8K 60Hz* 2X Type-C Displayport ThundeboltTm4 Ports, Supporting Displayport 1.4 With Hbr3 Over Usb Type-C, With A Maximum Resolution Of 8K@60Hz* *Available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed. |
| Slot | 2X Pci-E X16 Slot 1X Pci-E X1 Slot Pci_E1 Gen Pcie 5.0 Supports Up To X16 (From Cpu) Pci_E2 Gen Pcie 4.0 Supports Up To X1 (From Chipset) Pci_E3 Gen Pcie 4.0 Supports Up To X4 (From Chipset) € Pci_E1 Support Manual Bios Adjustment To X8+X8 / X8+X4+X4 |
| Audio | RealtekAlc1220P Codec 7.1-Channel Usb High Definition Audio Supports S/Pdif Output |
| Storage | 5X M.2 M.2_1 Source (From Cpu) Supports Up To Pcie 5.0 X4 , Supports 2280/2260 Devices M.2_2 Source (From Cpu) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices M.2_3 Source (From Chipset) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices M.2_4 Source (From Chipset) Supports Up To Pcie 4.0 X4 , Supports 22110/2280 Devices M.2_5 Source (From Chipset) Supports Up To Pcie 4.0 X4 / Sata Mode, Supports 22110/2280/2260 Devices 4X Sata 6G *Please Refer To The Manual For M.2 Ssd Heatsink Restrictions. |
| Raid | €Supports Raid 0, Raid 1, Raid 5 And Raid 10 For Sata Storage Devices €Supports Raid 0, Raid 1, Raid 5 And Raid 10 For M.2 Nvme Storage Devices |
| Onboard Thunderbolt | 2X Thunderbolt4 Ports (Rear) Supports Up To 40Gbps Transfer Rate With Thunderbolt Devices Supports Up To 20Gbps Transfer Rate With Usb4 Devices Supports Up To 10Gbps Transfer Rate With Usb 3.2 Devices Supports Up To 5V/3A,15W Power Charging Each Port Can Daisy-Chain Up To Three Thunderbolt 4 Devices Or Five Thunderbolt 3 Devices Supports Up To 8K Display |
| Usb | 1X Usb 2.0 (Rear) 4X Usb 2.0 (Front) 4X Usb 5Gbps Type A (Rear) 2X Usb 5Gbps Type A (Front) 4X Usb 10Gbps Type A (Rear) 1X Usb 10Gbps Type C (Rear) 1X Usb 20Gbps Type C (Front) *Usb 20Gbps Type-C (Front) Support Usb Pd 27W Fast Charging For Jusbc1 |
| Lan | 1X IntelKiller„ E5000B 5G Lan |
| Internal Io | 1X Thunderbolt5 Card Connector(Jtbt5, Support Rtd3) 1X Power Connector(Atx_Pwr) 2X Power Connector(Cpu_Pwr) 1X Power Connector(Pcie_Pwr 8Pin) 1X Cpu Fan 1X Combo Fan (Pump_Sys Fan) 6X System Fan 1X Ez Conn-Header (Jaf_2) 2X Front Panel (Jfp) 1X Chassis Intrusion (Jci) 1X Front Audio (Jaud) 1X Thermal Sensor Connectors(T_Sen) 3X Addressable V2 Rgb Led Connector (Jargb_V2) 1X Rgb Led Connector(Jrgb) 1X Tpm Pin Header(Support Tpm 2.0) 4X Usb 2.0 Ports 2X Usb 5Gbps Type A Ports 1X Usb 20Gbps Type C Ports |
| Wireless Lan &Amp; Bluetooth | IntelKiller„ Be1750X Wi-Fi 7 The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports Mu-Mimo Tx/Rx, 2.4Ghz/ 5Ghz/ 6Ghz* (320Mhz) Up To 5.8Gbps Supports 802.11 A/ B/ G/ N/ Ac/ Ax/ Be Supports Bluetooth5.4**, Mlo, 4Kqam * 6Ghz Band Support May Depend On Every Country€™S Regulations And Wi-Fi 7 Will Be Ready In Windows 11 Version 24H2. ** The Bluetooth Version May Be Updated, Please Refer To The Wi-Fi Chipset Vendor€™S Website For Details. Bluetooth 5.4 Will Be Ready In Windows 11 Version 24H2. |
| Led Feature | 4X Ez Debug Led 1X Ez Digit Debug Led |

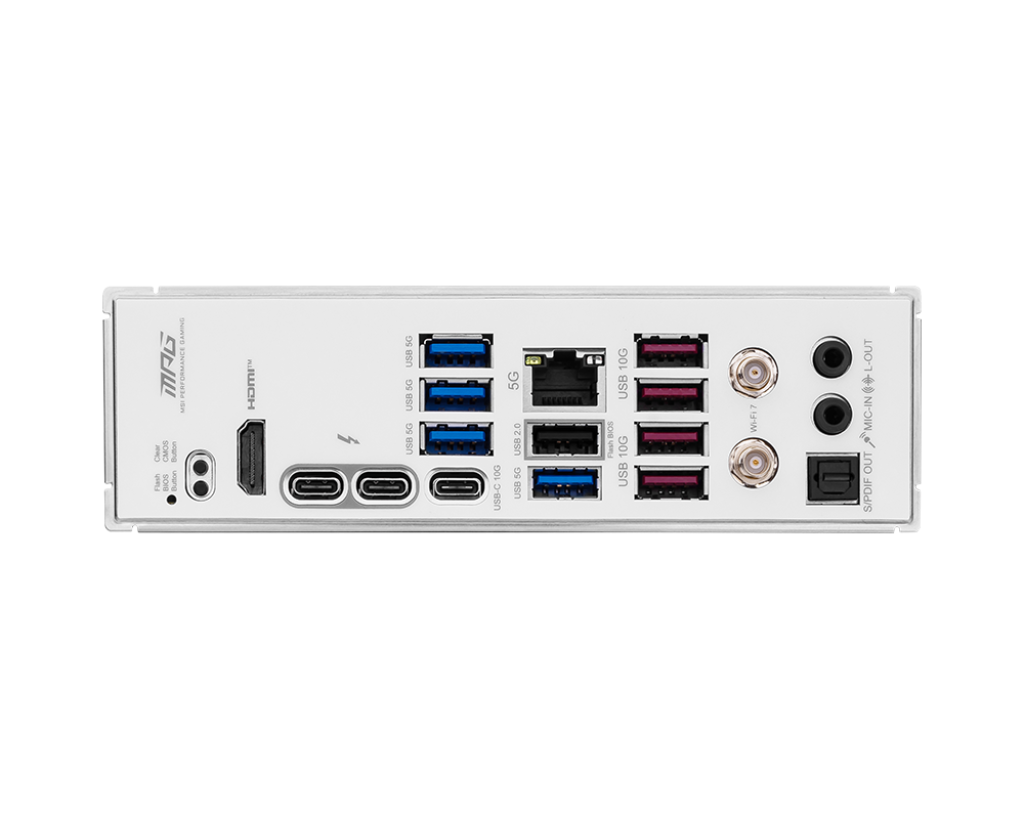

| Back Panel Ports |
|
| Operating System | Support For Windows11 64-Bit |
| Box Content |  |
| Pcb Info | Atx 243.84Mmx304.8Mm |
| Chipset | Intel Z890 |
|---|---|
| Cpu | Supports Intel Core„ Ultra Processors (Series 2) Lga 1851 |
| Memory | 4X Ddr5 Udimm, Maximum Memory Capacity 256Gb Memory Support 9200 – 6400 (Oc) Mt/S / 6400 – 4800 (Jedec) Mt/S Max. Overclocking Frequency: € 1Dpc 1R Max Speed Up To 9200+ Mt/S € 1Dpc 2R Max Speed Up To 7200+ Mt/S € 2Dpc 1R Max Speed Up To 4800+ Mt/S € 2Dpc 2R Max Speed Up To 4800+ Mt/S Supports Intel Por Speed And Jedec Speed Supports Memory Overclocking And Intel Xmp 3.0 Supports Dual-Controller Dual-Channel Mode Supports Non-Ecc, Un-Buffered Memory Supports Cudimm € The Dimm Slots On This Motherboard Have Single-Sided Latches. € Memory Compatibility And Supported Speeds Can Vary Depending On The Cpu And Memory Configuration. For Detailed Information, Please Refer To The Memory Compatibility List Available On The Product€™S Support Page Or Visit Https://Www.Msi.Com/Support/. |
| Onboard Graphics | 1X Hdmi„ Supports HdmiTm2.1 With Frl Port, Maximum Resolution Of 8K 60Hz* 2X Type-C Displayport ThundeboltTm4 Ports, Supporting Displayport 1.4 With Hbr3 Over Usb Type-C, With A Maximum Resolution Of 8K@60Hz* *Available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed. |
| Slot | 2X Pci-E X16 Slot 1X Pci-E X1 Slot Pci_E1 Gen Pcie 5.0 Supports Up To X16 (From Cpu) Pci_E2 Gen Pcie 4.0 Supports Up To X1 (From Chipset) Pci_E3 Gen Pcie 4.0 Supports Up To X4 (From Chipset) € Pci_E1 Support Manual Bios Adjustment To X8+X8 / X8+X4+X4 |
| Audio | RealtekAlc1220P Codec 7.1-Channel Usb High Definition Audio Supports S/Pdif Output |
| Storage | 5X M.2 M.2_1 Source (From Cpu) Supports Up To Pcie 5.0 X4 , Supports 2280/2260 Devices M.2_2 Source (From Cpu) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices M.2_3 Source (From Chipset) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices M.2_4 Source (From Chipset) Supports Up To Pcie 4.0 X4 , Supports 22110/2280 Devices M.2_5 Source (From Chipset) Supports Up To Pcie 4.0 X4 / Sata Mode, Supports 22110/2280/2260 Devices 4X Sata 6G *Please Refer To The Manual For M.2 Ssd Heatsink Restrictions. |
| Raid | €Supports Raid 0, Raid 1, Raid 5 And Raid 10 For Sata Storage Devices €Supports Raid 0, Raid 1, Raid 5 And Raid 10 For M.2 Nvme Storage Devices |
| Onboard Thunderbolt | 2X Thunderbolt4 Ports (Rear) Supports Up To 40Gbps Transfer Rate With Thunderbolt Devices Supports Up To 20Gbps Transfer Rate With Usb4 Devices Supports Up To 10Gbps Transfer Rate With Usb 3.2 Devices Supports Up To 5V/3A,15W Power Charging Each Port Can Daisy-Chain Up To Three Thunderbolt 4 Devices Or Five Thunderbolt 3 Devices Supports Up To 8K Display |
| Usb | 1X Usb 2.0 (Rear) 4X Usb 2.0 (Front) 4X Usb 5Gbps Type A (Rear) 2X Usb 5Gbps Type A (Front) 4X Usb 10Gbps Type A (Rear) 1X Usb 10Gbps Type C (Rear) 1X Usb 20Gbps Type C (Front) *Usb 20Gbps Type-C (Front) Support Usb Pd 27W Fast Charging For Jusbc1 |
| Lan | 1X IntelKiller„ E5000B 5G Lan |
| Internal Io | 1X Thunderbolt5 Card Connector(Jtbt5, Support Rtd3) 1X Power Connector(Atx_Pwr) 2X Power Connector(Cpu_Pwr) 1X Power Connector(Pcie_Pwr 8Pin) 1X Cpu Fan 1X Combo Fan (Pump_Sys Fan) 6X System Fan 1X Ez Conn-Header (Jaf_2) 2X Front Panel (Jfp) 1X Chassis Intrusion (Jci) 1X Front Audio (Jaud) 1X Thermal Sensor Connectors(T_Sen) 3X Addressable V2 Rgb Led Connector (Jargb_V2) 1X Rgb Led Connector(Jrgb) 1X Tpm Pin Header(Support Tpm 2.0) 4X Usb 2.0 Ports 2X Usb 5Gbps Type A Ports 1X Usb 20Gbps Type C Ports |
| Wireless Lan &Amp; Bluetooth | IntelKiller„ Be1750X Wi-Fi 7 The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports Mu-Mimo Tx/Rx, 2.4Ghz/ 5Ghz/ 6Ghz* (320Mhz) Up To 5.8Gbps Supports 802.11 A/ B/ G/ N/ Ac/ Ax/ Be Supports Bluetooth5.4**, Mlo, 4Kqam * 6Ghz Band Support May Depend On Every Country€™S Regulations And Wi-Fi 7 Will Be Ready In Windows 11 Version 24H2. ** The Bluetooth Version May Be Updated, Please Refer To The Wi-Fi Chipset Vendor€™S Website For Details. Bluetooth 5.4 Will Be Ready In Windows 11 Version 24H2. |
| Led Feature | 4X Ez Debug Led 1X Ez Digit Debug Led |
| Back Panel Ports |
|
| Operating System | Support For Windows11 64-Bit |
| Box Content | |
| Pcb Info | Atx 243.84Mmx304.8Mm |
