| Model |

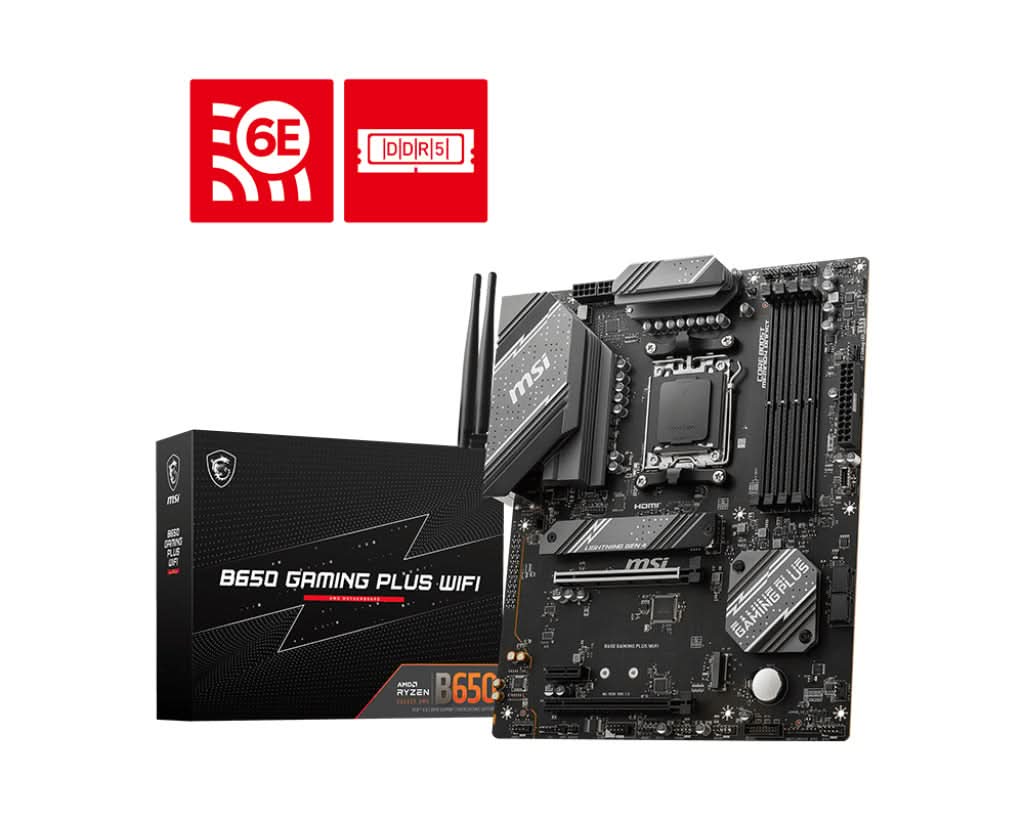

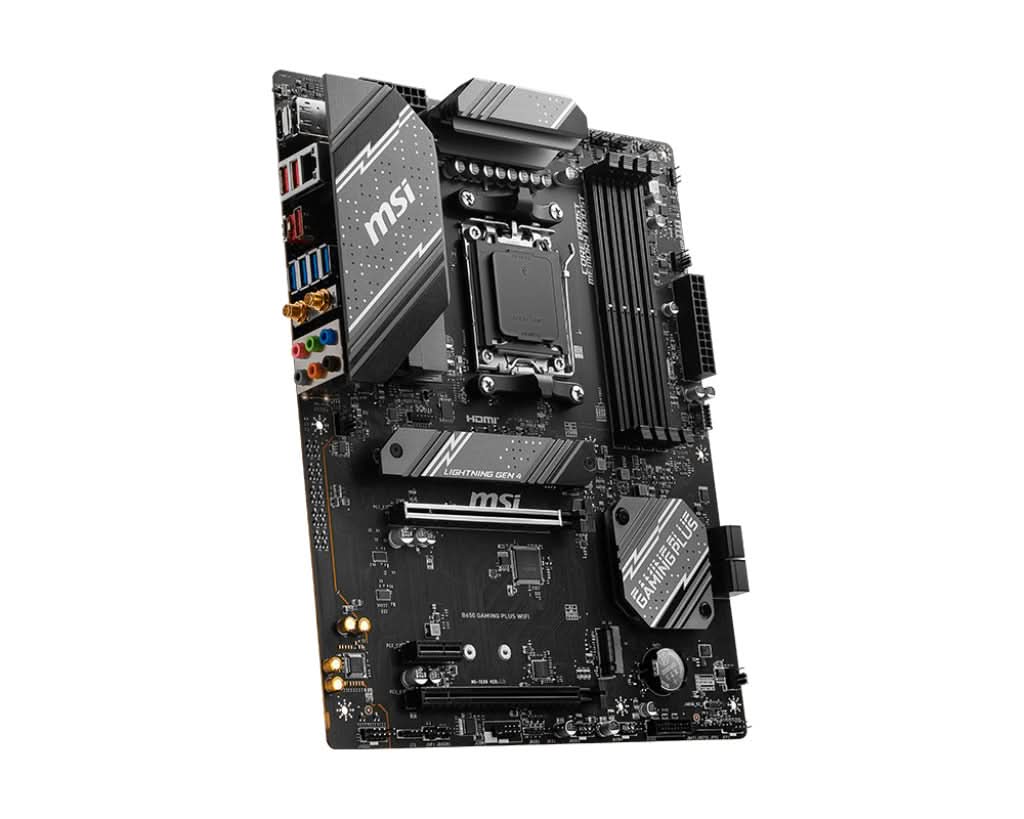

B650 GAMING PLUS WIFI |
| Chipset |
AMD B650 |
| CPU SUPPORT |
Supports AMD Ryzenô 7000 Series Desktop Processors |
| Socket AM5 |
| Memory |
4x DDR5, Maximum Memory Capacity 192GB |
| Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Max. overclocking frequency: |
| ï 1DPC 1R Max speed up to 6000+ MHz |
| ï 1DPC 2R Max speed up to 6000+ MHz |
| ï 2DPC 1R Max speed up to 6000+ MHz |
| ï 2DPC 2R Max speed up to 5400+ MHz |
| Supports Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
| Supports AMD EXPO |
| Onboard Graphics |
1x HDMIô |
| Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz |
| 1x DisplayPort |
| Supports DP1.4, maximum resolution of 4K 60Hz |
| EXPANSION SLOT |
2x PCI-E x16 slot |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Multi-GPU |
AMD MULTI-GPU Support |
| Storage |
2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| 4x SATA 6G |
| RAID |
Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) |
| 2x USB 3.2 Gen1 Type A (Front) |
| 3x USB 3.2 Gen2 Type A (Rear) |
| 1x USB 3.2 Gen2 Type C (Front) |
| 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN |
Realtek 8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH |
AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX |
| Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Supports Bluetooth 5.3 |
| Audio |
Realtek ALC897 Codec |
| 7.1-Channel High Definition Audio |
| Internal I/O |
1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 1x Pump Fan |
| 4x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) |
| 1x Tuning Controller connector(JDASH) |
| 2x Addressable V2 RGB LED connector (JARGB_V2) |
| 2x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 2x USB 3.2 Gen1 Type A ports |
| 1x USB 3.2 Gen2 Type C ports |
| LED FEATURE |
4x EZ Debug LED |
| BACK PANEL PORTS |
DisplayPort |
| 2.5G LAN |
| USB 3.2 Gen 2 10Gbps (Type-A) |
| USB 3.2 Gen 1 5Gbps (Type-A) |
| Wi-Fi / Bluetooth |
| Audio connectors |
| Flash BIOS Button |
| HDMIô |
| USB 3.2 Gen 2 10Gbps (Type-A) |
| USB 3.2 Gen 2×2 20Gbps (Type-C) |
| OPERATING SYSTEM |
Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Dimension (W ◊ L) |
ATX |
| 243.84mmx304.8mm |
| Warranty |
3 Years |
