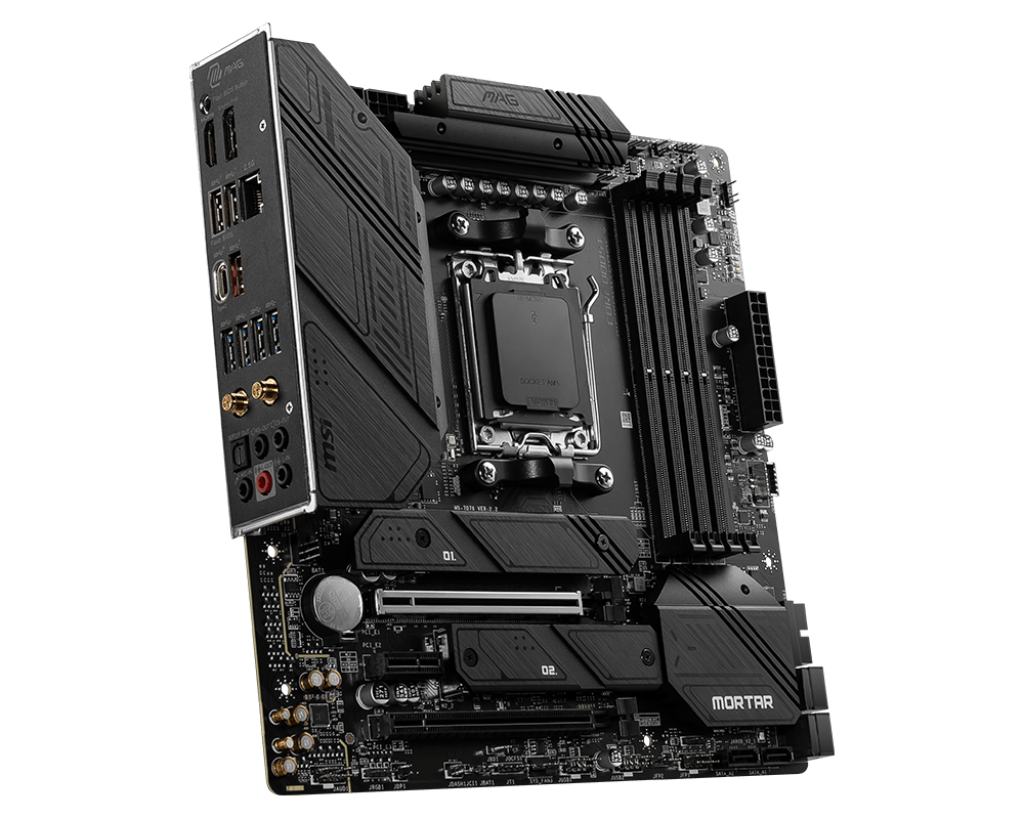

MSI Mag B650M Mortar Ddr5 Motherboard

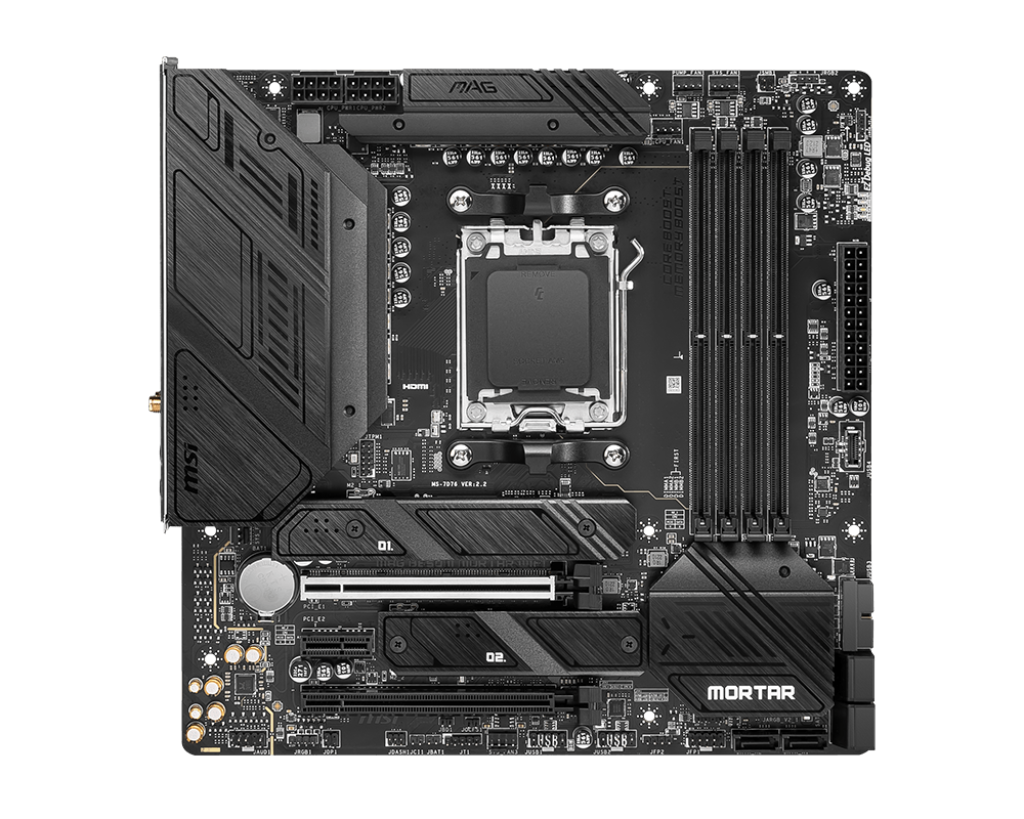

MSI Mag B650M Mortar Ddr5 Motherboard - Image 2

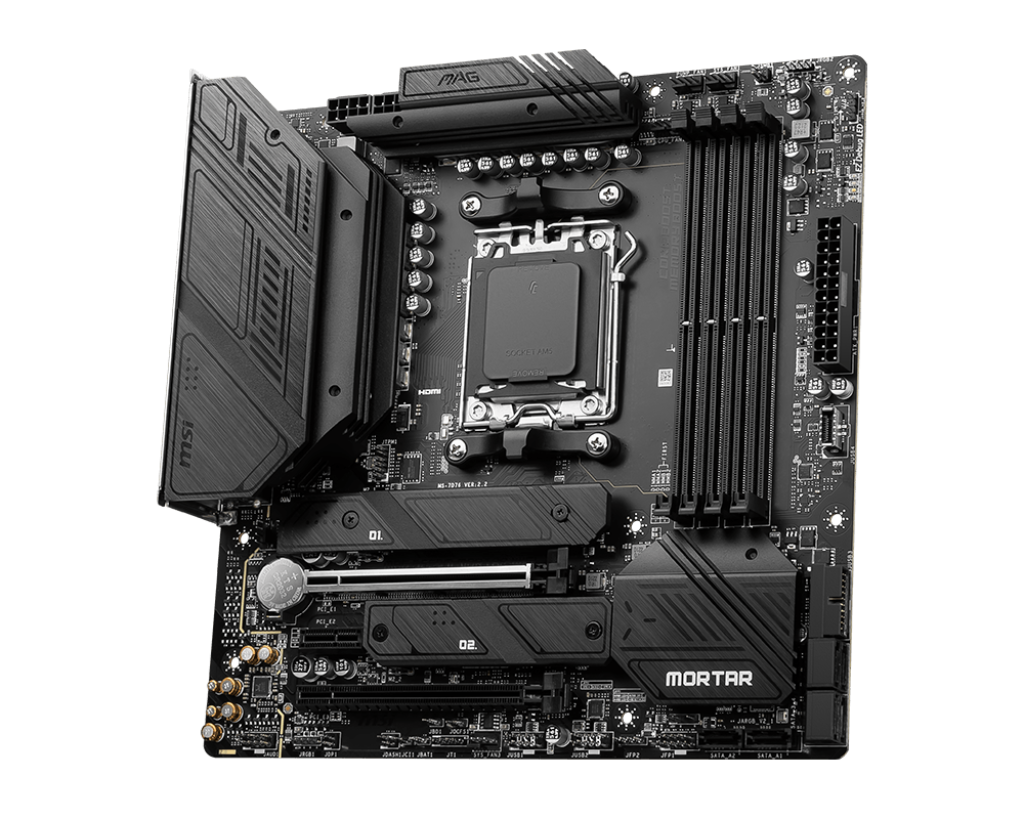

MSI Mag B650M Mortar Ddr5 Motherboard - Image 3
MSI Mag B650M Mortar Ddr5 Motherboard - Image 4

MSI Mag B650M Mortar Ddr5 Motherboard

In Stock
SKU : MSI-19 Product Type: Brand:
₹21,476

Specifications Chipset AMD B650 CPU Supports AMD Ryzen„ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 Memory 4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/

In Stock
Add to wishlist Compare
In Stock

Additional information

Specifications



Chipset AMD B650
CPU Supports AMD Ryzen„ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
€ 1DPC 1R Max speed up to 7600+ MHz
€ 1DPC 2R Max speed up to 6400+ MHz
€ 2DPC 1R Max speed up to 6400+ MHz
€ 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics 1x HDMI„
Support HDMITM2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot
€ Supports x16/x4 (For Ryzen„ 9000 and 7000 Series processors)
€ Supports x8/x4 (For Ryzen„ 7 8700G and Ryzen„ 5 8600G processors)
€ Supports x4/x4 (For Ryzen„ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio RealtekALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
€ The M2_2 slot will be unavailable when using Ryzen„ 5 8500G processor
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN RealtekRTL8125B 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth5.3**

* Wi-Fi 6E 6GHz may depend on every country€™s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS

  1. DisplayPort 1.4
  2. 2.5G LAN Port
  3. USB 3.2 Gen 2 10Gbps Type-A
  4. USB 3.2 Gen 1 5Gbps Type-A
  5. Wi-Fi / Bluetooth Antenna
  6. HD Audio Connectors
  7. Flash BIOS Button
  8. HDMI„ 2.1 Port
  9. USB 3.2 Gen 2×2 20Gbps Type-C
  10. Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows11 64-bit, Windows10 64-bit
BOX CONTENT
PCB Info mATX
243.84mmx243.84mm
Warranty 3 Years

Description

Specifications



Chipset AMD B650
CPU Supports AMD Ryzen„ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
€ 1DPC 1R Max speed up to 7600+ MHz
€ 1DPC 2R Max speed up to 6400+ MHz
€ 2DPC 1R Max speed up to 6400+ MHz
€ 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics 1x HDMI„
Support HDMITM2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot
€ Supports x16/x4 (For Ryzen„ 9000 and 7000 Series processors)
€ Supports x8/x4 (For Ryzen„ 7 8700G and Ryzen„ 5 8600G processors)
€ Supports x4/x4 (For Ryzen„ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio RealtekALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
€ The M2_2 slot will be unavailable when using Ryzen„ 5 8500G processor
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN RealtekRTL8125B 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth5.3**

* Wi-Fi 6E 6GHz may depend on every country€™s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS

  1. DisplayPort 1.4
  2. 2.5G LAN Port
  3. USB 3.2 Gen 2 10Gbps Type-A
  4. USB 3.2 Gen 1 5Gbps Type-A
  5. Wi-Fi / Bluetooth Antenna
  6. HD Audio Connectors
  7. Flash BIOS Button
  8. HDMI„ 2.1 Port
  9. USB 3.2 Gen 2×2 20Gbps Type-C
  10. Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows11 64-bit, Windows10 64-bit
BOX CONTENT
PCB Info mATX
243.84mmx243.84mm
Warranty 3 Years
