Specifications Category Details CPU AMD Socket AM4, supports: – Ryzen 5000 Series / 5000G Series – Ryzen 4000G Series – Ryzen 3000 Series / 3000G Series (Refer to “CPU Support List” for more info.) Chipset AMD B550 Memory – 4× DDR4 DIMM, up to 128GB – Sup
| Category | Details |
|---|---|
| CPU |
AMD Socket AM4, supports: – Ryzen 5000 Series / 5000G Series – Ryzen 4000G Series – Ryzen 3000 Series / 3000G Series (Refer to “CPU Support List” for more info.) |
| Chipset | AMD B550 |
| Memory |
– 4× DDR4 DIMM, up to 128GB – Supports DDR4: 4733(O.C.) to 2133 MHz – Dual channel architecture – Supports ECC/Non-ECC unbuffered DIMMs* – Supports XMP (ECC support varies by CPU) |
| Onboard Graphics |
Integrated Graphics Processor: – 1× DisplayPort (5120×2880@60Hz, DP1.4, HDCP 2.3, HDR) – 1× HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) – Max shared memory: 16GB |
| Audio |
– Realtek ALC1200 codec – High Definition Audio – 2/4/5.1/7.1-channel – Supports S/PDIF Out |
| LAN | Realtek 2.5GbE LAN (2.5G/1G/100M) |
| Wireless |
Intel Wi-Fi 6 AX200 – WiFi a/b/g/n/ac/ax – Dual-Band 2.4/5GHz – Bluetooth 5 – 160MHz, up to 2.4Gbps* *Actual speeds vary by environment |
| Expansion Slots |
– 1× PCIe x16 (CPU) Ryzen 5000/3000: PCIe 4.0 x16 Ryzen 5000G/4000G/3000G: PCIe 3.0 x16 – 1× PCIe x16 (Chipset): PCIe 3.0 x2 – 1× PCIe x16 (Chipset): PCIe 3.0 x1 – 1× PCIe x1 (Chipset): PCIe 3.0 x1 |
| Storage |
– 1× M.2 (CPU) 2242/2260/2280/22110 Ryzen 5000/3000: PCIe 4.0 x4/x2 & SATA Ryzen 5000G/4000G/3000G: PCIe 3.0 x4/x2 & SATA – 1× M.2 (Chipset) 2242/2260/2280/22110 PCIe 3.0 x4/x2 & SATA – 4× SATA 6Gb/s (RAID 0/1/10) |
| USB |
CPU: – Ryzen 5000/3000: 2× USB 3.2 Gen2 Type-A (red) rear – Ryzen 5000G/4000G/3000G: 2× USB 3.2 Gen1 (red) rear – 2× USB 3.2 Gen1 (rear) Chipset: |
| Internal I/O |
24-pin ATX power 8-pin ATX 12V power 2× M.2 slots 4× SATA 6Gb/s CPU fan Water cooling CPU fan 3× system fan RGB LED strip header 2× Addressable LED headers 2× RGB LED headers Front panel Audio header USB Type-C (Gen1) header USB 3.2 Gen1 header 2× USB 2.0 headers TPM header (2×6 pin) Clear CMOS jumper |

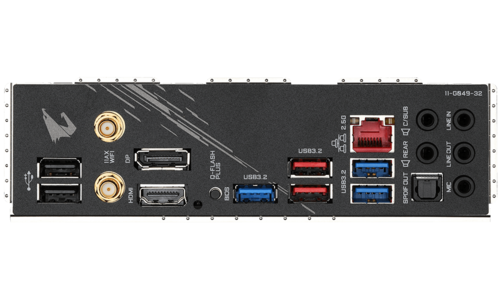

| Back Panel |
– 1× DisplayPort – 1× HDMI – 2× SMA antenna connectors – 2× USB 3.2 Gen2 / Gen1 (red)* *Gen2 only with Ryzen 5000/3000 – 3× USB 3.2 Gen1 – 2× USB 2.0 – 1× RJ-45 LAN – 1× Optical S/PDIF Out – 5× Audio jacks – Q-Flash Plus button |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring |
Voltage, temperature, fan speed, Water cooling flow detection, Overheating & fan fail warning, Fan speed control* |
| BIOS |
– 256 Mbit AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, – SMBIOS 2.7, ACPI 5.0 |
| Unique Features |
APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash Plus, Q-Flash |
| Bundled Software |
– Norton Internet Security (OEM) – LAN bandwidth management software |
| Operating System |
– Windows 11 64-bit – Windows 10 64-bit |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
| Category | Details |
|---|---|
| CPU |
AMD Socket AM4, supports: – Ryzen 5000 Series / 5000G Series – Ryzen 4000G Series – Ryzen 3000 Series / 3000G Series (Refer to “CPU Support List” for more info.) |
| Chipset | AMD B550 |
| Memory |
– 4× DDR4 DIMM, up to 128GB – Supports DDR4: 4733(O.C.) to 2133 MHz – Dual channel architecture – Supports ECC/Non-ECC unbuffered DIMMs* – Supports XMP (ECC support varies by CPU) |
| Onboard Graphics |
Integrated Graphics Processor: – 1× DisplayPort (5120×2880@60Hz, DP1.4, HDCP 2.3, HDR) – 1× HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) – Max shared memory: 16GB |
| Audio |
– Realtek ALC1200 codec – High Definition Audio – 2/4/5.1/7.1-channel – Supports S/PDIF Out |
| LAN | Realtek 2.5GbE LAN (2.5G/1G/100M) |
| Wireless |
Intel Wi-Fi 6 AX200 – WiFi a/b/g/n/ac/ax – Dual-Band 2.4/5GHz – Bluetooth 5 – 160MHz, up to 2.4Gbps* *Actual speeds vary by environment |
| Expansion Slots |
– 1× PCIe x16 (CPU) Ryzen 5000/3000: PCIe 4.0 x16 Ryzen 5000G/4000G/3000G: PCIe 3.0 x16 – 1× PCIe x16 (Chipset): PCIe 3.0 x2 – 1× PCIe x16 (Chipset): PCIe 3.0 x1 – 1× PCIe x1 (Chipset): PCIe 3.0 x1 |
| Storage |
– 1× M.2 (CPU) 2242/2260/2280/22110 Ryzen 5000/3000: PCIe 4.0 x4/x2 & SATA Ryzen 5000G/4000G/3000G: PCIe 3.0 x4/x2 & SATA – 1× M.2 (Chipset) 2242/2260/2280/22110 PCIe 3.0 x4/x2 & SATA – 4× SATA 6Gb/s (RAID 0/1/10) |
| USB |
CPU: – Ryzen 5000/3000: 2× USB 3.2 Gen2 Type-A (red) rear – Ryzen 5000G/4000G/3000G: 2× USB 3.2 Gen1 (red) rear – 2× USB 3.2 Gen1 (rear) Chipset: |
| Internal I/O |
24-pin ATX power 8-pin ATX 12V power 2× M.2 slots 4× SATA 6Gb/s CPU fan Water cooling CPU fan 3× system fan RGB LED strip header 2× Addressable LED headers 2× RGB LED headers Front panel Audio header USB Type-C (Gen1) header USB 3.2 Gen1 header 2× USB 2.0 headers TPM header (2×6 pin) Clear CMOS jumper |
| Back Panel |
– 1× DisplayPort – 1× HDMI – 2× SMA antenna connectors – 2× USB 3.2 Gen2 / Gen1 (red)* *Gen2 only with Ryzen 5000/3000 – 3× USB 3.2 Gen1 – 2× USB 2.0 – 1× RJ-45 LAN – 1× Optical S/PDIF Out – 5× Audio jacks – Q-Flash Plus button |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring |
Voltage, temperature, fan speed, Water cooling flow detection, Overheating & fan fail warning, Fan speed control* |
| BIOS |
– 256 Mbit AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, – SMBIOS 2.7, ACPI 5.0 |
| Unique Features |
APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash Plus, Q-Flash |
| Bundled Software |
– Norton Internet Security (OEM) – LAN bandwidth management software |
| Operating System |
– Windows 11 64-bit – Windows 10 64-bit |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
