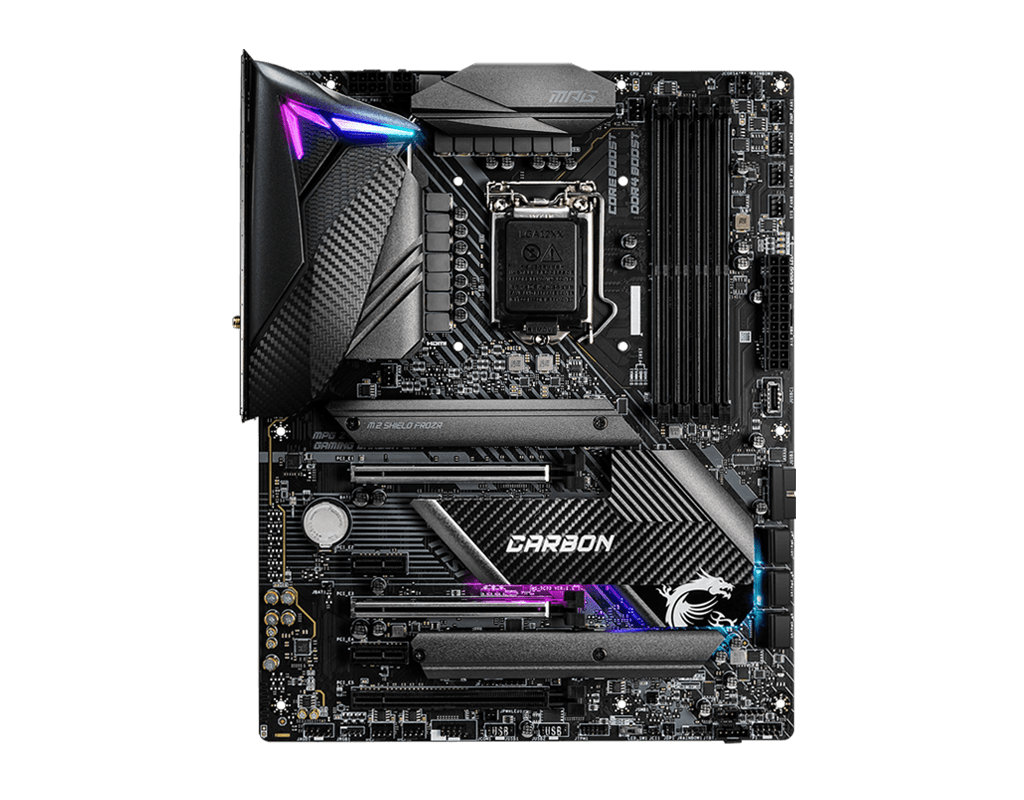

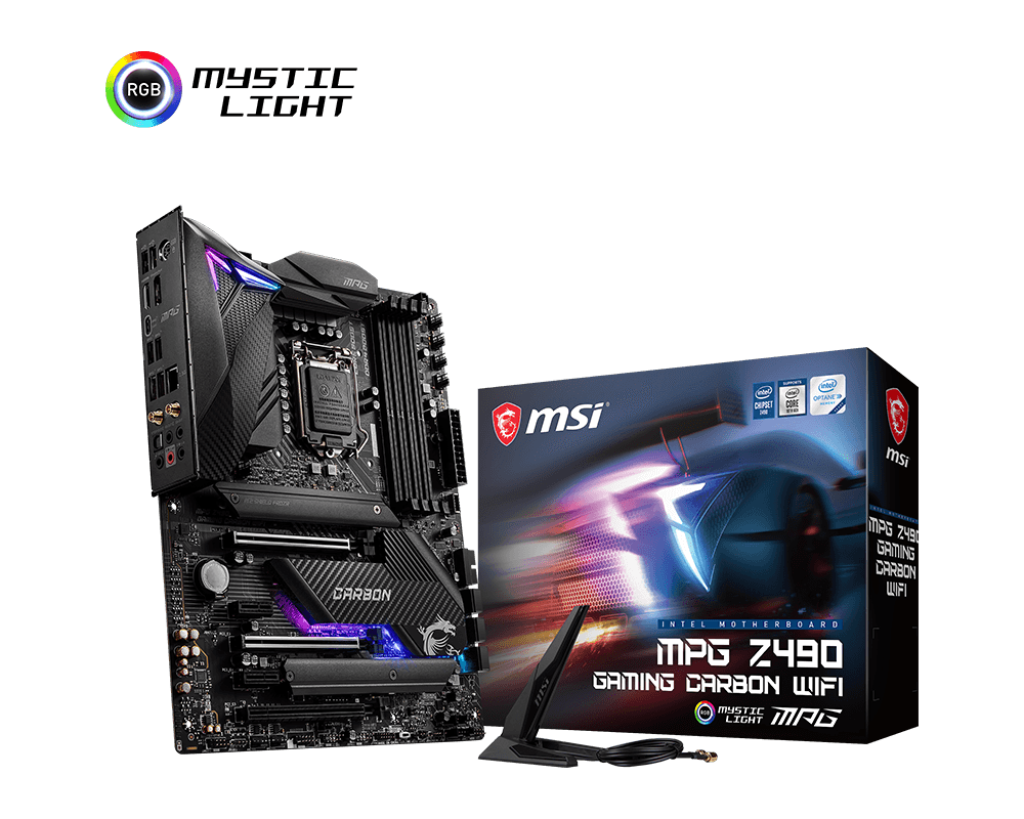

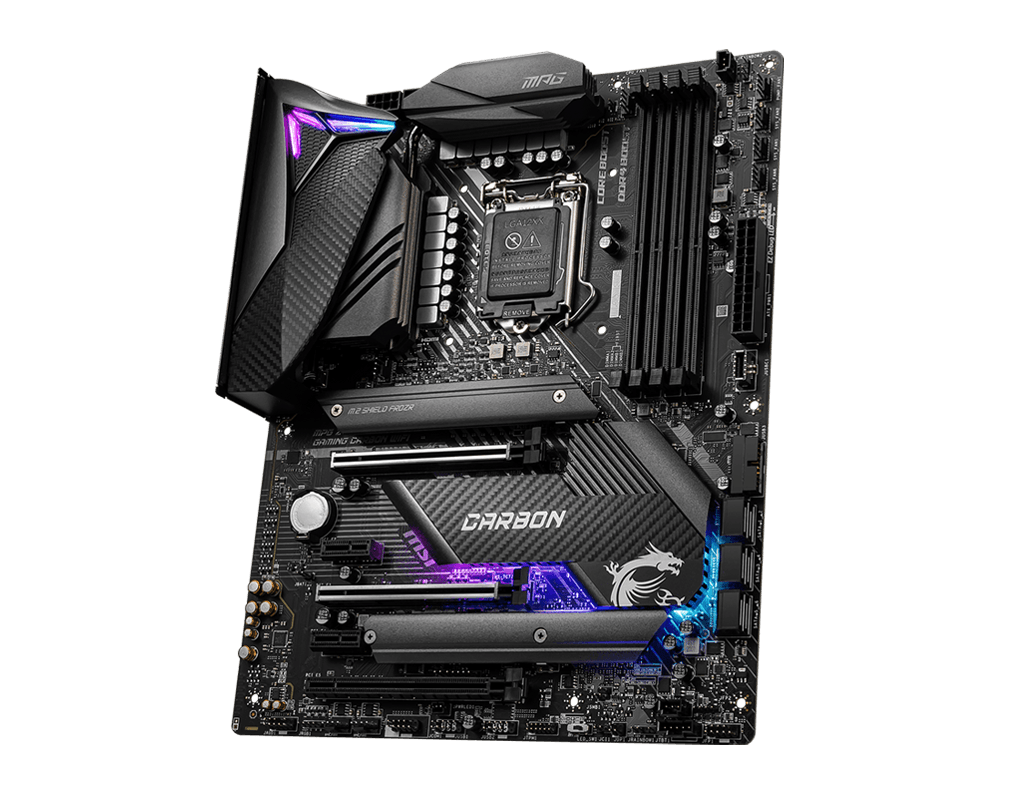

MSI Mpg Z490 Gaming Carbon Intel
MSI Mpg Z490 Gaming Carbon Intel - Image 2
MSI Mpg Z490 Gaming Carbon Intel - Image 3
MSI Mpg Z490 Gaming Carbon Intel - Image 4

MSI Mpg Z490 Gaming Carbon Intel

In Stock
SKU : 101344 Product Type: Brand:
₹20,250

Specifications Processor Supports 10thGen Intel†Core´ and Pentium†Gold / Celeron†processors for LGA1200 socket12 1. Please go to intel.com for compatibility information. 2. Onboard graphics output are disabled when using the F SKU processors. Chipset

In Stock
Add to wishlist Compare
In Stock

Additional information

Specifications



Processor Supports 10thGen Intel†Core´ and Pentium†Gold / Celeron†processors for LGA1200 socket12
1. Please go to intel.com for compatibility information.
2. Onboard graphics output are disabled when using the F SKU processors.
Chipset Intel†Z490 Chipset
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel† Extreme Memory Profile (XMP)
1. Please refer www.msi.com for more information on compatible memory
Expansion Slots
3x PCIe 3.0 x16 slots*, support x16/ x0/ x4or x8/ x8/ x4 mode
2x PCIe 3.0 x1 slots
Onboard Graphics
1x HDMI port, supports a maximum resolution of 4096×2160 @30Hz
1x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz
Maximum shared memory is 1GB
Multi-GPU
Supports 2-Way NVIDIA†SLI´Technology
Supports 3-Way AMD†CrossFire´ Technology
Storage
Intel†Z490 Chipset
6x SATA 6Gb/s ports1/2
2x M.2 slots (Key M)
Supports Intel† Sma
1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
3. Before using Intel†Optane´memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel†Z490 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
Intel†Z490 Chipset
5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector)
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia†ASM3241 Chipset
1x USB 3.2 Gen 2×2 20Gbps port on the back panel
Audio
Realtek†ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN 1x Realtek†RTL8125B 2.5Gbps LAN controller
WiFi & Bluetooth
Intel†AX201
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11ac
WiFi 6 pre-certified
Supports Bluetooth† 5.1, FIPS, FISMA
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector
1x Serial port connector
1xTPM module connector
1x TBT connector*
1x RTD3 connector
1x Clear CMOS jumper
Back panel ports
1. PS/2 Combo Port
2. DisplayPort
3. USB 3.2 Gen 2 10Gbps (Type-A)
4. LAN Port
5. HD Audio Connectors
6. USB 2.0
7. HDMI Port
8. USB 3.2 Gen 2×2 20Gbps (Type-C)
9. USB 3.2 Gen 2 10Gbps (Type-A)
10. Wi-Fi / Bluetooth
11. Optical S/PDIF OUT
Dimensions
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty 3 Years

Description

Specifications



Processor Supports 10thGen Intel†Core´ and Pentium†Gold / Celeron†processors for LGA1200 socket12
1. Please go to intel.com for compatibility information.
2. Onboard graphics output are disabled when using the F SKU processors.
Chipset Intel†Z490 Chipset
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel† Extreme Memory Profile (XMP)
1. Please refer www.msi.com for more information on compatible memory
Expansion Slots
3x PCIe 3.0 x16 slots*, support x16/ x0/ x4or x8/ x8/ x4 mode
2x PCIe 3.0 x1 slots
Onboard Graphics
1x HDMI port, supports a maximum resolution of 4096×2160 @30Hz
1x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz
Maximum shared memory is 1GB
Multi-GPU
Supports 2-Way NVIDIA†SLI´Technology
Supports 3-Way AMD†CrossFire´ Technology
Storage
Intel†Z490 Chipset
6x SATA 6Gb/s ports1/2
2x M.2 slots (Key M)
Supports Intel† Sma
1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
3. Before using Intel†Optane´memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel†Z490 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
Intel†Z490 Chipset
5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector)
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia†ASM3241 Chipset
1x USB 3.2 Gen 2×2 20Gbps port on the back panel
Audio
Realtek†ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN 1x Realtek†RTL8125B 2.5Gbps LAN controller
WiFi & Bluetooth
Intel†AX201
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11ac
WiFi 6 pre-certified
Supports Bluetooth† 5.1, FIPS, FISMA
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector
1x Serial port connector
1xTPM module connector
1x TBT connector*
1x RTD3 connector
1x Clear CMOS jumper
Back panel ports
1. PS/2 Combo Port
2. DisplayPort
3. USB 3.2 Gen 2 10Gbps (Type-A)
4. LAN Port
5. HD Audio Connectors
6. USB 2.0
7. HDMI Port
8. USB 3.2 Gen 2×2 20Gbps (Type-C)
9. USB 3.2 Gen 2 10Gbps (Type-A)
10. Wi-Fi / Bluetooth
11. Optical S/PDIF OUT
Dimensions
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty 3 Years
