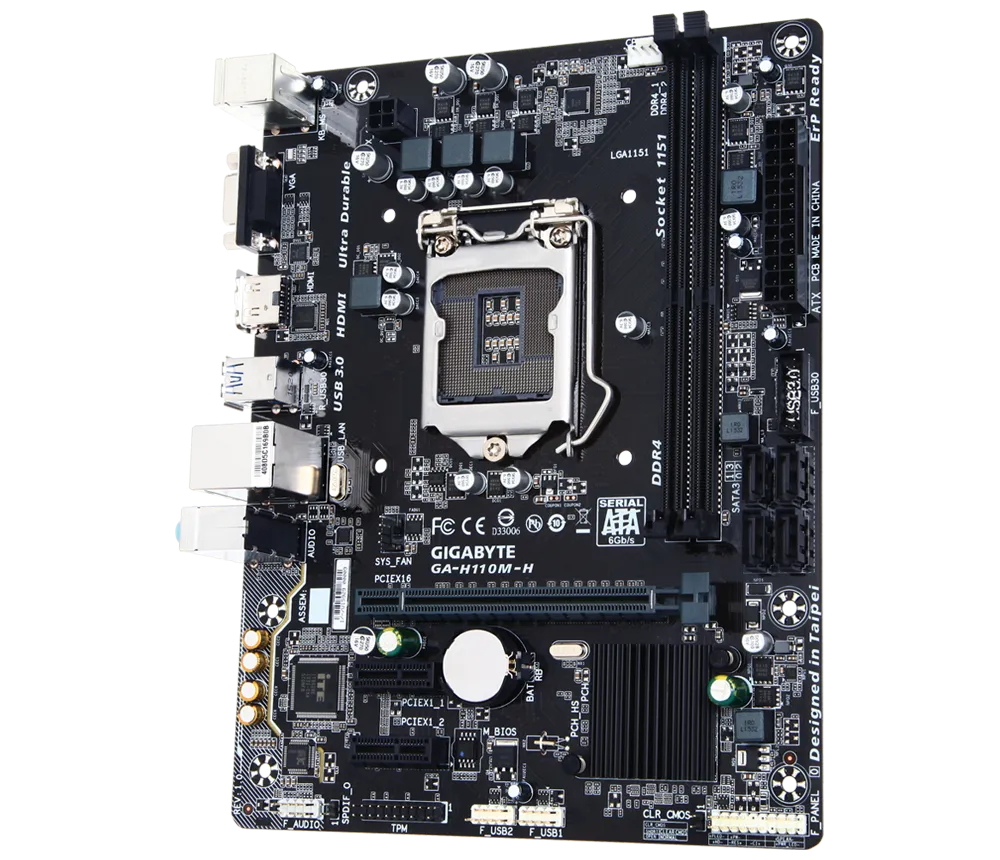

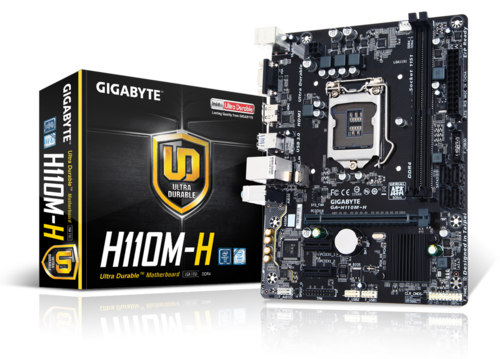

| CPU |
Support for 7th/6thGeneration IntelCore´ i7 processors/IntelCore´ i5 processors/IntelCore´ i3 processors/IntelPentiumprocessors/IntelCeleronprocessors in the LGA1151 package |
|
* For 7thGeneration IntelCore´ processors support need to update the latest BIOS. |
|
L3 cache varies with CPU |
| Chipset |
1. IntelH110 Express Chipset |
| Memory |
1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
|
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. |
|
2. Dual channel memory architecture |
|
3. Support for DDR4 2400/2133 MHz memory modules |
|
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Onboard Graphics |
1. Integrated Graphics Processor – IntelHD Graphics support: |
|
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz |
|
1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz |
|
* Support for HDMI 1.4 version. |
|
2. Maximum shared memory of 1024 MB |
| Audio |
1. RealtekAudio CODEC |
|
2. High Definition Audio |
|
3. 2/4/5.1/7.1-channel |
|
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
|
4. Support for S/PDIF Out |
| LAN |
1. RealtekGbE LAN chip (1 Gbit/100 Mbit) |
| Expansion Slots |
1. 1 x PCI Express x16 slot, running at x16 |
|
(The PCI Express x16 slot conform to PCI Express 3.0 standard.) |
|
2. 2 x PCI Express x1 slots |
|
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
|
| Storage Interface |
Chipset: |
|
1. 4 x SATA 6Gb/s connectors |
| USB |
Chipset: |
|
1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
|
2. 1 x 4-pin ATX 12V power connector |
|
3. 4 x SATA 6Gb/s connectors |
|
4. 1 x CPU fan header |
|
5. 1 x system fan header |
|
6. 1 x front panel header |
|
7. 1 x front panel audio header |
|
8. 1 x S/PDIF Out header |
|
9. 1 x USB 3.0/2.0 header |
|
10. 2 x USB 2.0/1.1 headers |
|
11. 1 x Trusted Platform Module (TPM) header |
|
12. 1 x Clear CMOS jumper |
| Back Panel Connectors |
1. x PS/2 mouse port |
|
2. 1 x PS/2 Keyboard port |
|
3. 1 x D-Sub port |
|
4. 1 x HDMI port |
|
5. 2 x USB 3.0/2.0 ports |
|
6. 2 x USB 2.0/1.1 ports |
|
7. 1 x RJ-45 port |
|
8. 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller |
1. iTEI/O Controller Chip |
| H/W Monitoring |
1. System voltage detection |
|
2. CPU/System temperature detection |
|
3. CPU/System fan speed detection |
|
4. CPU/System overheating warning |
|
5. CPU/System fan fail warning |
|
6. CPU/System fan speed control |
|
* Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS |
1. 1 x 64 Mbit flash |
|
2. Use of licensed AMI UEFI BIOS |
|
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
1. Support for APP Center |
|
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. |
|
3D OSD |
|
@BIOS |
|
AutoGreen |
|
Cloud Station |
|
EasyTune |
|
Fast Boot |
|
Smart TimeLock |
|
Smart Keyboard |
|
Smart Backup |
|
System Information Viewer |
|
USB Blocker |
|
2. Support for Q-Flash |
|
3. Support for Smart Switch |
|
4. Support for Xpress Install |
| Bundled Software |
1. NortonInternet Security (OEM version) |
|
2. cFosSpeed |
| Operating System |
1. Windows10 64-bit (for 7thGeneration IntelProcessors) |
|
2. Windows10 64-bit / Windows8.1 64-bit / Windows7 32-bit / 64-bits (for 6thGeneration IntelProcessors) |
|
* Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7 |
| Form Factor |
1. Micro ATX Form Factor; 22.6cm x 17.4cm |
