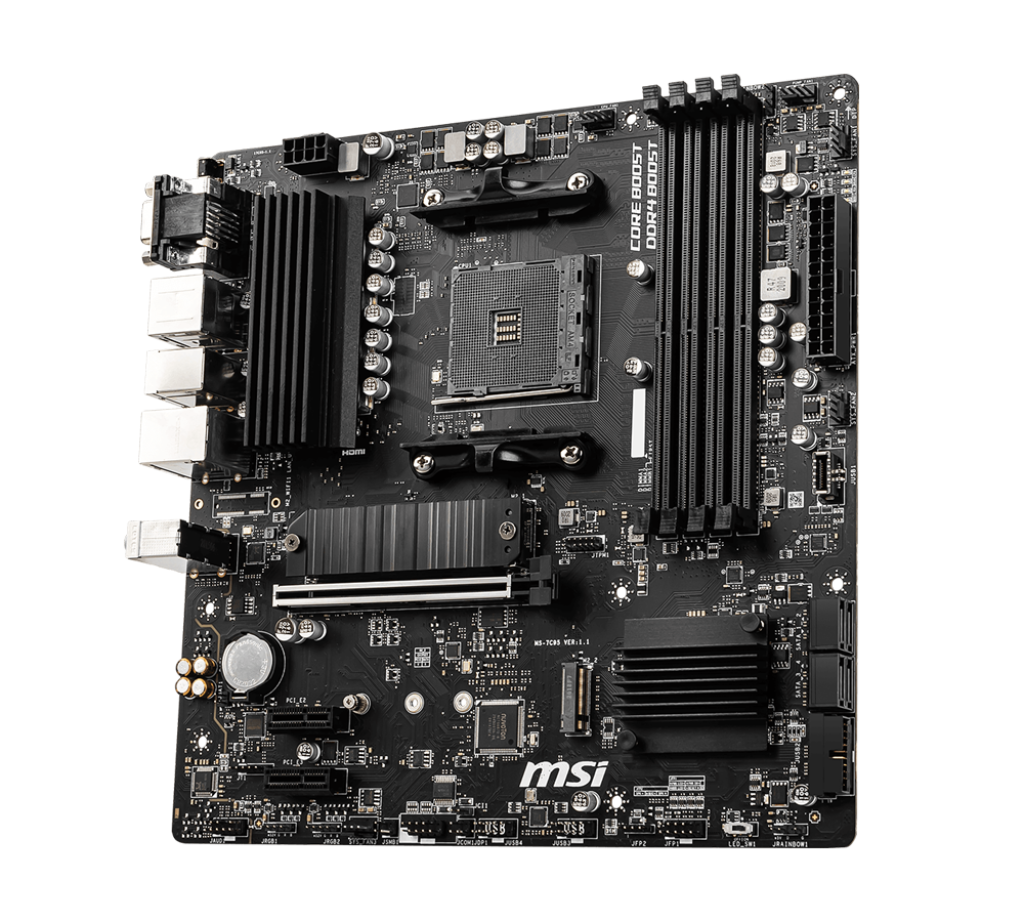

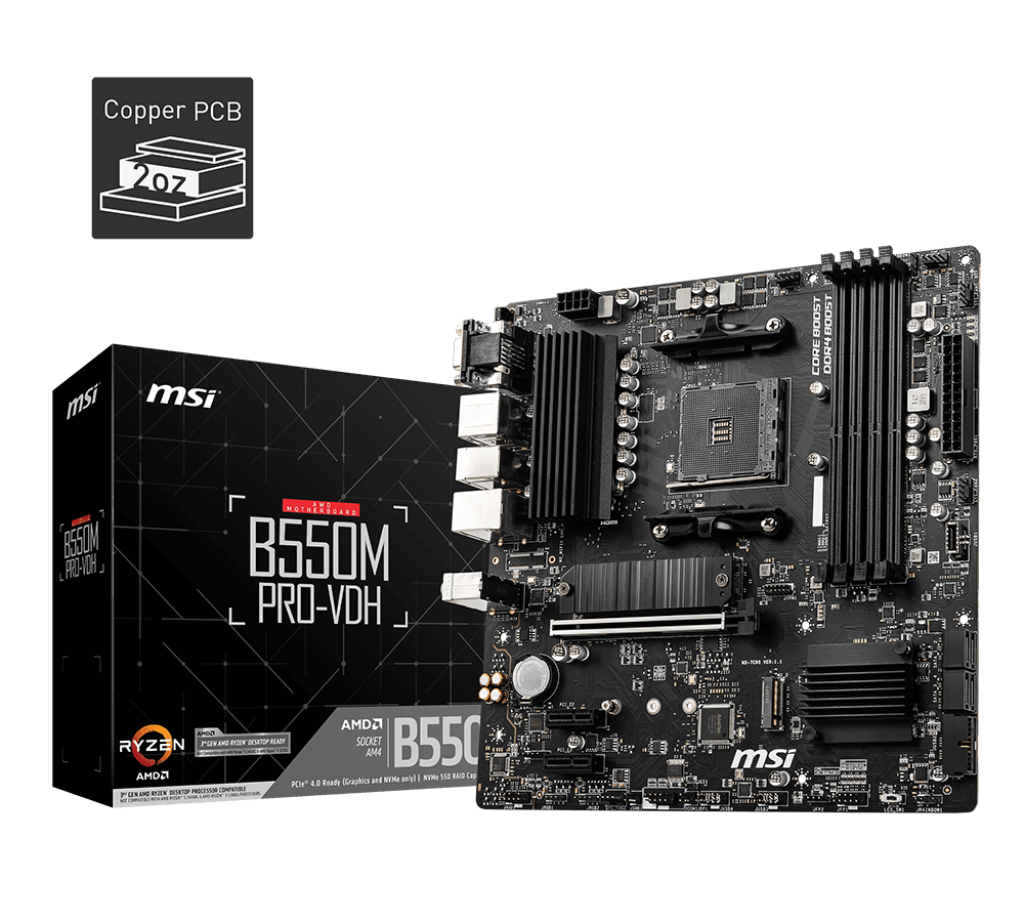

MSI B550M Pro Vdh Amd Am4
MSI B550M Pro Vdh Amd Am4 - Image 2
MSI B550M Pro Vdh Amd Am4 - Image 3
MSI B550M Pro Vdh Amd Am4 - Image 4

MSI B550M Pro Vdh Amd Am4

In Stock
SKU : 102704 Product Type: Brand:
₹8,732

Product Details: Powered by 3rd generation AMD Ryzen 9, Ryzen7, Ryzen 5 AM4 to maximize connectivity and speed with lightning M.2, PCIe 4.0, USB 3.2 Gen1, and up to 128GB of DDR4 (4400MHz). Core Boost technology combines optimized power circuit layouts an

In Stock
Add to wishlist Compare
In Stock

Additional information

Product Details:

  • Powered by 3rd generation AMD Ryzen 9, Ryzen7, Ryzen 5 AM4 to maximize connectivity and speed with lightning M.2, PCIe 4.0, USB 3.2 Gen1, and up to 128GB of DDR4 (4400MHz).
  • Core Boost technology combines optimized power circuit layouts and digital power design which allows for precise and steady current delivery to the CPU.
  • AUDIO BOOST rewards your ears with the studio-grade sound quality for the most immersive gaming experience.
  • With 3rd Gen Ryzen processors, this motherboard features the latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and allow for increased storage capacity at maximum speed.
  • Addressable LED Ready with Mystic Light Extension provides a JRAINBOW pin-header for the complete function to connect to addressable RGB strips and control the RGB light all around the system.
  • Flash BIOS Button allows users to simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory, or graphics card.
  • Enhanced Thermal Solution includes 7W/mK level thermal & choke pad with 2oz thickened copper PCB to ensure the best performance for gamers.


Specifications



CPU (MAX SUPPORT)
Support for 3rd Gen AMD† Ryzen´ processors and future AMD† Ryzen´ processors with BIOS update
SOCKET
AMD Socket AM4
CHIPSET
AMD† B550 Chipset
DDR4 MEMORY
1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400 + Mhz by JEDEC and A-XMP OC MODE
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
1
PCI-E GEN
Gen4 / Gen3
PCI-E X1
2
SATAIII
4
M.2 SLOT
2
RAID
0/1/10
TPM (HEADER)
1
LAN
1x Realtek† RTL8111HN Gigabit LAN
WIFI & BLUETOOTH
Y
USB 3.2 PORTS (FRONT)
1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)
4(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
2
SERIAL PORTS(FRONT)
1
AUDIO PORTS (REAR)
Realtek† ALC892/ALC897 Codec
DISPLAYPORT
1
VGA
1
HDMI
1
DIRECTX
12
FORM FACTOR
MATX
OPERATING SYSTEM
Support for Windows† 10 64-bit



Warranty: 3 years

Description

Product Details:

  • Powered by 3rd generation AMD Ryzen 9, Ryzen7, Ryzen 5 AM4 to maximize connectivity and speed with lightning M.2, PCIe 4.0, USB 3.2 Gen1, and up to 128GB of DDR4 (4400MHz).
  • Core Boost technology combines optimized power circuit layouts and digital power design which allows for precise and steady current delivery to the CPU.
  • AUDIO BOOST rewards your ears with the studio-grade sound quality for the most immersive gaming experience.
  • With 3rd Gen Ryzen processors, this motherboard features the latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and allow for increased storage capacity at maximum speed.
  • Addressable LED Ready with Mystic Light Extension provides a JRAINBOW pin-header for the complete function to connect to addressable RGB strips and control the RGB light all around the system.
  • Flash BIOS Button allows users to simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory, or graphics card.
  • Enhanced Thermal Solution includes 7W/mK level thermal & choke pad with 2oz thickened copper PCB to ensure the best performance for gamers.


Specifications



CPU (MAX SUPPORT)
Support for 3rd Gen AMD† Ryzen´ processors and future AMD† Ryzen´ processors with BIOS update
SOCKET
AMD Socket AM4
CHIPSET
AMD† B550 Chipset
DDR4 MEMORY
1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400 + Mhz by JEDEC and A-XMP OC MODE
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
1
PCI-E GEN
Gen4 / Gen3
PCI-E X1
2
SATAIII
4
M.2 SLOT
2
RAID
0/1/10
TPM (HEADER)
1
LAN
1x Realtek† RTL8111HN Gigabit LAN
WIFI & BLUETOOTH
Y
USB 3.2 PORTS (FRONT)
1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)
4(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
2
SERIAL PORTS(FRONT)
1
AUDIO PORTS (REAR)
Realtek† ALC892/ALC897 Codec
DISPLAYPORT
1
VGA
1
HDMI
1
DIRECTX
12
FORM FACTOR
MATX
OPERATING SYSTEM
Support for Windows† 10 64-bit



Warranty: 3 years
