Specifications: Chipset Intel B360 CPU SUPPORT 9th Gen Intel Core i9 LGA 1151 Processor9th Gen Intel Core i7 LGA 1151 Processor9th Gen Intel Core i5 LGA 1151 Processor9th Gen Intel Core i3 LGA 1151 Processor8th Gen Intel Core i7 LGA 1151 Processor8th
| Chipset | Intel B360 |
| CPU SUPPORT | 9th Gen Intel Core i9 LGA 1151 Processor 9th Gen Intel Core i7 LGA 1151 Processor 9th Gen Intel Core i5 LGA 1151 Processor 9th Gen Intel Core i3 LGA 1151 Processor 8th Gen Intel Core i7 LGA 1151 Processor 8th Gen Intel Core i5 LGA 1151 Processor 8th Gen Intel Core i3 LGA 1151 Processor 8th Gen Intel Pentium LGA 1151 Processor 8th Gen Intel Celeron LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt 8th *Generation Intel Core Processor Family only support 300-Series. |
| MEMORY | Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connectors (6GB/s) * Specifications vary by CPU types1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD * Specifications vary by CPU types |
| LAN | Realtek RTL8111H – 10/100/1000Mb/s Controller Support Super LAN Surge Protection |
| AUDIO CODEC | Realtek ALC887 8-Channel HD Audio |
| USB | 6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header) 6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot * Specifications vary by CPU types11 x PCI-E 3.0 x1 Slots * Specifications vary by CPU types*Maximum VGA cards mining support are depending on VGA Driver or mining software. * Specifications vary by CPU types |

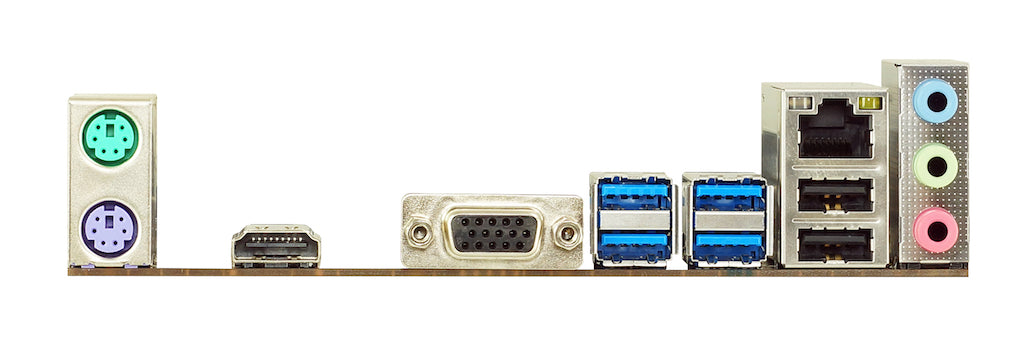

| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB 3.1 Gen1 Ports 2 x USB 2.0 Ports 1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz 1 x LAN Port 3 x Audio Jacks |
| INTERNAL I/O | 1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 4 x SATA III Connectors (6Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 2 x System Fan Connector 1 x 8-Pin Power Connector 2 x 6-Pin PCIe Power Connector 2 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(64bit) / 11(64bit) »Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| FEATURES | PCI-E Slot Detection BIOS Boot Screen |
| Chipset | Intel B360 |
| CPU SUPPORT | 9th Gen Intel Core i9 LGA 1151 Processor 9th Gen Intel Core i7 LGA 1151 Processor 9th Gen Intel Core i5 LGA 1151 Processor 9th Gen Intel Core i3 LGA 1151 Processor 8th Gen Intel Core i7 LGA 1151 Processor 8th Gen Intel Core i5 LGA 1151 Processor 8th Gen Intel Core i3 LGA 1151 Processor 8th Gen Intel Pentium LGA 1151 Processor 8th Gen Intel Celeron LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt 8th *Generation Intel Core Processor Family only support 300-Series. |
| MEMORY | Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connectors (6GB/s) * Specifications vary by CPU types1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD * Specifications vary by CPU types |
| LAN | Realtek RTL8111H – 10/100/1000Mb/s Controller Support Super LAN Surge Protection |
| AUDIO CODEC | Realtek ALC887 8-Channel HD Audio |
| USB | 6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header) 6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot * Specifications vary by CPU types11 x PCI-E 3.0 x1 Slots * Specifications vary by CPU types*Maximum VGA cards mining support are depending on VGA Driver or mining software. * Specifications vary by CPU types |
| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB 3.1 Gen1 Ports 2 x USB 2.0 Ports 1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz 1 x LAN Port 3 x Audio Jacks |
| INTERNAL I/O | 1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 4 x SATA III Connectors (6Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 2 x System Fan Connector 1 x 8-Pin Power Connector 2 x 6-Pin PCIe Power Connector 2 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(64bit) / 11(64bit) »Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| FEATURES | PCI-E Slot Detection BIOS Boot Screen |
