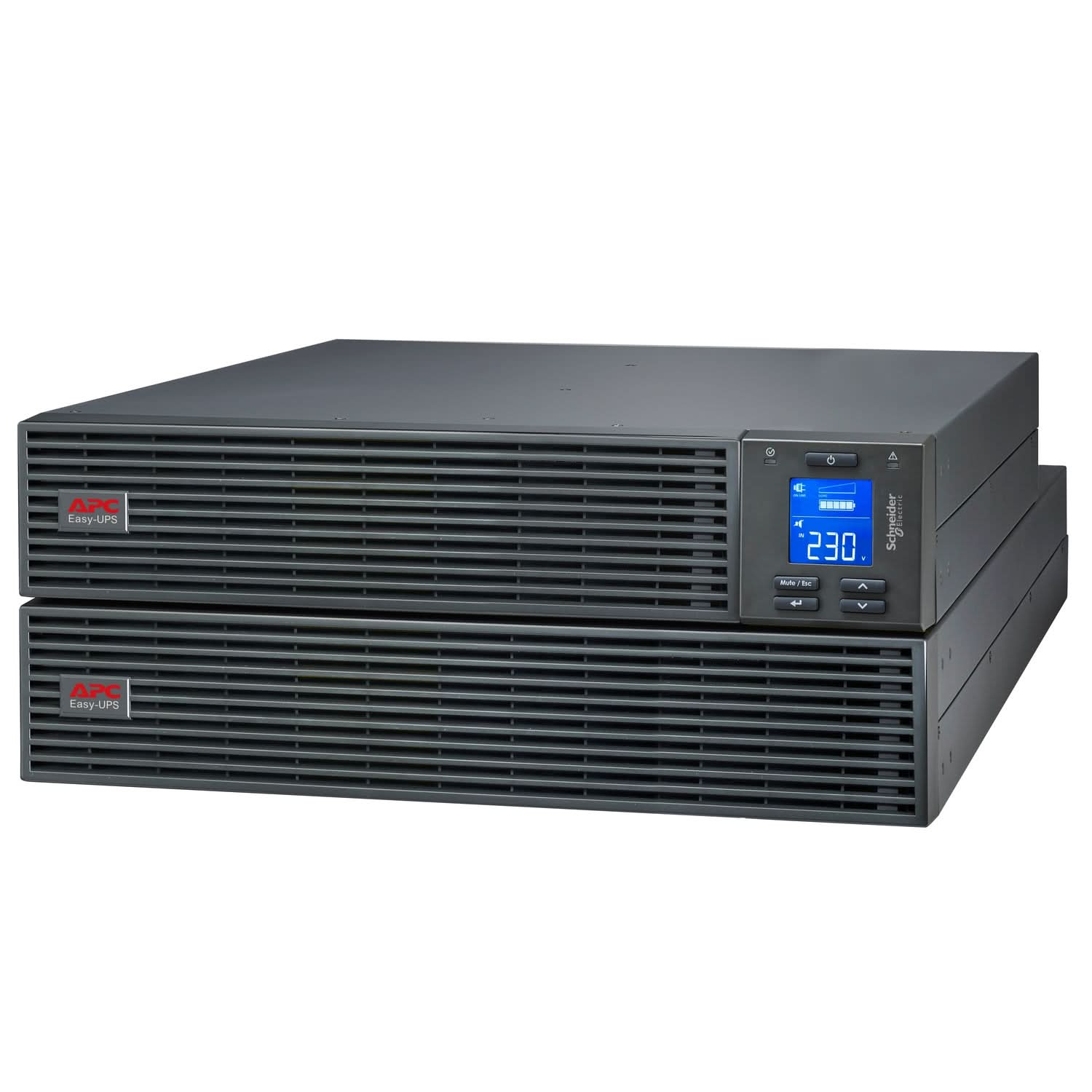

Apc Easy Ups On-Line Srv3Kril-In – 3000Va/ 2400W
₹83,338
About the item High-Performance Double-Conversion: 3000VA/2400W On-Line UPS delivers continuous, pure sine wave power, essential for critical IT systems, small data centers, healthcare, and industrial applications. Scalable Extended Runtime: Designed for
Description
About the item
- High-Performance Double-Conversion: 3000VA/2400W On-Line UPS delivers continuous, pure sine wave power, essential for critical IT systems, small data centers, healthcare, and industrial applications.
- Scalable Extended Runtime: Designed for long backup needs, supporting external battery packs (SRV72RBP-9A) for up to 29 minutes at half load and 10 minutes at full load with one pack, offering flexible runtime expansion.
- Built for Unstable Power: Features a wide input voltage range (160-280V full load, 110-280V half load), ensuring stable operation even in challenging Indian electrical environments.
- Versatile Output & Rackmount: Provides 3x 6A Outlets + Hardwire output and a Rackmount 4U form factor (no rail kit included) for flexible integration into server racks.
- Intuitive LCD & Smart Management: Multi-function LCD display, LED indicators, and audible alarms provide real-time status. Includes Intelligent Slot for optional network management cards for remote monitoring.
- Energy Efficient Operation: Achieves up to 90% efficiency in double-conversion mode and 95% in ECO mode, reducing energy consumption and operational costs.
- Enhanced Safety & Compatibility: Features Emergency Power Off (EPO) support and is generator compatible for robust power continuity during outages.
- BIS Certified & 2-Year Warranty: BIS certified for quality assurance and backed by a comprehensive manufacturer’s 2-year repair or replace warranty for dependable performance.
Key Features:
-
Power Capacity: 3000 VA / 2400 W €“ ideal for IT, telecom, and industrial applications.
-
Topology: True double-conversion online €“ ensures clean, uninterrupted power.
-
Input Voltage Range: 160€“280V (full load), 110€“280V (half load) €“ suitable for Indian power conditions.
-
Output Voltage: 230V (user-selectable 220V/240V) with pure sine wave output.
-
Extended Runtime: Up to 29 minutes at half load and 10 minutes at full load with one external battery pack.
-
Battery Support: Compatible with SRV72RBP-9A external battery packs; scalable runtime.
-
Recharge Time: 4 hours to 90% capacity.
-
Efficiency: Up to 90% in double-conversion mode, 95% in ECO mode €“ reduces energy and cooling costs.
-
Connectivity: USB, RS-232, and intelligent slot for optional network management.
-
Display: Multi-function LCD with LED indicators for real-time system status.
-
Safety: Emergency Power Off (EPO) with NC contacts.
-
Design: Rack-mountable 5U form factor; dimensions (power module): 438 x 86 x 615 mm; weight: 10.1 kg.
-
Environment: Operates at 0€“40°C, <60 dBA noise level, IP20 protection.
-
Certifications & Warranty: BIS certified; 2-year repair or replace warranty.
Specifications
| Category | Details |
|---|---|
| Presentation | High quality, Double-conversion On-line UPS for essential power protection |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Easy UPS On-Line |
| Rated Power (W / VA) | 2400 W / 3000 VA |
| Configurable Output Voltage | 220 V, 230 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Input Voltage Limits | 110€“280 V (half load), 160€“280 V (full load) |
| Input Frequency | 40€“70 Hz auto sensing |
| Input Connector Type | Hard wire 3-wire (1P + N + E) |
| Output Connector Types | 3— India 3-pin 6A, 1— Hard wire (1P + N + E) |
| UPS Type | Double Conversion Online |
| Waveform | Pure Sine Wave |
| Bypass Type | Internal (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | ‰¤ 3% |
| Output Frequency | 50/60 Hz ±3 Hz sync to mains |
| Efficiency (Full Load) | 90% |
| Run Time @ Full Load (2400W) | 11 min 1 sec |
| Battery Type | Lead-acid (Internal + External support) |
| Battery Voltage | 72 V |
| Battery Recharge Time | 5.5 hours |
| Battery Life | 3€“5 years |
| Battery Charger Power | 350 W rated |
| Extended Runtime Support | Yes |
| Battery Slots (Filled / Free) | 1 / 0 |
| Included Equipment | USB cable, RS-232 cable, rack mounts, external battery pack, battery cable, user manual |
| Mounting Mode | Rack-mounted |
| Mounting Units | 4U |
| Mounting Location | Front |
| Mounting Position | Horizontal |
| Mounting Preference | Lower |
| Color | Black (RAL 7010) |
| USB Compatible | Yes |
| Dimensions (H — W — D) | 17.2 — 43.8 — 63.2 cm |
| Product Weight | 50.1 kg |
| Control Panel | Multifunction LCD status and control console |
| Alarm Types | On battery, low battery, overload (distinct tones) |
| Surge Energy Rating | 600 J |
| Acoustic Noise Level | 50 dBA |
| Heat Dissipation | 910 BTU/h |
| IP Rating | IP20 |
| Operating Temperature | 0€“40 °C |
| Storage Temperature | -20€“60 °C |
| Operating Altitude | 0€“3000 m |
| Storage Altitude | 0€“15000 m |
| Relative Humidity (Op/Storage) | 0€“95% non-condensing |
| Package Dimensions (H—W—L) | 48 — 76 — 60 cm |
| Package Weight | 58.7 kg |
| Warranty | 2 Years Repair or Replace |
