Overview Specifications Description Display Size (in.): 16 Viewable Area (in.): 15.6 Panel Type: IPS Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 800:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brigh
| Description | |
| Display Size (in.): | 16 |
| Viewable Area (in.): | 15.6 |
| Panel Type: | IPS Technology |
| Resolution: | 1920 x 1080 |
| Resolution Type: | FHD (Full HD) |
| Static Contrast Ratio: | 800:1 (typ) |
| Dynamic Contrast Ratio: | 50M:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m² (typ) |
| Colors: | 16.2M |
| Color Space Support: | 8 bit (6 bit + FRC) |
| Aspect Ratio: | 16:09 |
| Response Time (Typical GTG): | 7ms |
| Viewing Angles: | 170º horizontal, 170º vertical |
| Backlight Life (Hours): | 15000 Hrs (Min) |
| Curvature: | Flat |
| Refresh Rate (Hz): | 60 |
| Low Blue Light: | Software solution |
| Color Gamut: | NTSC: 45% size (Typ) sRGB: 64% size (Typ) |
| Pixel Pitch: | 0.179 mm (H) x 0.179 mm (V) |
| Surface Treatment: | Anti-Glare, Hard Coating (3H) |
| COMPATIBILITY | |
| PC Resolution (max): | 1920×1080 |
| Mac® Resolution (max): | 1920×1080 |
| PC Operating System: | Windows 10/11 certified; macOS tested |
| Mac® Resolution (min): | 1920×1080 |
| CONNECTOR | |
| USB 3.2 Type C DisplayPort Alt mode only : | 1 (60W power charger) |
| 3.5mm Audio Out: | 1 |
| Mini HDMI: | 1 |
| Power in: | USB Type C (power only) |
| AUDIO | |
| Internal Speakers: | 0.8Watts x2 |
| POWER | |
| Eco Mode (Conserve): | 5.1W |
| Eco Mode (optimized): | 6W |
| Consumption (typical): | 7W |
| Consumption (max): | 7.3W |
| Voltage: | DC 5V/9V/12V/15V/20V |
| Stand-by: | 0.3W |
| Power Supply: | External (Optional) |
| ADDITIONAL HARDWARE | |
| Kensington Lock Slot: | 1 |
| CONTROLS | |
| Physical Controls: | Up, Right, Down, Left, Power |
| On Screen Display: | Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| OPERATING CONDITIONS | |
| Temperature: | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): | 20% to 90% |
| INPUT SIGNAL | |
| Frequency Horizontal: | mini HDMI (v1.4): 15 ~ 82KHz, Type C: 24 ~ 82KHz |
| Frequency Vertical: | mini HDMI (v1.4): 50 ~ 75Hz, Type C: 50 ~ 75Hz |
| VIDEO INPUT | |
| Digital Sync: | TMDS – mini HDMI (v1.4), Micro-Packet – Type C |
| ERGONOMICS | |
| Tilt (Forward/Back): | 30º / 53º |
| WEIGHT (IMPERIAL) | |
| Net (lbs): | 1.5 |
| Net Without Stand (lbs): | 1.5 |
| Gross (lbs): | 3.7 |
| WEIGHT (METRIC) | |
| Net (kg): | 0.7 |
| Net Without Stand (kg): | 0.7 |
| Gross (kg): | 1.7 |
| DIMENSIONS (IMPERIAL) (WXHXD) | |
| Packaging (in.): | 17.1 x 15.4 x 3.5 |

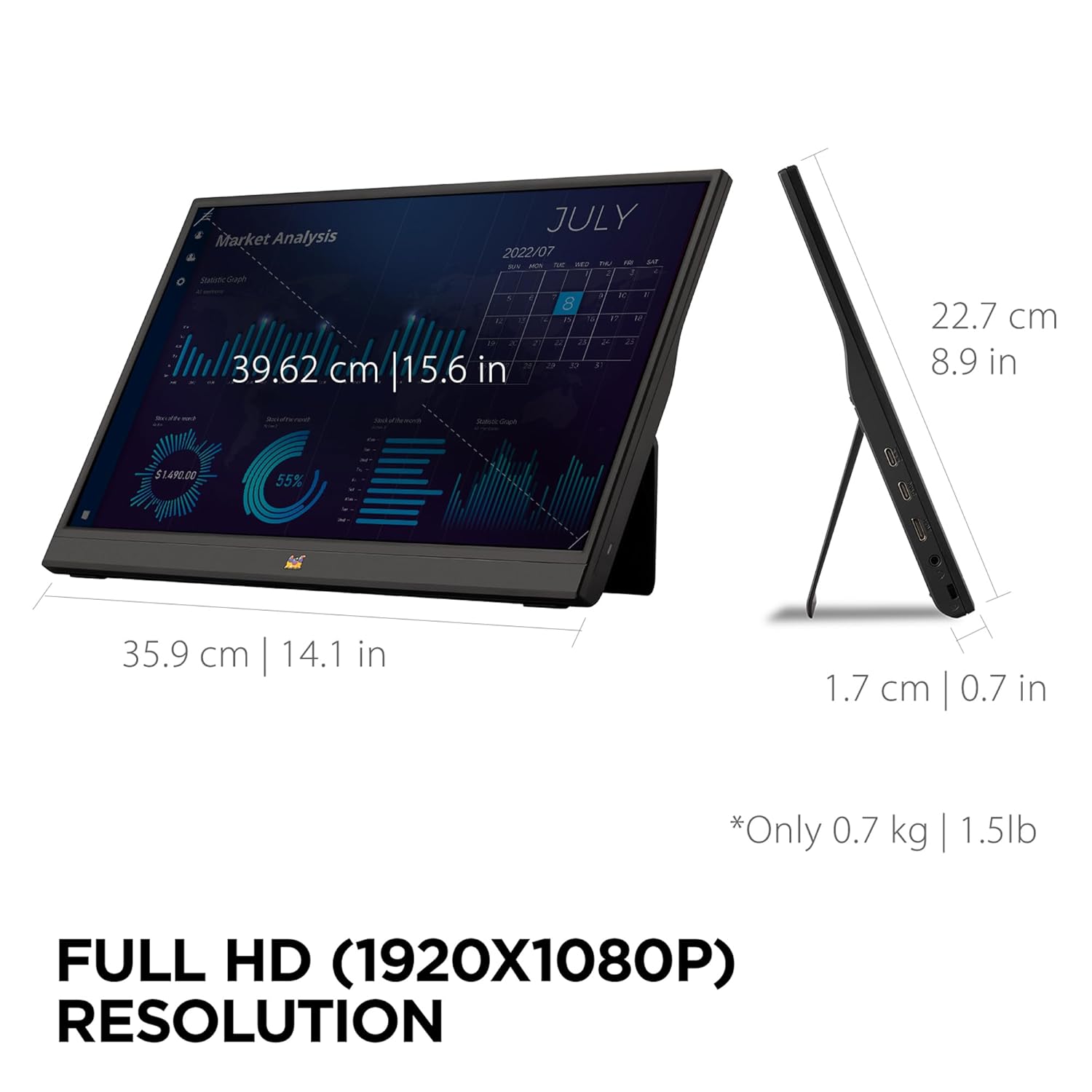

| Physical (in.): | 14.1 x 8.9 x 0.7 |
| Physical Without Stand (in.): | 14.1 x 8.9 x 0.7 |
| DIMENSIONS (METRIC) (WXHXD) | |
| Packaging (mm): | 434 x 391 x 88 |
| Physical (mm): | 359 x 227 x 17 |
| Physical Without Stand (mm): | 359 x 227 x 17 |
| GENERAL | |
| Regulations: | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NRCan, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, BIS |
| PACKAGE CONTENTS: | VA1655 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, Sleeve case x1 |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Warranty: | *Warranty offered may differ from market to market |
| Power Management: | Energy Star standards, EPEAT |
| Description | |
| Display Size (in.): | 16 |
| Viewable Area (in.): | 15.6 |
| Panel Type: | IPS Technology |
| Resolution: | 1920 x 1080 |
| Resolution Type: | FHD (Full HD) |
| Static Contrast Ratio: | 800:1 (typ) |
| Dynamic Contrast Ratio: | 50M:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m² (typ) |
| Colors: | 16.2M |
| Color Space Support: | 8 bit (6 bit + FRC) |
| Aspect Ratio: | 16:09 |
| Response Time (Typical GTG): | 7ms |
| Viewing Angles: | 170º horizontal, 170º vertical |
| Backlight Life (Hours): | 15000 Hrs (Min) |
| Curvature: | Flat |
| Refresh Rate (Hz): | 60 |
| Low Blue Light: | Software solution |
| Color Gamut: | NTSC: 45% size (Typ) sRGB: 64% size (Typ) |
| Pixel Pitch: | 0.179 mm (H) x 0.179 mm (V) |
| Surface Treatment: | Anti-Glare, Hard Coating (3H) |
| COMPATIBILITY | |
| PC Resolution (max): | 1920×1080 |
| Mac® Resolution (max): | 1920×1080 |
| PC Operating System: | Windows 10/11 certified; macOS tested |
| Mac® Resolution (min): | 1920×1080 |
| CONNECTOR | |
| USB 3.2 Type C DisplayPort Alt mode only : | 1 (60W power charger) |
| 3.5mm Audio Out: | 1 |
| Mini HDMI: | 1 |
| Power in: | USB Type C (power only) |
| AUDIO | |
| Internal Speakers: | 0.8Watts x2 |
| POWER | |
| Eco Mode (Conserve): | 5.1W |
| Eco Mode (optimized): | 6W |
| Consumption (typical): | 7W |
| Consumption (max): | 7.3W |
| Voltage: | DC 5V/9V/12V/15V/20V |
| Stand-by: | 0.3W |
| Power Supply: | External (Optional) |
| ADDITIONAL HARDWARE | |
| Kensington Lock Slot: | 1 |
| CONTROLS | |
| Physical Controls: | Up, Right, Down, Left, Power |
| On Screen Display: | Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| OPERATING CONDITIONS | |
| Temperature: | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): | 20% to 90% |
| INPUT SIGNAL | |
| Frequency Horizontal: | mini HDMI (v1.4): 15 ~ 82KHz, Type C: 24 ~ 82KHz |
| Frequency Vertical: | mini HDMI (v1.4): 50 ~ 75Hz, Type C: 50 ~ 75Hz |
| VIDEO INPUT | |
| Digital Sync: | TMDS – mini HDMI (v1.4), Micro-Packet – Type C |
| ERGONOMICS | |
| Tilt (Forward/Back): | 30º / 53º |
| WEIGHT (IMPERIAL) | |
| Net (lbs): | 1.5 |
| Net Without Stand (lbs): | 1.5 |
| Gross (lbs): | 3.7 |
| WEIGHT (METRIC) | |
| Net (kg): | 0.7 |
| Net Without Stand (kg): | 0.7 |
| Gross (kg): | 1.7 |
| DIMENSIONS (IMPERIAL) (WXHXD) | |
| Packaging (in.): | 17.1 x 15.4 x 3.5 |
| Physical (in.): | 14.1 x 8.9 x 0.7 |
| Physical Without Stand (in.): | 14.1 x 8.9 x 0.7 |
| DIMENSIONS (METRIC) (WXHXD) | |
| Packaging (mm): | 434 x 391 x 88 |
| Physical (mm): | 359 x 227 x 17 |
| Physical Without Stand (mm): | 359 x 227 x 17 |
| GENERAL | |
| Regulations: | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NRCan, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, BIS |
| PACKAGE CONTENTS: | VA1655 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, Sleeve case x1 |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Warranty: | *Warranty offered may differ from market to market |
| Power Management: | Energy Star standards, EPEAT |
