Specifications P/N CL-W433-PL12SW-A PUMP Motor Speed : PWM 1500~3300 RPMRated Voltage : 12VRated Current : 0.43APower Input : 5.16W CPU Display Rated Voltage : 5VRated Current : 0.26APower Input : 1.3WDisplay Type : 3.95”TFT-LCDDisplay Resolution : 480×48
| P/N | CL-W433-PL12SW-A |
|---|---|
| PUMP | Motor Speed : PWM 1500~3300 RPM Rated Voltage : 12V Rated Current : 0.43A Power Input : 5.16W |

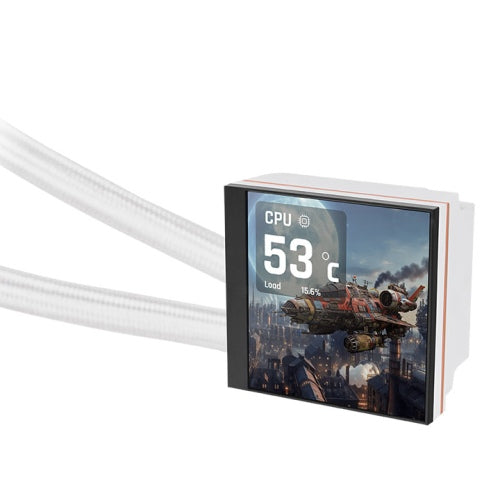

| CPU Display | Rated Voltage : 5V Rated Current : 0.26A Power Input : 1.3W Display Type : 3.95”TFT-LCD Display Resolution : 480×480 (RGB) px |
| Display Support | Interface : Micro USB to USB (9PIN) System Compatibility : Windows 10 / 11 |
| WATER BLOCK | Material : Copper |

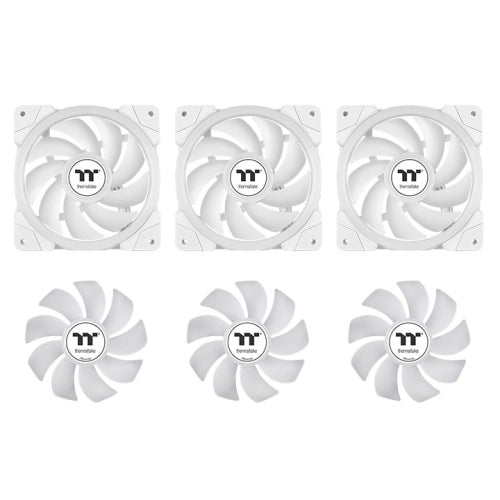

| Fan | Dimension : 120 x 120 x 25 mm Fan Speed : PWM 500~2000 R.P.M Rated Voltage : 12V/5V Rated Current : 0.27 A & 0.72 A (one fan) Power Input : 3.24 W & 3.6 W (one fan) Air Flow : Standard Fan Blade : 57.11 CFM (one fan) Reverse Fan Blade : 56.26 CFM (one fan) Static Pressure : Standard Fan Blade : 2.39 mm-H2O (one fan) Reverse Fan Blade : 2.02 mm-H2O (one fan) Noise Level : Standard Fan Blade : 30.6 dB-A (one fan) Reverse Fan Blade : 32.5 dB-A (one fan) |
| Tube | Length : 460mm Material : Rubber |

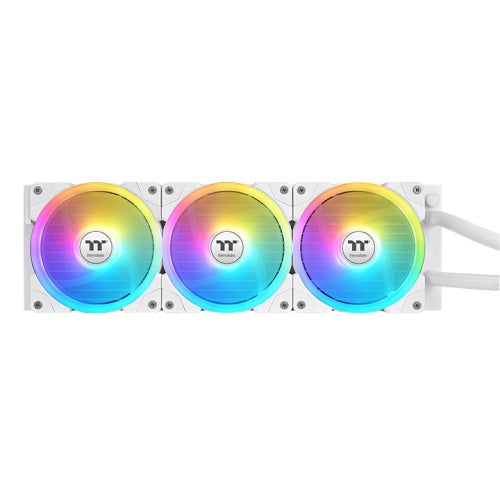

| Radiator | Dimension : 396 x 120 x 27 mm Material : Aluminum |
| COMPATIBILITY | Intel LGA 2066/2011-3/2011/1851/1700 1200/1156/1155/1151/1150 AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
| TDP | 355W |
| Warranty | 2 years |
| P/N | CL-W433-PL12SW-A |
|---|---|
| PUMP | Motor Speed : PWM 1500~3300 RPM Rated Voltage : 12V Rated Current : 0.43A Power Input : 5.16W |
| CPU Display | Rated Voltage : 5V Rated Current : 0.26A Power Input : 1.3W Display Type : 3.95”TFT-LCD Display Resolution : 480×480 (RGB) px |
| Display Support | Interface : Micro USB to USB (9PIN) System Compatibility : Windows 10 / 11 |
| WATER BLOCK | Material : Copper |
| Fan | Dimension : 120 x 120 x 25 mm Fan Speed : PWM 500~2000 R.P.M Rated Voltage : 12V/5V Rated Current : 0.27 A & 0.72 A (one fan) Power Input : 3.24 W & 3.6 W (one fan) Air Flow : Standard Fan Blade : 57.11 CFM (one fan) Reverse Fan Blade : 56.26 CFM (one fan) Static Pressure : Standard Fan Blade : 2.39 mm-H2O (one fan) Reverse Fan Blade : 2.02 mm-H2O (one fan) Noise Level : Standard Fan Blade : 30.6 dB-A (one fan) Reverse Fan Blade : 32.5 dB-A (one fan) |
| Tube | Length : 460mm Material : Rubber |
| Radiator | Dimension : 396 x 120 x 27 mm Material : Aluminum |
| COMPATIBILITY | Intel LGA 2066/2011-3/2011/1851/1700 1200/1156/1155/1151/1150 AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
| TDP | 355W |
| Warranty | 2 years |
