Specifications Description P/N CA-1V2-00MBWN-00 SERIES Core MODEL Core P6 TG Turquoise CASE TYPE Mid Tower DIMENSION (H X W X D) 565 x 255 x 530mm (22.2 x 10 x 20.9 inch) NET WEIGHT 17.84 kg / 39.33 lbs. PANEL 4mm Tempered Glass x 3 COLOR Turquoise MATERI
| Description | |
| P/N | CA-1V2-00MBWN-00 |
| SERIES | Core |

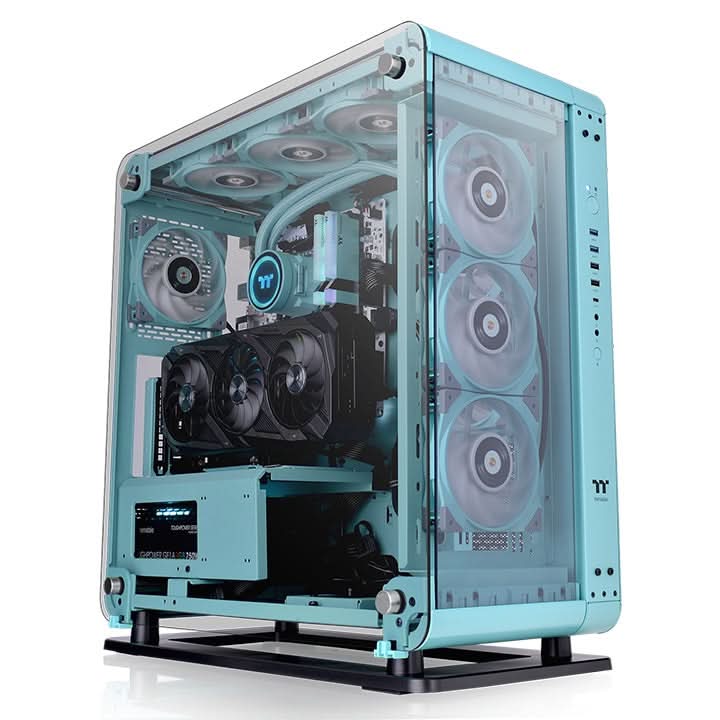

| MODEL | Core P6 TG Turquoise |
| CASE TYPE | Mid Tower |
| DIMENSION (H X W X D) | 565 x 255 x 530mm |
| (22.2 x 10 x 20.9 inch) | |
| NET WEIGHT | 17.84 kg / 39.33 lbs. |
| PANEL | 4mm Tempered Glass x 3 |
| COLOR | Turquoise |
| MATERIAL | SPCC |
| WARRANTY | 1 Year |
| DRIVE BAYS | 4 x 3.5” or 8 x 2.5” |
| -ACCESSIBLE | |
| -HIDDEN | |
| EXPANSION SLOTS | 7 (Rotatable Patented Design) |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), |
| 12” x 9.6” (ATX), 12” x 10.5”(CEB) | |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: |
| 3 x 120mm, 2 x 120mm, 1 x 120mm | |
| 2 x 140mm, 1 x 140mm | |
| Top: | |
| 3 x 120mm, 2 x 120mm, 1 x 120mm | |
| 2 x 140mm, 1 x 140mm | |
| Rear: | |
| 1 x 120mm | |
| Right (M/B Side): | |
| 3 x 120mm, 2 x 120mm, 1 x 120mm | |
| 2 x 140mm, 1 x 140mm | |
| Bottom: | |
| 3 x 120mm, 2 x 120mm or 1 x 120mm | |
| 2 x 140mm, 1 x 140mm | |
| RADIATOR SUPPORT | Front: |
| 1 x 360mm, 1 x 240mm, 1 x 120mm | |
| 1 x 280mm, 1 x 140mm | |
| Top: | |
| 1 x 360mm, 1 x 240mm, 1 x 120mm | |
| 1 x 280mm, 1 x 140mm | |
| Rear: | |
| 1 x 120mm | |
| Right (M/B Side): | |
| 1 x 360mm, 1 x 240mm, 1 x 120mm | |
| 1 x 280mm, 1 x 140mm | |
| Bottom: | |
| 1 x 240mm, 1 x 120mm | |
| CLEARANCE | CPU cooler height limitation: |
| 180mm | |
| VGA length limitation: | |
| 300mm (With Reservoir) | |
| 400mm (Without Reservoir) | |
| 430mm (With Radiator) | |
| 458mm (Without Radiator) | |
| PSU length limitation: | |
| 200mm | |
