Description

Features:

Designed With A Native Pcie 12+4Pin Connector, The Toughpower Gf3 Series Is Compatible With Intel €˜S Atx 3.0 Specification And Is Built For Next-Gen Pcie 5.0 Graphics Cards.

The Wattage Marked On 12Vhpwr€™S Connector Is The Recommended Wattage. (Ref. Intel Design Guideline) The Native 16 Pin (12Vhpwr) Pcie Connector Of Gf3 1350W Can Deliver Up To 600W For Pcie 5.0 Graphics Cards.

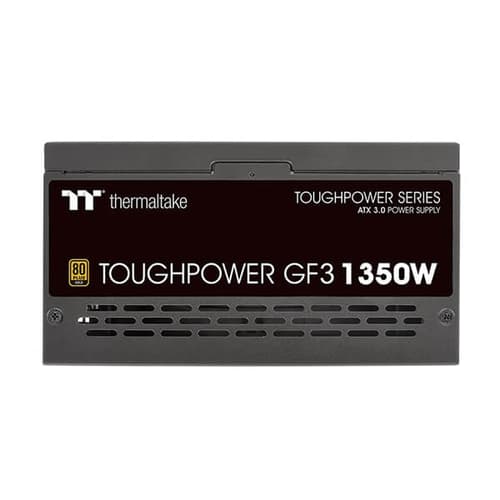

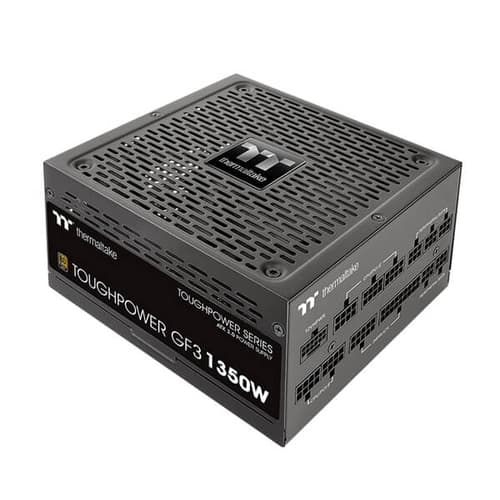

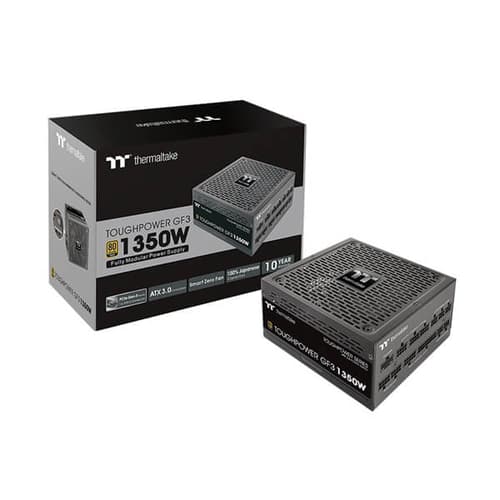

Toughpower Gf3 1350W Gold – Tt Premium Edition

Pcie Gen 5.0 Ready! Designed With A Native Pcie 12+4Pin Modular Connector, The Toughpower Gf3 Series Is Built For The Next-Gen Pcie 5.0 Graphics Cards And Is Compatible With Intel Atx 3.0 Specifications. The Fully Modular Toughpower Gf3 Series Comes In 1650W, 1350W, 1200W, 1000W, 850W And 750W And Is Built To Deliver 80 Plus Gold Efficiency. Aimed At Providing The Best Performance, The Toughpower Gf3 1350W Includes All The Critical Features Such As ≪ 30Mv Low Ripple Noise Design, Extremely Strict Voltage Regulation ≪ ±3%, Hold Up Time≫ 17 Milliseconds, And Comes With 100% High Quality Japanese Capacitors And Other Premium Components To Help Deliver Continuous And Stable Power.

Fully Compatible With Intel Psdg Atx 3.0 Specifications

Toughpower Gf3 Series Is Fully Compatible With Intel Atx 3.0 Specifications Which Supports Up To 200% Power Excursion, Reaches 70% Low Load Efficiency And Complies With Required Power Supply Timing Standards. The Gf3 Series Can Sustain Up To 3X Gpu Power Excursion And 2X Total Power Excursion.

Made To Comply With The Latest Graphics Cards

As The Power Consumption Of Graphics Cards Has Increased, So Has Their Demand For Power. The Gf3 Series Is Designed To Support Nvidia And Amd Graphics Cards, Ready To Supply The Graphics Card According To Their Different Ways Of Connections.

Pcie Gen 5.0 Ready

Toughpower Gf3 1350W Gold Comes With A 16Pin Connector To Offer Powerful And Stable Performance Allowing The Psu To Run Next-Generation Gpus Naturally.

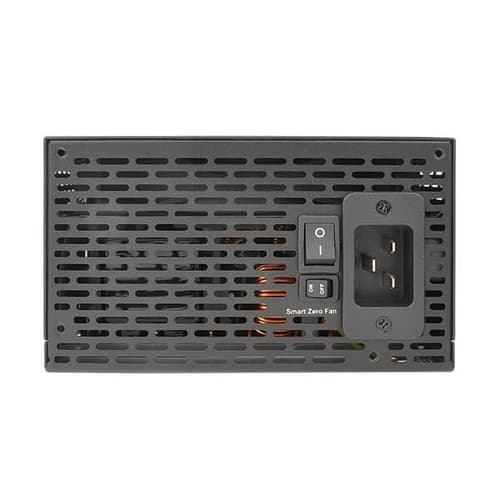

Ultra Quiet Smart Zero Fan

Designed With Our Smart Zero Fan, The Fan Will Not Spin Until The Load Exceeds 30% Of The Power Supply, Minimizing The Fan Noise.

＜30Mv Low Ripple Noise Design

Top-End Build Quality With Low Ripple Noise. All Ripples Are Lower Than 30Mv On +12V, +5V Or +3.3V From 0% To 100% Load To Ensure A Stable Operation And Allows Your Performance-Critical Components To Function Reliably For Longer.

Extremely Strict Voltage Regulation ＜±3%

The Voltage Regulation, More Strict Than Intel€™S Standard +5%,-7% For Major Rails And ±10% For -12V, Is Set To No More Than ±3% For +12V And +5V, Providing Steady Clean Power Through Exceptional Voltage Stability.

Fully Modular Low-Profile Flat Cable

Offers Cable Selection For Users While Powering The System At An Advantageous Voltage. Low-Profile Flat Black Cable Makes Cable Management Easier, Reduces Clutter And Increases Airflow Inside The Chassis.

100% High Quality Japanese 105°C/221°F Capacitors

Providing Great Durability As Well As Offering The Highest Stability, While Remaining Reliable.

High Amperage Single +12V Rail &Amp; High-Class Technologies

Powerful Single +12V Rail Can Properly Deliver The Power You Need For The Best Compatibility. The Use Of Llc And Dc To Dc Circuit Design Provides Very Stable Operation And Enhanced Voltage Regulation.

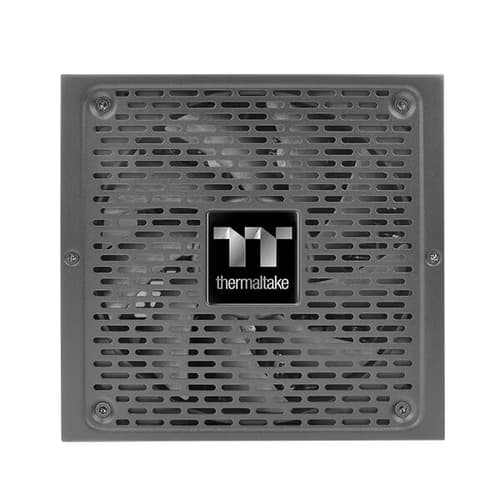

140Mm Hydraulic Bearing Fan

Featuring A 140Mm Hydraulic Bearing Fan To Guarantee Superior Cooling Performance.

Specifications
