Specifications Part Number Ps-Tpd1650Fnfagd-4 Watts 1650W Max. Output Capacity 1650W Colour Black Dimension ( W / H / D ) 150Mm(W) X 86Mm(H) X 180Mm(D) Weight 2.14 Kg Pfc (Power Factor Correction) Active Pfc Power Good Signal 100-250 Msec Input Current 20
| Part Number | Ps-Tpd1650Fnfagd-4 |
| Watts | 1650W |
| Max. Output Capacity | 1650W |
| Colour | Black |
| Dimension ( W / H / D ) | 150Mm(W) X 86Mm(H) X 180Mm(D) |
| Weight | 2.14 Kg |
| Pfc (Power Factor Correction) | Active Pfc |
| Power Good Signal | 100-250 Msec |
| Input Current | 20 16A |
| Input Frequency Range | 50-60Hz |
| Input Voltage | 100 – 240V |
| Operating Temperature | 0C To + 50C |
| Operating Humidity | 20% To 90%, Non-Condensing |
| Storage Temperature | -40C To + 70C |
| Storage Humidity | 20% To 95%, Non-Condensing |
| Cooling System | 14Cm Hydraulic Bearing Fan |
| Efficiency | Meet 80 Plusgold At 115Vac Input. |
| Mtbf | 100,000 Hrs Minimum |
| Safety Approval | Ce/Ukca/Ctuvus/T¹V/Fcc/Ic/Bsmi/Eac/Cb/Bis/Kcc |

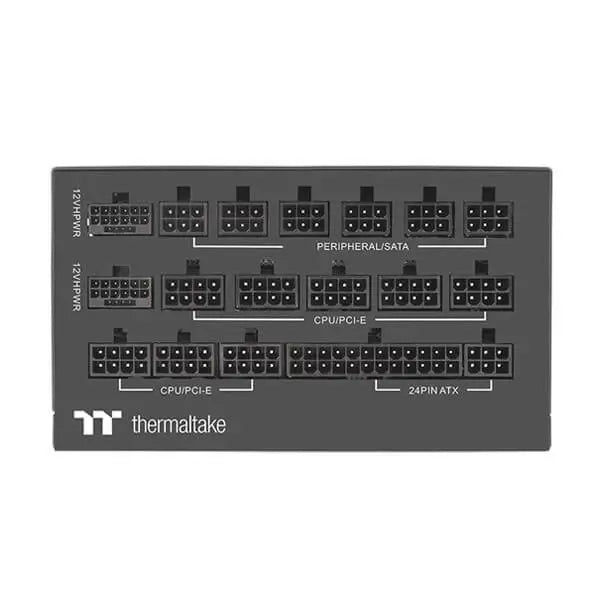

| Pci-E 6+2Pin | 9 |
| Pcie 12+4Pin | 2 |
| Warranty | 10 Years |
*Note: The Actual Colors May Be Different From The Color Displayed Here. Features, Price And Specifications Are Subject To Change Without Notice.
