Specifications: Specification Details SKU 11348-02-20G GPU Model SAPPHIRE PURE AMD Radeon™ RX 9070 XT Architecture AMD RDNA™ 4 Engine Clock Boost Clock: Up to 3010 MHzGame Clock: Up to 2460 MHz Stream Processors 4096 Compute Units 64 CUs (3rd Gen RT + 2nd
| Specification | Details |
|---|---|
| SKU | 11348-02-20G |

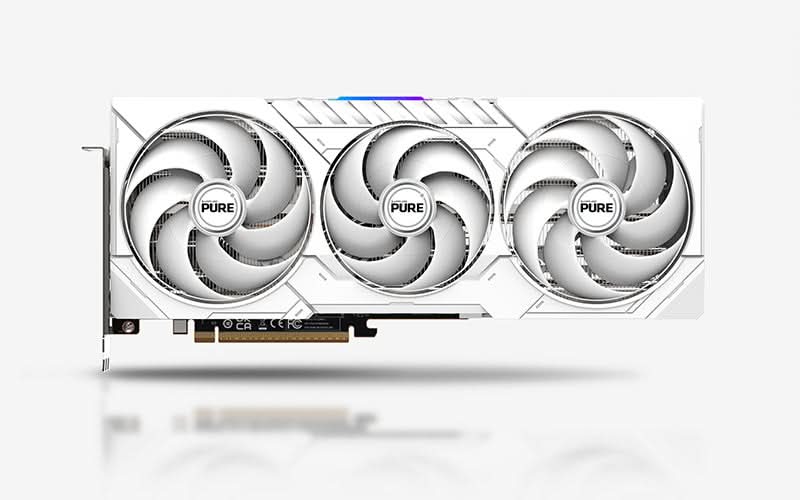

| GPU Model | SAPPHIRE PURE AMD Radeon™ RX 9070 XT |
| Architecture | AMD RDNA™ 4 |
| Engine Clock | Boost Clock: Up to 3010 MHzGame Clock: Up to 2460 MHz |
| Stream Processors | 4096 |
| Compute Units | 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 64MB |
| Ray Accelerators | 64 |
| AI Accelerators | 128 |
| Memory Size & Bus | 16GB GDDR6 / 256-bit |
| Memory Clock | 20 Gbps Effective |
| Max Displays | 4 |
| Max Resolution | HDMI®: 7680×4320DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Outputs | 2x HDMI®2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |
| Power Consumption | 317W Typical Board Power |
| Minimum PSU Requirement | 750W |
| Power Connector | 2 x 8-pin Power Connector |
| Form Factor | 3 slot, ATX |
| Dimensions | 320mm (L) x 120.25mm (W) x 61.6mm (H) |
| Cooling System | Tri-X Cooling Technology |
| Fan Type | Two-Ball Bearing Fans |
| Sapphire Features | Honeywell PTM7950 TIM, AeroCurve Fan Blade, Free Flow, FrameDefense, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, ARGB SAPPHIRE Logo, 14-Phase Digital Power Design, Fuse Protection, Intelligent Fan Control, Precision Fan Control |
| Software & Technologies | AMD HYPR-RX with AFMF 2, AMD FidelityFX™ Super Resolution 4 with AI Upscaling, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag 2, AMD Noise Suppression, AMD Freesync™, AMD Smart Technologies, Microsoft® DirectX® 12 Ultimate, AMD Software: Adrenalin Edition™ |
| Operating Systems | Linux®, Windows® 10 & 11 (64-bit required) |
| Bundled Accessories | L-Shape Support Bracket, 3-pin 5V ARGB Cable |
| Warranty | 3 Years |
| Specification | Details |
|---|---|
| SKU | 11348-02-20G |
| GPU Model | SAPPHIRE PURE AMD Radeon™ RX 9070 XT |
| Architecture | AMD RDNA™ 4 |
| Engine Clock | Boost Clock: Up to 3010 MHzGame Clock: Up to 2460 MHz |
| Stream Processors | 4096 |
| Compute Units | 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 64MB |
| Ray Accelerators | 64 |
| AI Accelerators | 128 |
| Memory Size & Bus | 16GB GDDR6 / 256-bit |
| Memory Clock | 20 Gbps Effective |
| Max Displays | 4 |
| Max Resolution | HDMI®: 7680×4320DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Outputs | 2x HDMI®2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |
| Power Consumption | 317W Typical Board Power |
| Minimum PSU Requirement | 750W |
| Power Connector | 2 x 8-pin Power Connector |
| Form Factor | 3 slot, ATX |
| Dimensions | 320mm (L) x 120.25mm (W) x 61.6mm (H) |
| Cooling System | Tri-X Cooling Technology |
| Fan Type | Two-Ball Bearing Fans |
| Sapphire Features | Honeywell PTM7950 TIM, AeroCurve Fan Blade, Free Flow, FrameDefense, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, ARGB SAPPHIRE Logo, 14-Phase Digital Power Design, Fuse Protection, Intelligent Fan Control, Precision Fan Control |
| Software & Technologies | AMD HYPR-RX with AFMF 2, AMD FidelityFX™ Super Resolution 4 with AI Upscaling, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag 2, AMD Noise Suppression, AMD Freesync™, AMD Smart Technologies, Microsoft® DirectX® 12 Ultimate, AMD Software: Adrenalin Edition™ |
| Operating Systems | Linux®, Windows® 10 & 11 (64-bit required) |
| Bundled Accessories | L-Shape Support Bracket, 3-pin 5V ARGB Cable |
| Warranty | 3 Years |
