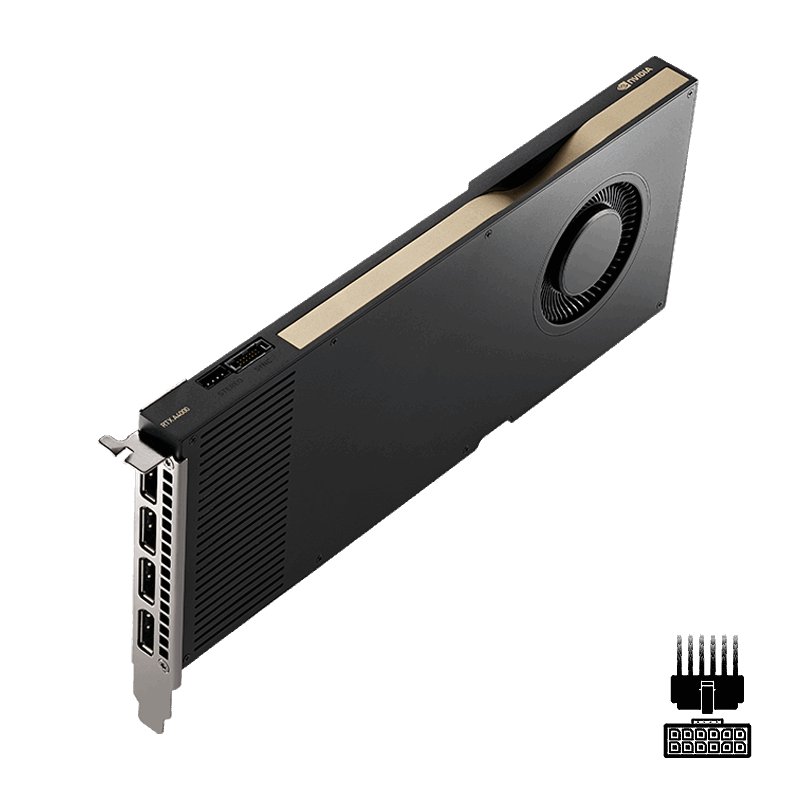

Specifications Architecture NVIDIA Ampere Architecture Process Size 8nm Transistors 17.4 Billion Die Size 392.5 mm2 CUDA Cores 6144 Tensor Cores 192 RT Cores 48 Single Precision Performance 19.2 TFLOPS RT Core Performance 37.4 TFLOPS Tensor Performance 1
| Architecture | NVIDIA Ampere Architecture |
| Process Size | 8nm |
| Transistors | 17.4 Billion |
| Die Size | 392.5 mm2 |
| CUDA Cores | 6144 |
| Tensor Cores | 192 |
| RT Cores | 48 |
| Single Precision Performance | 19.2 TFLOPS |
| RT Core Performance | 37.4 TFLOPS |
| Tensor Performance | 153.4 TFLOPS |
| GPU Memory | 16 GB GDDR6 with ECC |
| Memory Interface | 256-bit |
| Memory Bandwidth | 448 GB/sec |
| Display Connectors | 4x DisplayPort 1.4a |
| NVENC | NVDEC | 1x | 1x (+ AV1 decode) |
| System Interface | PCI Express 4.0 x16 |
| Form Factor | 4.4” H x 9.5” L Single Slot |
| Thermal Solution | Active Fansink |
| Maximum Power Consumption | 140 W NVIDIA Quadro and RTX Power Guidelines |
| Power Connector | 1x 6-pin PCIe |
| Max Digital Resolution | 7680 x 4320 x36 bpp at 60 Hz NVIDIA Quadro and RTX Display Resolution Support |
| NVIDIA 3D Vision and 3D Vision Pro | Support via 3-pin mini DIN |
| Frame Lock | Optional NVIDIA Quadro Sync II |
| Warranty | 3 Years |
| Architecture | NVIDIA Ampere Architecture |
| Process Size | 8nm |
| Transistors | 17.4 Billion |
| Die Size | 392.5 mm2 |
| CUDA Cores | 6144 |
| Tensor Cores | 192 |
| RT Cores | 48 |
| Single Precision Performance | 19.2 TFLOPS |
| RT Core Performance | 37.4 TFLOPS |
| Tensor Performance | 153.4 TFLOPS |
| GPU Memory | 16 GB GDDR6 with ECC |
| Memory Interface | 256-bit |
| Memory Bandwidth | 448 GB/sec |
| Display Connectors | 4x DisplayPort 1.4a |
| NVENC | NVDEC | 1x | 1x (+ AV1 decode) |
| System Interface | PCI Express 4.0 x16 |
| Form Factor | 4.4” H x 9.5” L Single Slot |
| Thermal Solution | Active Fansink |
| Maximum Power Consumption | 140 W NVIDIA Quadro and RTX Power Guidelines |
| Power Connector | 1x 6-pin PCIe |
| Max Digital Resolution | 7680 x 4320 x36 bpp at 60 Hz NVIDIA Quadro and RTX Display Resolution Support |
| NVIDIA 3D Vision and 3D Vision Pro | Support via 3-pin mini DIN |
| Frame Lock | Optional NVIDIA Quadro Sync II |
| Warranty | 3 Years |
