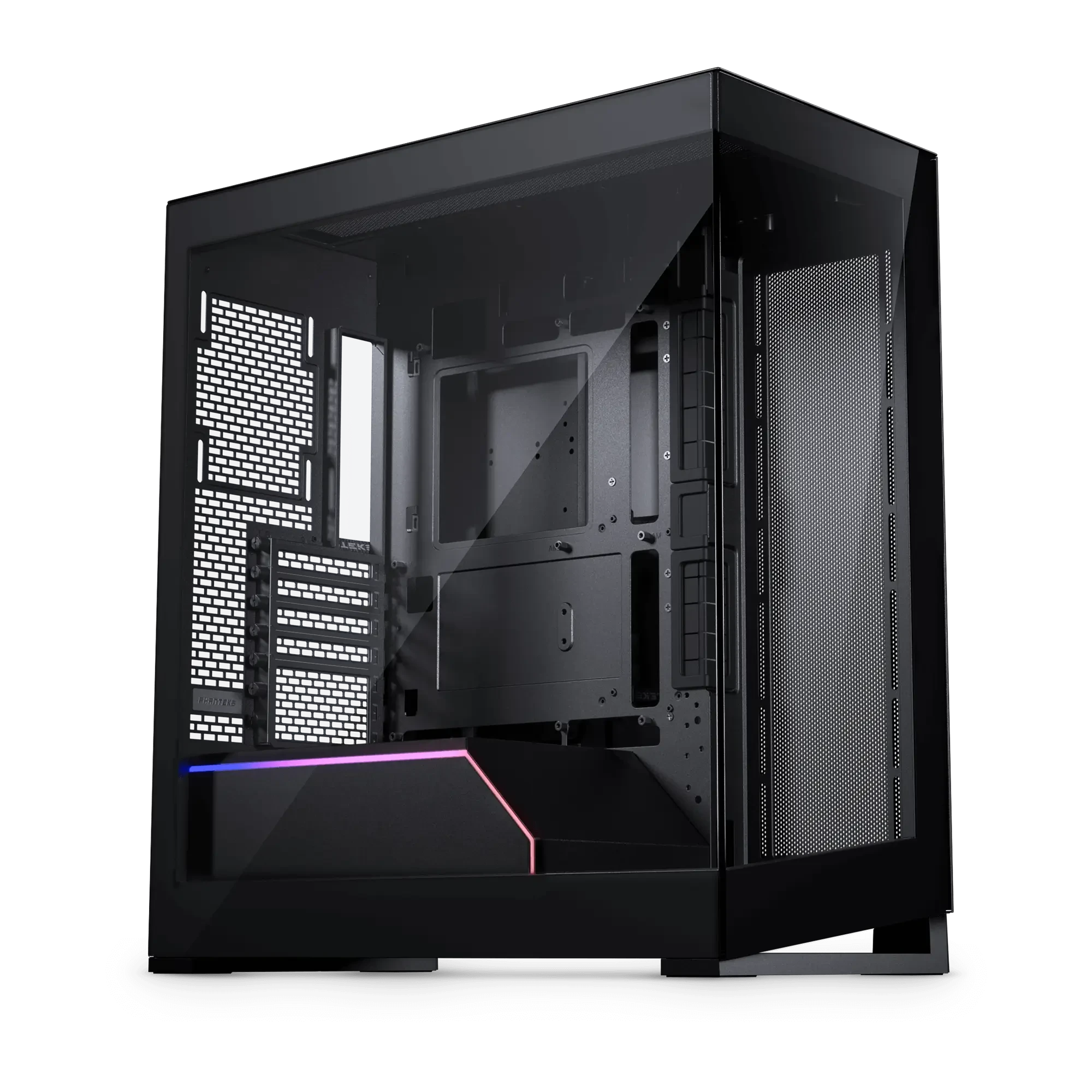

Phanteks Nv5 Tg
₹10,000
Specifications Category Specification Model Number PH-NV523TG_DBK02 UPC Code 886523303466 Case Dimensions (DxWxH) 528 × 239 × 477 mm20.8 × 9.4 × 18.8 in Form Factor Mid Tower Motherboard Support E-ATX* (up to 280mm), ATX, Micro-ATX, Mini-ITX*E-ATX limited
Description
Specifications
| Category | Specification |
|---|---|
| Model Number | PH-NV523TG_DBK02 |
| UPC Code | 886523303466 |
| Case Dimensions (DxWxH) | 528 × 239 × 477 mm20.8 × 9.4 × 18.8 in |
| Form Factor | Mid Tower |
| Motherboard Support | E-ATX* (up to 280mm), ATX, Micro-ATX, Mini-ITX*E-ATX limited without GPU support bracket |
| Materials | Steel chassis, Tempered glass |
| Side Window | Yes |
| PCI Slots | 7 |
| Vertical GPU Support | Up to 3 slots (Riser cable sold separately) |
| Drive Bays | – 2.5″: 4- 3.5″: 3 |
| Front I/O Ports | – 1 × USB-C 3.2 Gen 2- 2 × USB 3.0- Microphone / Headphone- D-RGB Mode Button- D-RGB Color Button- Power Button |
| Fan Support (120mm) | – Total: 8- Top: 3- Side: 3- Rear: 1- Bottom: 1 |
| Fan Support (140mm) | Not supported |
| Pre-installed Fans | Not listed |
| Radiator Support (120mm) | – Top: up to 360mm- Side: up to 360mm- Rear: 120mm |
| Radiator Support (140mm) | Not supported |
| Radiator Dimensions | – Top: 134 × 430 × 62 mm- Side: 130 × 420 × 62 mm- Rear: 132 × 170 mm |
| CPU Cooler Clearance | 180 mm / 7.08 in |
| GPU Clearance | – Length: 440 mm / 17.32 in- Height: 170 mm / 6.69 in |
| PSU Clearance | 230 mm / 9.05 in |
| Net Weight | 11.28 kg / 24.9 lbs |
| Gross Weight | 13.97 kg / 30.8 lbs |
| Warranty | 5 Years (Limited) |
| Scope of Delivery | – 1 × NV5 Chassis- 6 × Zip ties- 1 × GPU support bracket- Assorted screws and standoff tool |
