Msi Pro X870-P Wifi
Msi Pro X870-P Wifi - Image 2
Msi Pro X870-P Wifi - Image 3
Msi Pro X870-P Wifi - Image 4
Msi Pro X870-P Wifi - Image 5

Msi Pro X870-P Wifi

In Stock
SKU : 1091148 Product Type: Brand:
₹23,200

Specifications: Chipset Amd X870 Cpu Supports Amd Ryzen„ 9000/ 8000/ 7000 Series Desktop Processorssocket Am5 Memory 4X Ddr5 Udimm, Maximum Memory Capacity 256Gbmemory Support Ddr5 8200+(Oc)/ 8000+(Oc)/ 7800(Oc)/ 7600(Oc)/ 7400(Oc)/ 7200(Oc)/ 7000(Oc)/ 68

In Stock
Add to wishlist Compare
In Stock

Additional information

Specifications:














































































Chipset Amd X870
Cpu Supports Amd Ryzen„ 9000/ 8000/ 7000 Series Desktop Processors
Socket Am5
Memory 4X Ddr5 Udimm, Maximum Memory Capacity 256Gb
Memory Support Ddr5 8200+(Oc)/ 8000+(Oc)/ 7800(Oc)/ 7600(Oc)/ 7400(Oc)/ 7200(Oc)/ 7000(Oc)/ 6800(Oc)/ 6600(Oc)/ 6400(Oc)/ 6200(Oc)/ 6000(Oc)/ 5800(Oc)/ 5600(Jedec)/ 5400(Jedec)/ 5200(Jedec)/ 5000(Jedec)/ 4800(Jedec) Mt/S
Ryzen„ 9000 Series Processors Max. Overclocking Frequency:
€ 1Dpc 1R Max Speed Up To 8200+ Mt/S
€ 1Dpc 2R Max Speed Up To 6400+ Mt/S
€ 2Dpc 1R Max Speed Up To 6400+ Mt/S
€ 2Dpc 2R Max Speed Up To 4800+ Mt/S

Supports Amd Por Speed And Jedec Speed
Supports Memory Overclocking And Amd ExpoTm
Supports Dual-Channel Mode
Supports Non-Ecc, Un-Buffered Memory
Supports Cudimm, Clock Driver Bypass Mode Only*

* Cudimm Support And Por Boot Frequency May Vary By Cpu Series, With Manual Overclocking Available After Boot. Certain Cpus May Fail To Boot, But Future Bios Updates Will Improve Compatibility.
€ The Dimm Slots On This Motherboard Have Double-Sided Latches.
€ Memory Compatibility And Supported Speeds Can Vary Depending On The Cpu And Memory Configuration. For Detailed Information, Please Refer To The Memory Compatibility List Available On The Product€™S Support Page Or Visit Https://Www.Msi.Com/Support/.
Onboard Graphics 1X Hdmi„
Support HdmiTm2.1, Maximum Resolution Of 4K 60Hz*
1X Type-C Displayport
Usb4Port, Supporting Displayport 1.4 With Hbr3 Over Usb Type-C, Maximum Resolution Of 4K 60Hz*
*Available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed.
Slot 4X Pci-E X16 Slot
Pci_E1 Gen Pcie 5.0 Supports Up To X16 (From Cpu)
Pci_E2 Gen Pcie 3.0 Supports Up To X1 (From Chipset)
Pci_E3 Gen Pcie 3.0 Supports Up To X1 (From Chipset)
Pci_E4 Gen Pcie 4.0 Supports Up To X4 (From Chipset)

Pci_E1 Slot
€ Supports Pcie 5.0 X16 (For Ryzen„ 9000/ 7000 Series Processors)
€ Supports Pcie 4.0 X8 (For Ryzen„ 8700/ 8600/ 8400 Series Processors)
€ Supports Pcie 4.0 X4 (For Ryzen„ 8500/ 8300 Series Processor)

* Pci_E4 Slot Will Run At X2 Speed When Installing M.2 Ssd In The M2_3 Slot.
Audio RealtekAlc897
7.1-Channel High Definition Audio
Storage 3X M.2
M.2_1 Source (From Cpu) Supports Up To Pcie 5.0 X4 , Supports 2280/2260 Devices
M.2_2 Source (From Chipset) Supports Up To Pcie 4.0 X4 , Supports 22110/2280 Devices
M.2_3 Source (From Chipset) Supports Up To Pcie 4.0 X2 , Supports 2280/2260 Devices
4X Sata 6G

M2_1 Slot
€ Supports Up To Pcie 5.0 X4 (For Ryzen„ 9000/ 7000 Series Processors)
€ Supports Up To Pcie 4.0 X4 (For Ryzen„ 8000 Series Processors)

*Please Refer To The Manual For M.2 Ssd Heatsink Restrictions.
Raid Supports Raid 0 And Raid 1 For M.2 Nvme Storage Devices
Usb 4X Usb 2.0 (Rear)
4X Usb 2.0 (Front)
2X Usb 5Gbps Type A (Rear)
2X Usb 5Gbps Type A (Front)
2X Usb 10Gbps Type A (Rear)
1X Usb 10Gbps Type C (Front)
1X Usb 20Gbps Type C (Rear)
1X Usb 40Gbps Type C (Rear)
Lan Realtek8126Vb 5G Lan
Internal Io 1X Power Connector(Atx_Pwr)
2X Power Connector(Cpu_Pwr)
1X Power Connector(Pcie_Pwr 8Pin)
1X Cpu Fan
1X Combo Fan (Pump_Sys Fan)
6X System Fan
2X Front Panel (Jfp)
1X Chassis Intrusion (Jci)
1X Front Audio (Jaud)
1X Tuning Controller Connector(Jdash)
3X Addressable V2 Rgb Led Connector (Jargb_V2)
1X Rgb Led Connector(Jrgb)
1X Tpm Pin Header(Support Tpm 2.0)
4X Usb 2.0 Ports
2X Usb 5Gbps Type A Ports
1X Usb 10Gbps Type C Ports
Wireless Lan &Amp; Bluetooth Wi-Fi 7
The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot
Supports Mu-Mimo Tx/Rx, 2.4Ghz/ 5Ghz/ 6Ghz* (320Mhz) Up To 5.8Gbps
Supports 802.11 A/ B/ G/ N/ Ac/ Ax/ Be

Supports Bluetooth5.4**, Mlo, 4Kqam

* 6Ghz Band Support May Depend On Every Country€™S Regulations And Wi-Fi 7 Will Be Ready In Windows 11 Version 24H2.
** The Bluetooth Version May Be Updated, Please Refer To The Wi-Fi Chipset Vendor€™S Website For Details. Bluetooth 5.4 Will Be Ready In Windows 11 Version 24H2.
Led Feature 4X Ez Debug Led

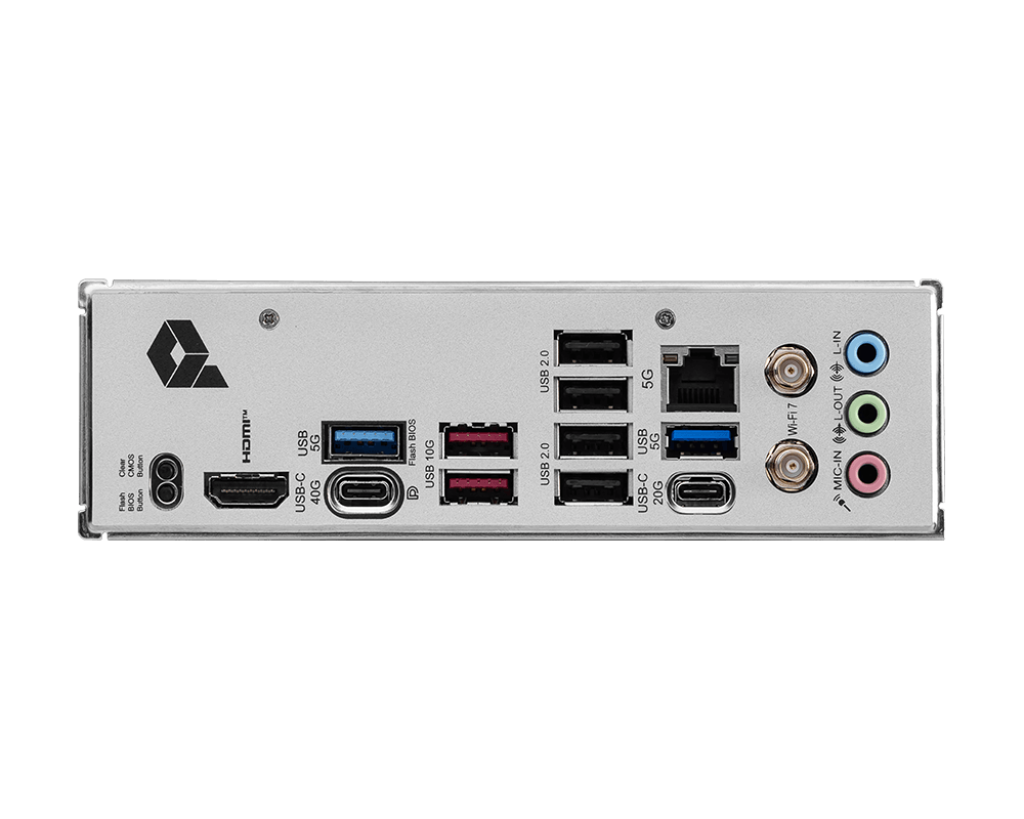

Back Panel Ports


  1. Clear Cmos Button

  2. Usb 5Gbps Type-A

  3. Usb 2.0

  4. 5G Lan

  5. Wi-Fi / Bluetooth

  6. Audio Connectors

  7. Flash Bios Button

  8. Hdmi„

  9. Usb 40Gbps Type-C

  10. Usb 10Gbps Type-A

  11. Usb 20Gbps Type-C
Operating System Support For Windows11 64-Bit
Box Content


Pcb Info Atx
243.84Mmx304.8Mm
Warranty
3 Years

Description

Specifications:














































































Chipset Amd X870
Cpu Supports Amd Ryzen„ 9000/ 8000/ 7000 Series Desktop Processors
Socket Am5
Memory 4X Ddr5 Udimm, Maximum Memory Capacity 256Gb
Memory Support Ddr5 8200+(Oc)/ 8000+(Oc)/ 7800(Oc)/ 7600(Oc)/ 7400(Oc)/ 7200(Oc)/ 7000(Oc)/ 6800(Oc)/ 6600(Oc)/ 6400(Oc)/ 6200(Oc)/ 6000(Oc)/ 5800(Oc)/ 5600(Jedec)/ 5400(Jedec)/ 5200(Jedec)/ 5000(Jedec)/ 4800(Jedec) Mt/S
Ryzen„ 9000 Series Processors Max. Overclocking Frequency:
€ 1Dpc 1R Max Speed Up To 8200+ Mt/S
€ 1Dpc 2R Max Speed Up To 6400+ Mt/S
€ 2Dpc 1R Max Speed Up To 6400+ Mt/S
€ 2Dpc 2R Max Speed Up To 4800+ Mt/S

Supports Amd Por Speed And Jedec Speed
Supports Memory Overclocking And Amd ExpoTm
Supports Dual-Channel Mode
Supports Non-Ecc, Un-Buffered Memory
Supports Cudimm, Clock Driver Bypass Mode Only*

* Cudimm Support And Por Boot Frequency May Vary By Cpu Series, With Manual Overclocking Available After Boot. Certain Cpus May Fail To Boot, But Future Bios Updates Will Improve Compatibility.
€ The Dimm Slots On This Motherboard Have Double-Sided Latches.
€ Memory Compatibility And Supported Speeds Can Vary Depending On The Cpu And Memory Configuration. For Detailed Information, Please Refer To The Memory Compatibility List Available On The Product€™S Support Page Or Visit Https://Www.Msi.Com/Support/.
Onboard Graphics 1X Hdmi„
Support HdmiTm2.1, Maximum Resolution Of 4K 60Hz*
1X Type-C Displayport
Usb4Port, Supporting Displayport 1.4 With Hbr3 Over Usb Type-C, Maximum Resolution Of 4K 60Hz*
*Available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed.
Slot 4X Pci-E X16 Slot
Pci_E1 Gen Pcie 5.0 Supports Up To X16 (From Cpu)
Pci_E2 Gen Pcie 3.0 Supports Up To X1 (From Chipset)
Pci_E3 Gen Pcie 3.0 Supports Up To X1 (From Chipset)
Pci_E4 Gen Pcie 4.0 Supports Up To X4 (From Chipset)

Pci_E1 Slot
€ Supports Pcie 5.0 X16 (For Ryzen„ 9000/ 7000 Series Processors)
€ Supports Pcie 4.0 X8 (For Ryzen„ 8700/ 8600/ 8400 Series Processors)
€ Supports Pcie 4.0 X4 (For Ryzen„ 8500/ 8300 Series Processor)

* Pci_E4 Slot Will Run At X2 Speed When Installing M.2 Ssd In The M2_3 Slot.
Audio RealtekAlc897
7.1-Channel High Definition Audio
Storage 3X M.2
M.2_1 Source (From Cpu) Supports Up To Pcie 5.0 X4 , Supports 2280/2260 Devices
M.2_2 Source (From Chipset) Supports Up To Pcie 4.0 X4 , Supports 22110/2280 Devices
M.2_3 Source (From Chipset) Supports Up To Pcie 4.0 X2 , Supports 2280/2260 Devices
4X Sata 6G

M2_1 Slot
€ Supports Up To Pcie 5.0 X4 (For Ryzen„ 9000/ 7000 Series Processors)
€ Supports Up To Pcie 4.0 X4 (For Ryzen„ 8000 Series Processors)

*Please Refer To The Manual For M.2 Ssd Heatsink Restrictions.
Raid Supports Raid 0 And Raid 1 For M.2 Nvme Storage Devices
Usb 4X Usb 2.0 (Rear)
4X Usb 2.0 (Front)
2X Usb 5Gbps Type A (Rear)
2X Usb 5Gbps Type A (Front)
2X Usb 10Gbps Type A (Rear)
1X Usb 10Gbps Type C (Front)
1X Usb 20Gbps Type C (Rear)
1X Usb 40Gbps Type C (Rear)
Lan Realtek8126Vb 5G Lan
Internal Io 1X Power Connector(Atx_Pwr)
2X Power Connector(Cpu_Pwr)
1X Power Connector(Pcie_Pwr 8Pin)
1X Cpu Fan
1X Combo Fan (Pump_Sys Fan)
6X System Fan
2X Front Panel (Jfp)
1X Chassis Intrusion (Jci)
1X Front Audio (Jaud)
1X Tuning Controller Connector(Jdash)
3X Addressable V2 Rgb Led Connector (Jargb_V2)
1X Rgb Led Connector(Jrgb)
1X Tpm Pin Header(Support Tpm 2.0)
4X Usb 2.0 Ports
2X Usb 5Gbps Type A Ports
1X Usb 10Gbps Type C Ports
Wireless Lan &Amp; Bluetooth Wi-Fi 7
The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot
Supports Mu-Mimo Tx/Rx, 2.4Ghz/ 5Ghz/ 6Ghz* (320Mhz) Up To 5.8Gbps
Supports 802.11 A/ B/ G/ N/ Ac/ Ax/ Be

Supports Bluetooth5.4**, Mlo, 4Kqam

* 6Ghz Band Support May Depend On Every Country€™S Regulations And Wi-Fi 7 Will Be Ready In Windows 11 Version 24H2.
** The Bluetooth Version May Be Updated, Please Refer To The Wi-Fi Chipset Vendor€™S Website For Details. Bluetooth 5.4 Will Be Ready In Windows 11 Version 24H2.
Led Feature 4X Ez Debug Led
Back Panel Ports


  1. Clear Cmos Button

  2. Usb 5Gbps Type-A

  3. Usb 2.0

  4. 5G Lan

  5. Wi-Fi / Bluetooth

  6. Audio Connectors

  7. Flash Bios Button

  8. Hdmi„

  9. Usb 40Gbps Type-C

  10. Usb 10Gbps Type-A

  11. Usb 20Gbps Type-C
Operating System Support For Windows11 64-Bit
Box Content


Pcb Info Atx
243.84Mmx304.8Mm
Warranty
3 Years
