Specifications Specification Details Product Name PANO 130R MLG EDITION Case Form Factor Mid-Tower Motherboard Support Regular: ATX / Micro-ATX / Mini-ITXBack-Connect: ATX / Micro-ATX Radiator Compatibility 120 / 140 / 240 mm Drive Mount Support Up to 3 x
| Specification | Details |
|---|---|

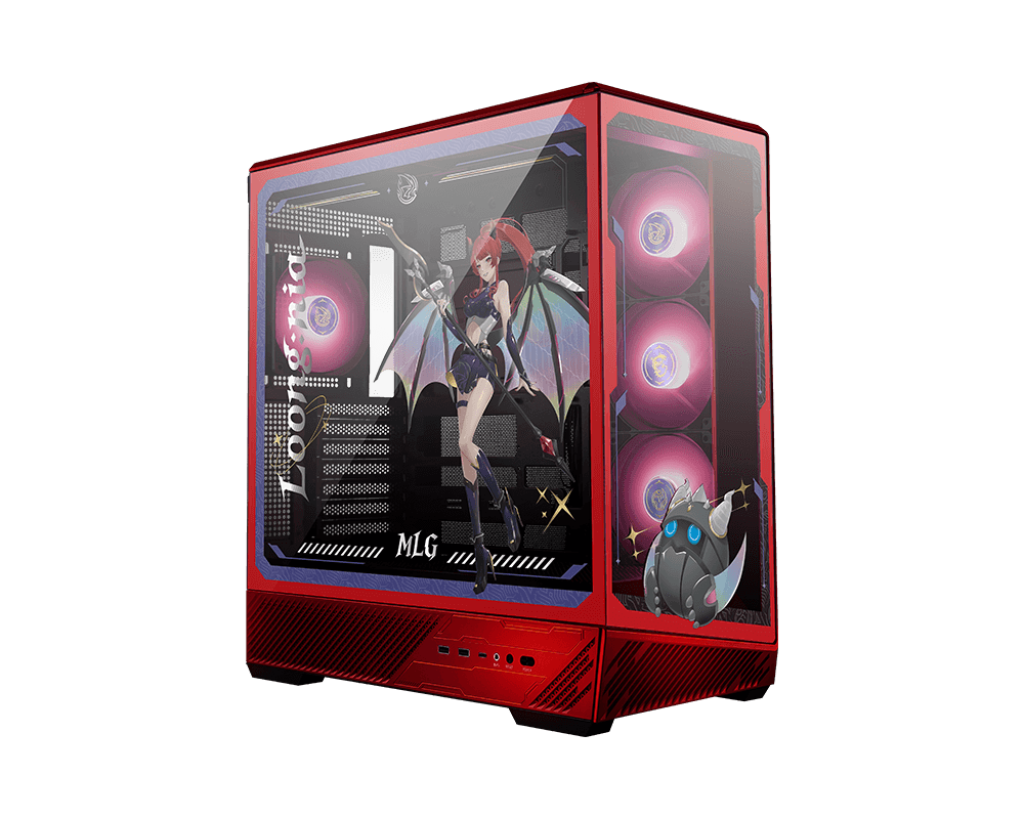

| Product Name | PANO 130R MLG EDITION |
| Case Form Factor | Mid-Tower |
| Motherboard Support | Regular: ATX / Micro-ATX / Mini-ITXBack-Connect: ATX / Micro-ATX |
| Radiator Compatibility | 120 / 140 / 240 mm |
| Drive Mount Support | Up to 3 x 2.5” SSDUp to 2 x 3.5” HDD (Maximum of 3 drives may be installed at once depending on configuration) |
| Dimensions | 460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches |
| Weight (Net) | 8.38 kg / 18.47 lbs |
| I/O Ports | 2 x USB 5Gbps (Type-A)1 x USB 20Gbps (Type-C)1 x Audio-Out / Mic-In1 x Reset Button1 x Power Button |
| Case Expansion Slots | 7 |
| Fan Support | Top: 3 x 120 mm / 2 x 140 mmFront: N/ARear: 1 x 120 mmSide: 3 x 120 mmBottom: 3 x 120 mm (Above PSU shroud) |
| Radiator Layout Support | Top: 120 / 140 / 240 / 280 / 360 mmFront: N/ARear: 120 mmSide: 120 / 240 / 360 mmBottom: 1 x 360 mm (Above power shroud) |
| Included Lighting / Fans | Rear: 1 x 120 mm ARGB FanSide: 3 x 120 mm Reverse-Blade ARGB Fans |
| Maximum PSU Length | 180 mm / 7.09 inches |
| Maximum GPU Length | 400 mm / 15.75 inches |
| Maximum CPU Cooler Height | 165 mm / 6.50 inches |
| Power Supply Support | ATX (not included) |
| Gross Weight | 10.5 kg / 23.15 lbs |
| Specification | Details |
|---|---|
| Product Name | PANO 130R MLG EDITION |
| Case Form Factor | Mid-Tower |
| Motherboard Support | Regular: ATX / Micro-ATX / Mini-ITXBack-Connect: ATX / Micro-ATX |
| Radiator Compatibility | 120 / 140 / 240 mm |
| Drive Mount Support | Up to 3 x 2.5” SSDUp to 2 x 3.5” HDD (Maximum of 3 drives may be installed at once depending on configuration) |
| Dimensions | 460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches |
| Weight (Net) | 8.38 kg / 18.47 lbs |
| I/O Ports | 2 x USB 5Gbps (Type-A)1 x USB 20Gbps (Type-C)1 x Audio-Out / Mic-In1 x Reset Button1 x Power Button |
| Case Expansion Slots | 7 |
| Fan Support | Top: 3 x 120 mm / 2 x 140 mmFront: N/ARear: 1 x 120 mmSide: 3 x 120 mmBottom: 3 x 120 mm (Above PSU shroud) |
| Radiator Layout Support | Top: 120 / 140 / 240 / 280 / 360 mmFront: N/ARear: 120 mmSide: 120 / 240 / 360 mmBottom: 1 x 360 mm (Above power shroud) |
| Included Lighting / Fans | Rear: 1 x 120 mm ARGB FanSide: 3 x 120 mm Reverse-Blade ARGB Fans |
| Maximum PSU Length | 180 mm / 7.09 inches |
| Maximum GPU Length | 400 mm / 15.75 inches |
| Maximum CPU Cooler Height | 165 mm / 6.50 inches |
| Power Supply Support | ATX (not included) |
| Gross Weight | 10.5 kg / 23.15 lbs |
