Specifications: Chipset Amd X870E Cpu Supports Amd Ryzen„ 9000/ 8000/ 7000 Series Desktop Processorssocket Am5 Memory 4X Ddr5 Udimm, Maximum Memory Capacity 256Gbmemory Support Ddr5 8400 – 5600 (Oc) Mt/S / 5600 – 4800 (Jedec) Mt/Sryzen„ 9000 Series Proces
| Chipset | Amd X870E |
|---|---|
| Cpu | Supports Amd Ryzen„ 9000/ 8000/ 7000 Series Desktop Processors Socket Am5 |
| Memory | 4X Ddr5 Udimm, Maximum Memory Capacity 256Gb Memory Support Ddr5 8400 – 5600 (Oc) Mt/S / 5600 – 4800 (Jedec) Mt/S Ryzen„ 9000 Series Processors Max. Overclocking Frequency: € 1Dpc 1R Max Speed Up To 8400+ Mt/S € 1Dpc 2R Max Speed Up To 6400+ Mt/S € 2Dpc 1R Max Speed Up To 6400+ Mt/S € 2Dpc 2R Max Speed Up To 4800+ Mt/S Supports Amd Por Speed And Jedec Speed Supports Memory Overclocking And Amd ExpoTm Supports Dual-Channel Mode Supports Non-Ecc, Un-Buffered Memory Supports Cudimm, Clock Driver Bypass Mode Only* * Cudimm Support And Por Boot Frequency May Vary By Cpu Series, With Manual Overclocking Available After Boot. Certain Cpus May Fail To Boot, But Future Bios Updates Will Improve Compatibility. € The Dimm Slots On This Motherboard Have Double-Sided Latches. € Memory Compatibility And Supported Speeds Can Vary Depending On The Cpu And Memory Configuration. For Detailed Information, Please Refer To The Memory Compatibility List Available On The Product€™S Support Page Or Visit Https://Www.Msi.Com/Support/. |
| Onboard Graphics | 1X Hdmi„ Support HdmiTm2.1 With Frl Port, Maximum Resolution Of 8K 60Hz* 2X Type-C Displayport Usb4Port, Supporting Displayport 1.4 With Hbr3 Over Usb Type-C, Maximum Resolution Of 4K@60Hz* *Available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed. |
| Slot | 3X Pci-E X16 Slot Pci_E1 Gen Pcie 5.0 Supports Up To X16 (From Cpu) Pci_E2 Gen Pcie 5.0 Supports Up To X4 (From Cpu) Pci_E3 Gen Pcie 4.0 Supports Up To X4 (From Chipset) Pci_E1 &Amp; Pci_E2 Slots € Supports Pcie 5.0 X16/X0 Or X8/X4 (For Ryzen„ 9000/ 7000 Series Processors) € Supports Pcie 4.0 X8/X0 (For Ryzen„ 8700/ 8600/ 8400 Series Processors) € Supports Pcie 4.0 X4/X0 (For Ryzen„ 8500/ 8300 Series Processor) Pci_E3 Slot € Supports Up To Pcie 4.0 X4 * Pci_E1 &Amp; Pci_E2 &Amp; M.2_2 Share The Bandwidth, And Pcie Version Support Varies Depending On The Cpu. Please Refer To The Pcie Configuration Table In The Manual For More Details. |
| Audio | RealtekAlc4080 Codec 7.1-Channel Usb High-Performance Audio Supports Up To 32-Bit/384 Khz Playback On Front Panel Supports S/Pdif Output |
| Storage | 4X M.2 M.2_1 Source (From Cpu) Supports Up To Pcie 5.0 X4 , Supports 2280/2260 Devices M.2_2 Source (From Cpu) Supports Up To Pcie 5.0 X4 , Supports 2280/2260 Devices M.2_3 Source (From Chipset) Supports Up To Pcie 4.0 X4 , Supports 22110/2280 Devices M.2_4 Source (From Chipset) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices 4X Sata 6G M.2_1 Slot € Supports Up To Pcie 5.0 X4 (For Ryzen„ 9000/ 7000 Series Processors) € Supports Up To Pcie 4.0 X4 (For Ryzen„ 8000 Series Processors) M.2_2 Slot* € Supports Up To Pcie 5.0 X4 (For Ryzen„ 9000/ 7000 Series Processors) € The M2_2 Slot Will Be Unavailable When Using Ryzen„ 8000 Series Processors * Pci_E1 &Amp; Pci_E2 &Amp; M.2_2 Share The Bandwidth, And Pcie Version Support Varies Depending On The Cpu. Please Refer To The Pcie Configuration Table In The Manual For More Details. |
| Raid | €Supports Raid 0, Raid 1 And Raid 10 For Sata Storage Devices €Supports Raid 0, Raid 1 And Raid 10* For M.2 Nvme Storage Devices * Raid 10 For M.2 Nvme Storage Devices Is Only Supported By Amd Ryzen„ 9000/7000 Series Cpu. |
| Usb | 4X Usb 2.0 (Front) 4X Usb 5Gbps Type A (Front) 9X Usb 10Gbps Type A (Rear) 2X Usb 10Gbps Type C (Rear) 1X Usb 20Gbps Type C (Front) 2X Usb 40Gbps Type C (Rear) |
| Lan | 1X Realtek8126 5G Lan 1X Realtek8125 2.5G Lan |
| Internal Io | 1X Power Connector(Atx_Pwr) 2X Power Connector(Cpu_Pwr) 1X Power Connector(Pcie_Pwr 8Pin) 1X Cpu Fan 1X Combo Fan (Pump_Sys Fan) 5X System Fan 1X Ez Conn-Header (Jaf_2) 2X Front Panel (Jfp) 1X Chassis Intrusion (Jci) 1X Front Audio (Jaud) 1X Thermal Sensor Connectors(T_Sen) 3X Addressable V2 Rgb Led Connector (Jargb_V2) 1X Rgb Led Connector(Jrgb) 4X Usb 2.0 Ports 4X Usb 5Gbps Type A Ports 1X Usb 20Gbps Type C Ports |
| Wireless Lan &Amp; Bluetooth | Wi-Fi 7 Solution The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports Mu-Mimo Tx/Rx, 2.4Ghz/ 5Ghz/ 6Ghz* (320Mhz) Up To 5.8Gbps Supports 802.11 A/ B/ G/ N/ Ac/ Ax/ Be Supports Bluetooth5.4**, Mlo, 4Kqam * 6Ghz Band Support May Depend On Every Country€™S Regulations And Wi-Fi 7 Will Be Ready In Windows 11 Version 24H2. ** The Bluetooth Version May Be Updated, Please Refer To The Wi-Fi Chipset Vendor€™S Website For Details. Bluetooth 5.4 Will Be Ready In Windows 11 Version 24H2. |
| Led Feature | 4X Ez Debug Led 1X Ez Digit Debug Led |

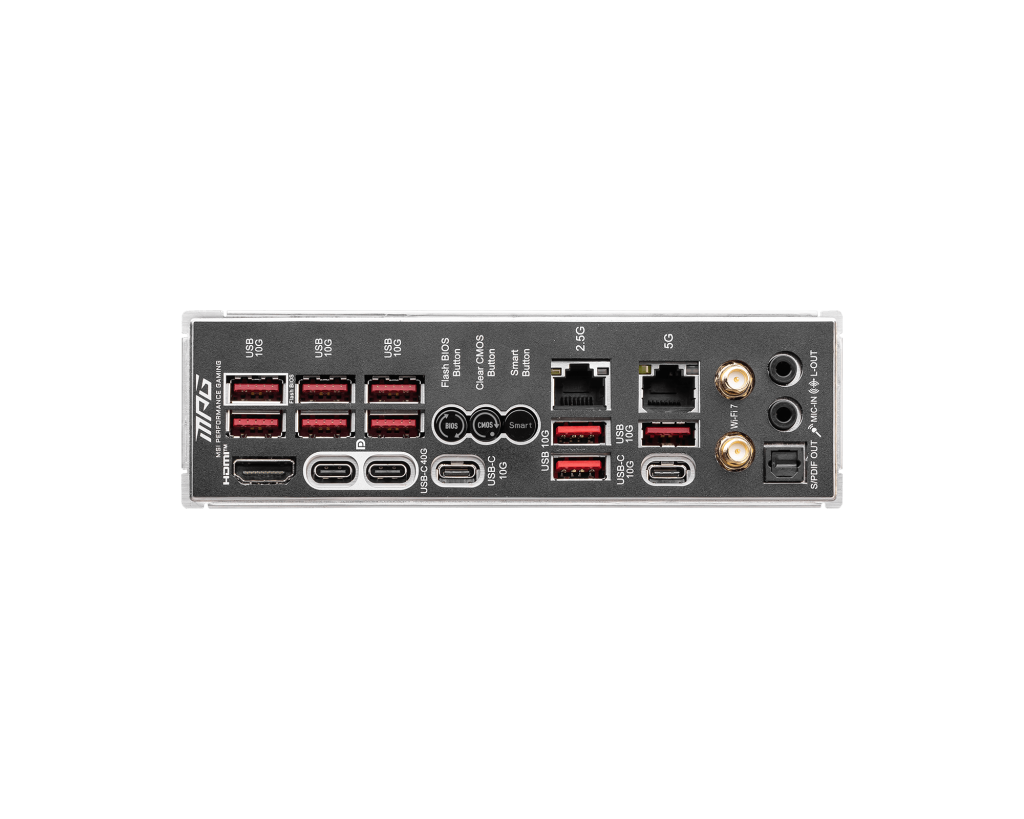

| Back Panel Ports |
|
| Operating System | Support For Windows11 64-Bit |
| Box Content |  |
| Pcb Info | Atx 243.84Mmx304.8Mm |
| Chipset | Amd X870E |
|---|---|
| Cpu | Supports Amd Ryzen„ 9000/ 8000/ 7000 Series Desktop Processors Socket Am5 |
| Memory | 4X Ddr5 Udimm, Maximum Memory Capacity 256Gb Memory Support Ddr5 8400 – 5600 (Oc) Mt/S / 5600 – 4800 (Jedec) Mt/S Ryzen„ 9000 Series Processors Max. Overclocking Frequency: € 1Dpc 1R Max Speed Up To 8400+ Mt/S € 1Dpc 2R Max Speed Up To 6400+ Mt/S € 2Dpc 1R Max Speed Up To 6400+ Mt/S € 2Dpc 2R Max Speed Up To 4800+ Mt/S Supports Amd Por Speed And Jedec Speed Supports Memory Overclocking And Amd ExpoTm Supports Dual-Channel Mode Supports Non-Ecc, Un-Buffered Memory Supports Cudimm, Clock Driver Bypass Mode Only* * Cudimm Support And Por Boot Frequency May Vary By Cpu Series, With Manual Overclocking Available After Boot. Certain Cpus May Fail To Boot, But Future Bios Updates Will Improve Compatibility. € The Dimm Slots On This Motherboard Have Double-Sided Latches. € Memory Compatibility And Supported Speeds Can Vary Depending On The Cpu And Memory Configuration. For Detailed Information, Please Refer To The Memory Compatibility List Available On The Product€™S Support Page Or Visit Https://Www.Msi.Com/Support/. |
| Onboard Graphics | 1X Hdmi„ Support HdmiTm2.1 With Frl Port, Maximum Resolution Of 8K 60Hz* 2X Type-C Displayport Usb4Port, Supporting Displayport 1.4 With Hbr3 Over Usb Type-C, Maximum Resolution Of 4K@60Hz* *Available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed. |
| Slot | 3X Pci-E X16 Slot Pci_E1 Gen Pcie 5.0 Supports Up To X16 (From Cpu) Pci_E2 Gen Pcie 5.0 Supports Up To X4 (From Cpu) Pci_E3 Gen Pcie 4.0 Supports Up To X4 (From Chipset) Pci_E1 &Amp; Pci_E2 Slots € Supports Pcie 5.0 X16/X0 Or X8/X4 (For Ryzen„ 9000/ 7000 Series Processors) € Supports Pcie 4.0 X8/X0 (For Ryzen„ 8700/ 8600/ 8400 Series Processors) € Supports Pcie 4.0 X4/X0 (For Ryzen„ 8500/ 8300 Series Processor) Pci_E3 Slot € Supports Up To Pcie 4.0 X4 * Pci_E1 &Amp; Pci_E2 &Amp; M.2_2 Share The Bandwidth, And Pcie Version Support Varies Depending On The Cpu. Please Refer To The Pcie Configuration Table In The Manual For More Details. |
| Audio | RealtekAlc4080 Codec 7.1-Channel Usb High-Performance Audio Supports Up To 32-Bit/384 Khz Playback On Front Panel Supports S/Pdif Output |
| Storage | 4X M.2 M.2_1 Source (From Cpu) Supports Up To Pcie 5.0 X4 , Supports 2280/2260 Devices M.2_2 Source (From Cpu) Supports Up To Pcie 5.0 X4 , Supports 2280/2260 Devices M.2_3 Source (From Chipset) Supports Up To Pcie 4.0 X4 , Supports 22110/2280 Devices M.2_4 Source (From Chipset) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices 4X Sata 6G M.2_1 Slot € Supports Up To Pcie 5.0 X4 (For Ryzen„ 9000/ 7000 Series Processors) € Supports Up To Pcie 4.0 X4 (For Ryzen„ 8000 Series Processors) M.2_2 Slot* € Supports Up To Pcie 5.0 X4 (For Ryzen„ 9000/ 7000 Series Processors) € The M2_2 Slot Will Be Unavailable When Using Ryzen„ 8000 Series Processors * Pci_E1 &Amp; Pci_E2 &Amp; M.2_2 Share The Bandwidth, And Pcie Version Support Varies Depending On The Cpu. Please Refer To The Pcie Configuration Table In The Manual For More Details. |
| Raid | €Supports Raid 0, Raid 1 And Raid 10 For Sata Storage Devices €Supports Raid 0, Raid 1 And Raid 10* For M.2 Nvme Storage Devices * Raid 10 For M.2 Nvme Storage Devices Is Only Supported By Amd Ryzen„ 9000/7000 Series Cpu. |
| Usb | 4X Usb 2.0 (Front) 4X Usb 5Gbps Type A (Front) 9X Usb 10Gbps Type A (Rear) 2X Usb 10Gbps Type C (Rear) 1X Usb 20Gbps Type C (Front) 2X Usb 40Gbps Type C (Rear) |
| Lan | 1X Realtek8126 5G Lan 1X Realtek8125 2.5G Lan |
| Internal Io | 1X Power Connector(Atx_Pwr) 2X Power Connector(Cpu_Pwr) 1X Power Connector(Pcie_Pwr 8Pin) 1X Cpu Fan 1X Combo Fan (Pump_Sys Fan) 5X System Fan 1X Ez Conn-Header (Jaf_2) 2X Front Panel (Jfp) 1X Chassis Intrusion (Jci) 1X Front Audio (Jaud) 1X Thermal Sensor Connectors(T_Sen) 3X Addressable V2 Rgb Led Connector (Jargb_V2) 1X Rgb Led Connector(Jrgb) 4X Usb 2.0 Ports 4X Usb 5Gbps Type A Ports 1X Usb 20Gbps Type C Ports |
| Wireless Lan &Amp; Bluetooth | Wi-Fi 7 Solution The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports Mu-Mimo Tx/Rx, 2.4Ghz/ 5Ghz/ 6Ghz* (320Mhz) Up To 5.8Gbps Supports 802.11 A/ B/ G/ N/ Ac/ Ax/ Be Supports Bluetooth5.4**, Mlo, 4Kqam * 6Ghz Band Support May Depend On Every Country€™S Regulations And Wi-Fi 7 Will Be Ready In Windows 11 Version 24H2. ** The Bluetooth Version May Be Updated, Please Refer To The Wi-Fi Chipset Vendor€™S Website For Details. Bluetooth 5.4 Will Be Ready In Windows 11 Version 24H2. |
| Led Feature | 4X Ez Debug Led 1X Ez Digit Debug Led |
| Back Panel Ports |
|
| Operating System | Support For Windows11 64-Bit |
| Box Content | |
| Pcb Info | Atx 243.84Mmx304.8Mm |
