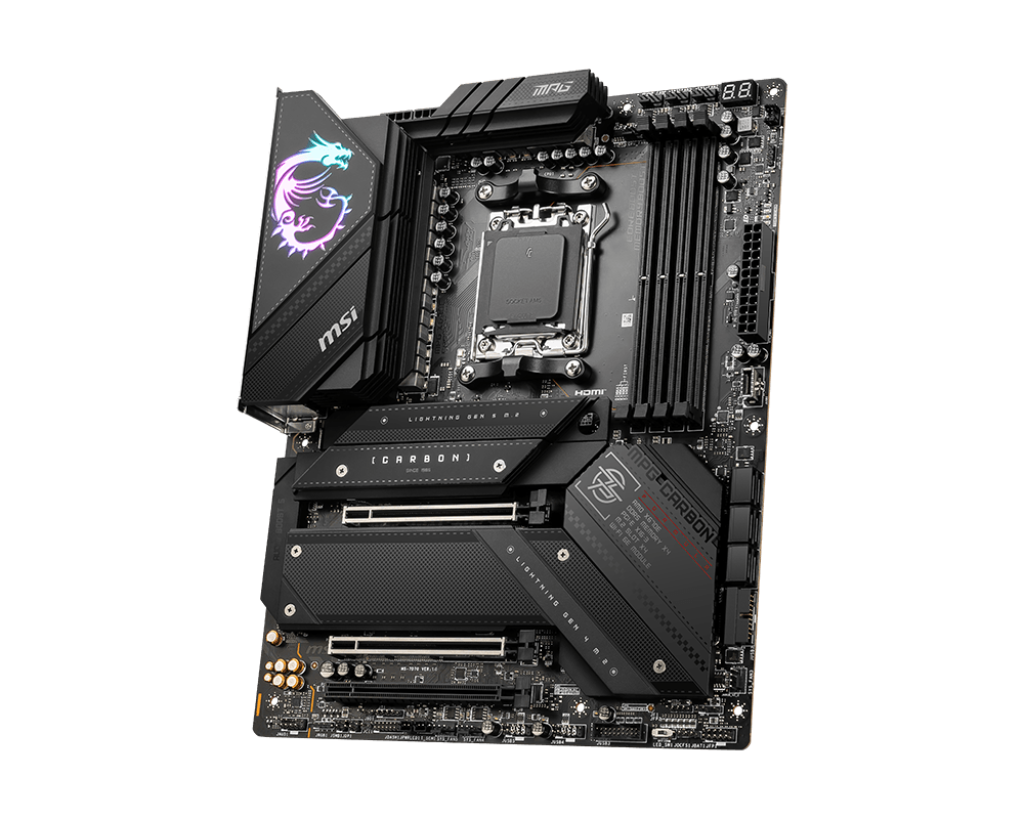

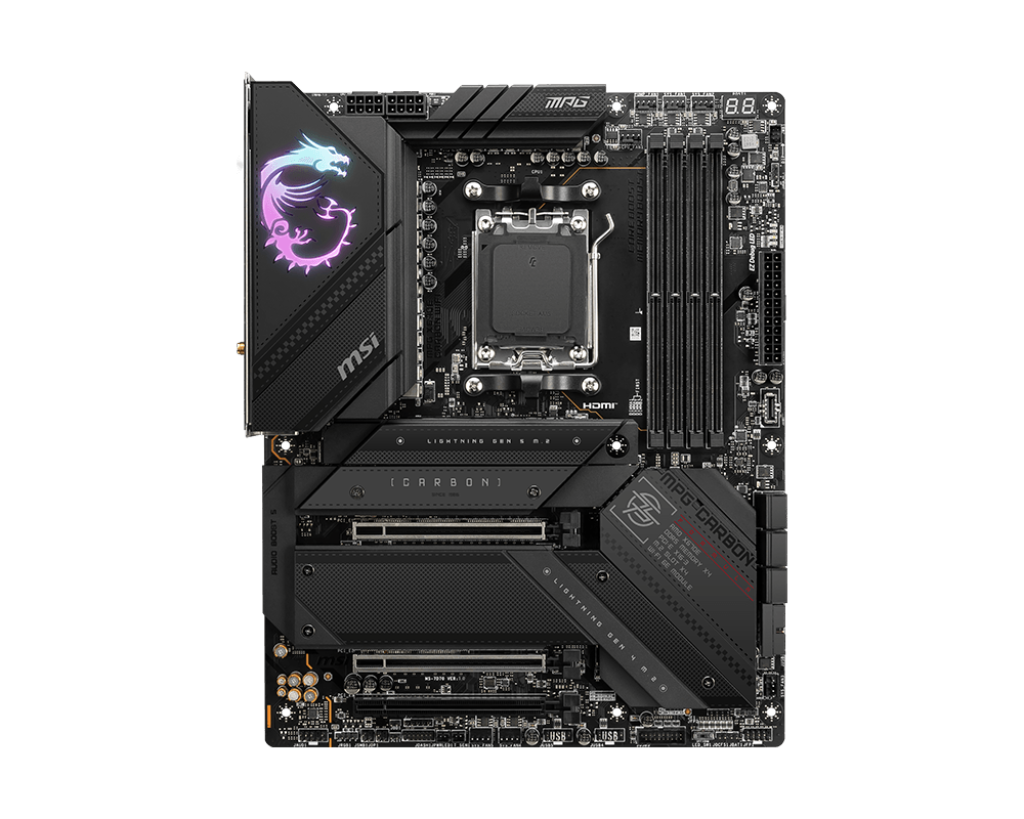

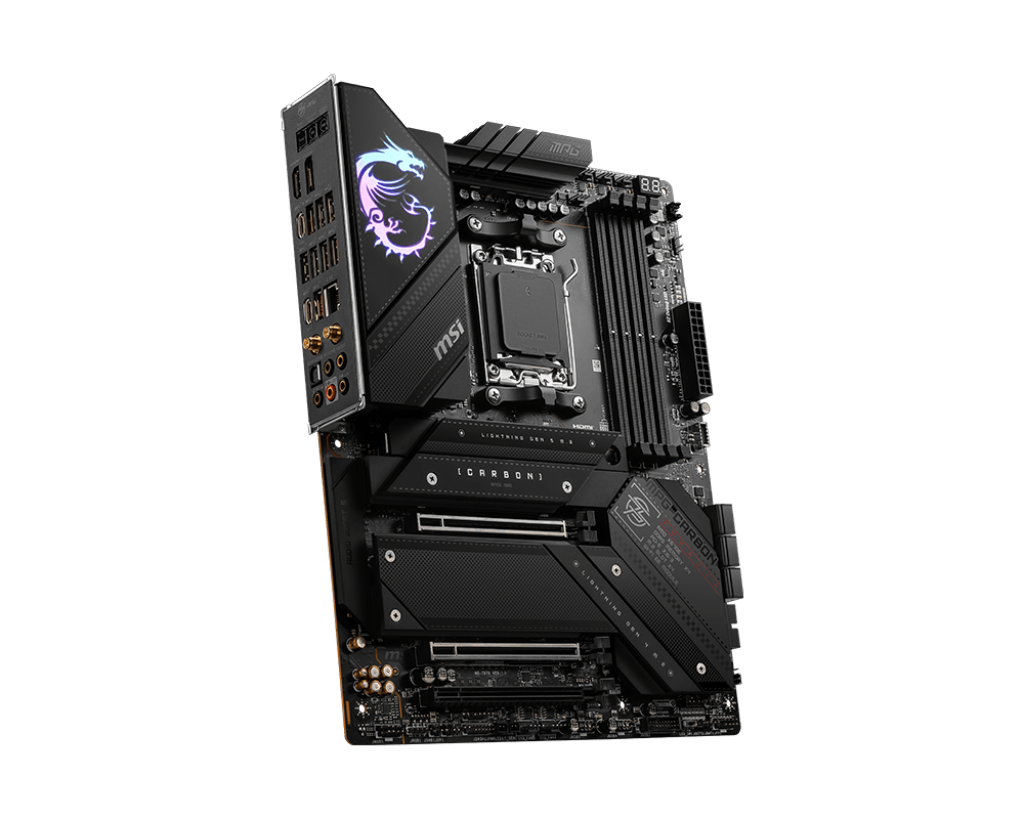

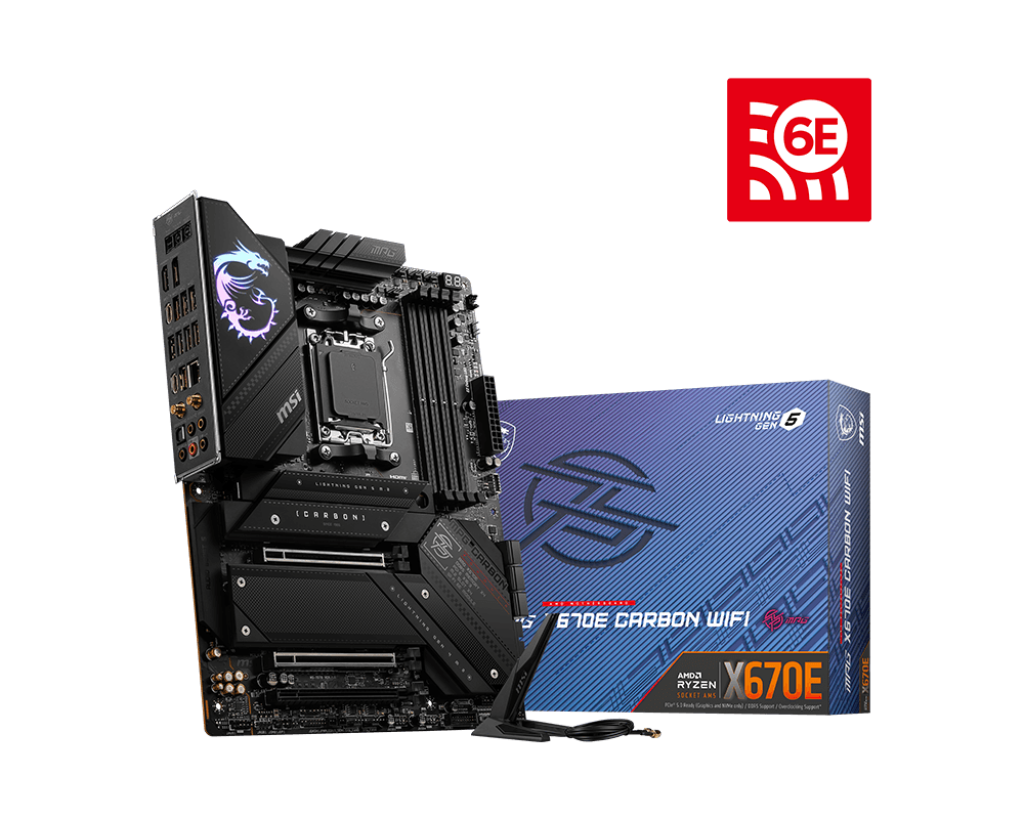

MSI Mpg X670E Carbon Motherboard
MSI Mpg X670E Carbon Motherboard - Image 2
MSI Mpg X670E Carbon Motherboard - Image 3
MSI Mpg X670E Carbon Motherboard - Image 4

MSI Mpg X670E Carbon Motherboard

In Stock
SKU : MSI-14 Product Type: Brand:
₹48,380

Specifications Chipset AMD X670 CPU Supports AMD Ryzen„ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 Memory 4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/

In Stock
Add to wishlist Compare
In Stock

Additional information

Specifications



Chipset AMD X670
CPU Supports AMD Ryzen„ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
€ 1DPC 1R Max speed up to 7800+ MHz
€ 1DPC 2R Max speed up to 6400+ MHz
€ 2DPC 1R Max speed up to 6400+ MHz
€ 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

Onboard Graphics 1x HDMI„
Support HDMITM2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 3x PCI-E x16 slot
€ Supports x16/x0/x4 or x8/x8/x4 (For Ryzen„ 9000 and 7000 Series processors)
€ Supports x8/x0/x4(For Ryzen„ 7 8700G and Ryzen„ 5 8600G processors)
€ Supports x4/x0/x4 (For Ryzen„ 5 8500G processor)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio RealtekALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
€ The M2_2 slot will be unavailable when using Ryzen„ 5 8500G processor
Multi-GPU AMD MULTI-GPU Support
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 2.0 ports (Rear)
4x USB 2.0 ports (Front)
4x USB 5Gbps Type A (Front)
6x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN RealtekRTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth5.3**

* Wi-Fi 6E 6GHz may depend on every country€™s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED FEATURE 1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED
BACK PANEL PORTS

  1. Clear CMOS Button
  2. Flash BIOS Button
  3. DisplayPort
  4. USB 2.0
  5. 2.5G LAN
  6. Audio Connectors
  7. Smart Button
  8. HDMI„
  9. USB 10Gbps (Type-C Display port)
  10. USB 10Gbps (Type-A)
  11. USB 20Gbps (Type-C)
  12. Wireless / Bluetooth
  13. S/PDIF-Out
OPERATING SYSTEM Support for Windows11 64-bit, Windows10 64-bit
BOX CONTENT
PCB Info ATX
304.8mmx243.84mm
Warranty 3 Years
