Specifications Model MAG X670E TOMAHAWK WIFI Chipset AMD X670 CPU SUPPORT Supports AMD Ryzen´ 7000 Series Desktop Processors Socket AM5 Memory 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5

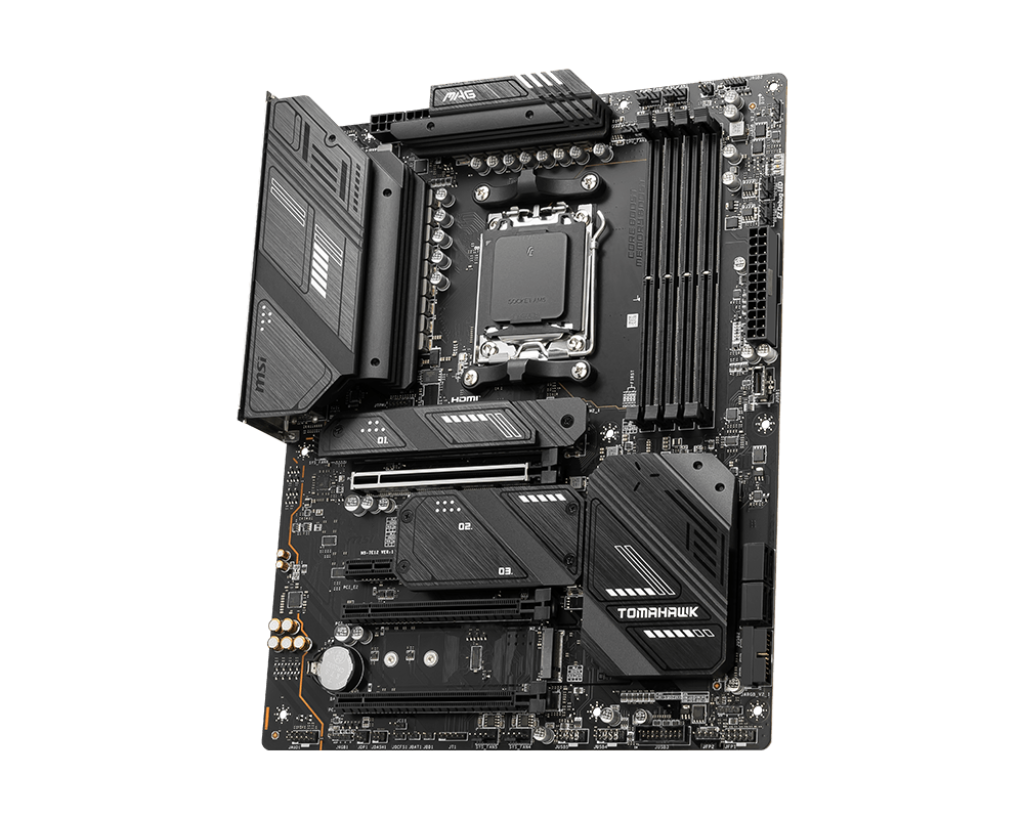

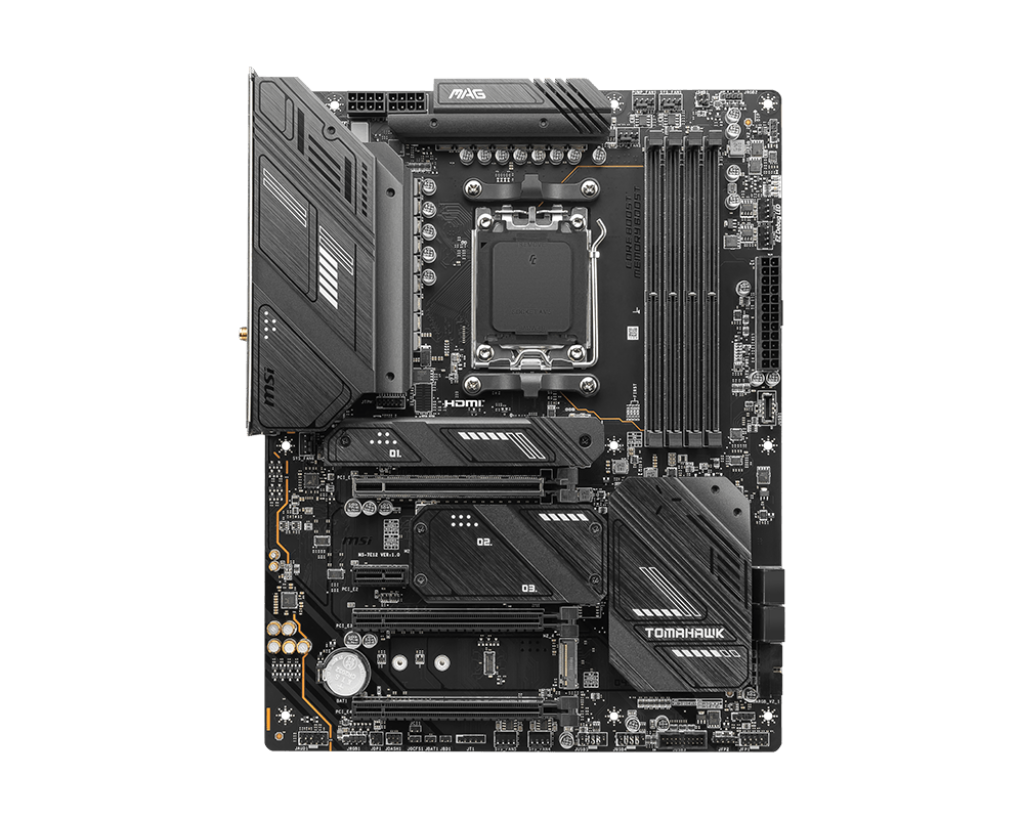

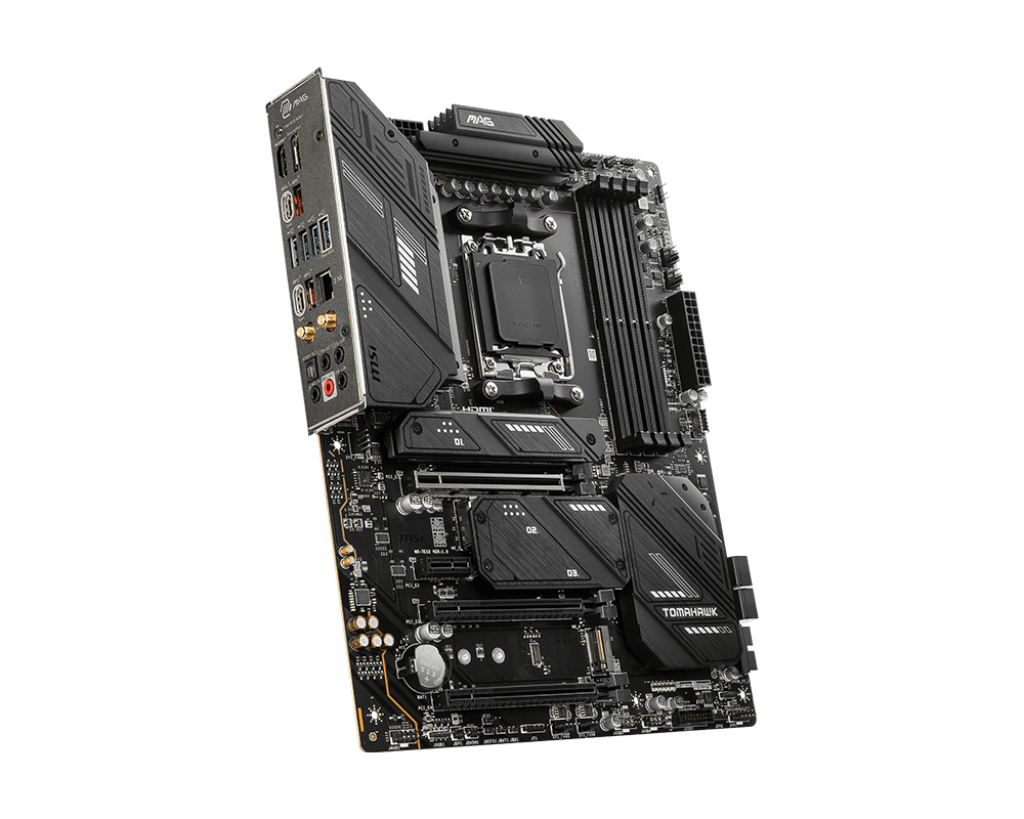

| Model | MAG X670E TOMAHAWK WIFI |
| Chipset | AMD X670 |
| CPU SUPPORT | Supports AMD Ryzen´ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB |
| Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| ¯ 1DPC 1R Max speed up to 6000+ MHz | |
| ¯ 1DPC 2R Max speed up to 6000+ MHz | |
| ¯ 2DPC 1R Max speed up to 6000+ MHz | |
| ¯ 2DPC 2R Max speed up to 5400+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO´ | |
| Onboard Graphics | 1x HDMI´ |
| Support HDMI´ 2.1 FRL, maximum resolution of 4K 120Hz* | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 4K 60Hz* | |
| 1x Type-C DisplayPort | |
| Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz | |
| EXPANSION SLOT | 3x PCI-E x16 slot |
| Supports x16/x4/x2 | |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU) | |
| PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset) | |
| Storage | 4x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 4x USB 3.2 Gen1 Type A (Front) | |
| 2x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| 1x USB 3.2 Gen2x2 Type C (Rear) | |
| LAN | Realtek RTL8125BG 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth 5.3 | |
| Audio | Realtek ALC1200 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 4x USB 3.2 Gen1 Type A ports | |
| 1x USB 3.2 Gen2 Type C ports | |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | DisplayPort |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 2 5Gbps (Type-A) | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio Connectors | |
| Flash BIOS Button | |
| HDMI´ | |
| USB 3.2 Gen 2 10Gbps (Type-C Display port) | |
| USB 3.2 Gen 2×2 20Gbps (Type-C) | |
| S/PDIF-Out | |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Dimension (W L) | ATX |
| 243.84mmx304.8mm | |
| Warranty | 3 Years |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice. Warranty: 3 years
