Product Name Mag Pano 100R Pz Case Form Factor Mid Tower Motherboard Form Factor Support Regular: Atx / Micro-Atx / Mini-Itx Back-Connect: Atx / Micro-Atx I/O Ports 1 X Usb 20Gbps Type-C 2 X Usb 5Gbps Type-A 1 X Audio-Out / Mic-In 1 X Led Switch Button 1

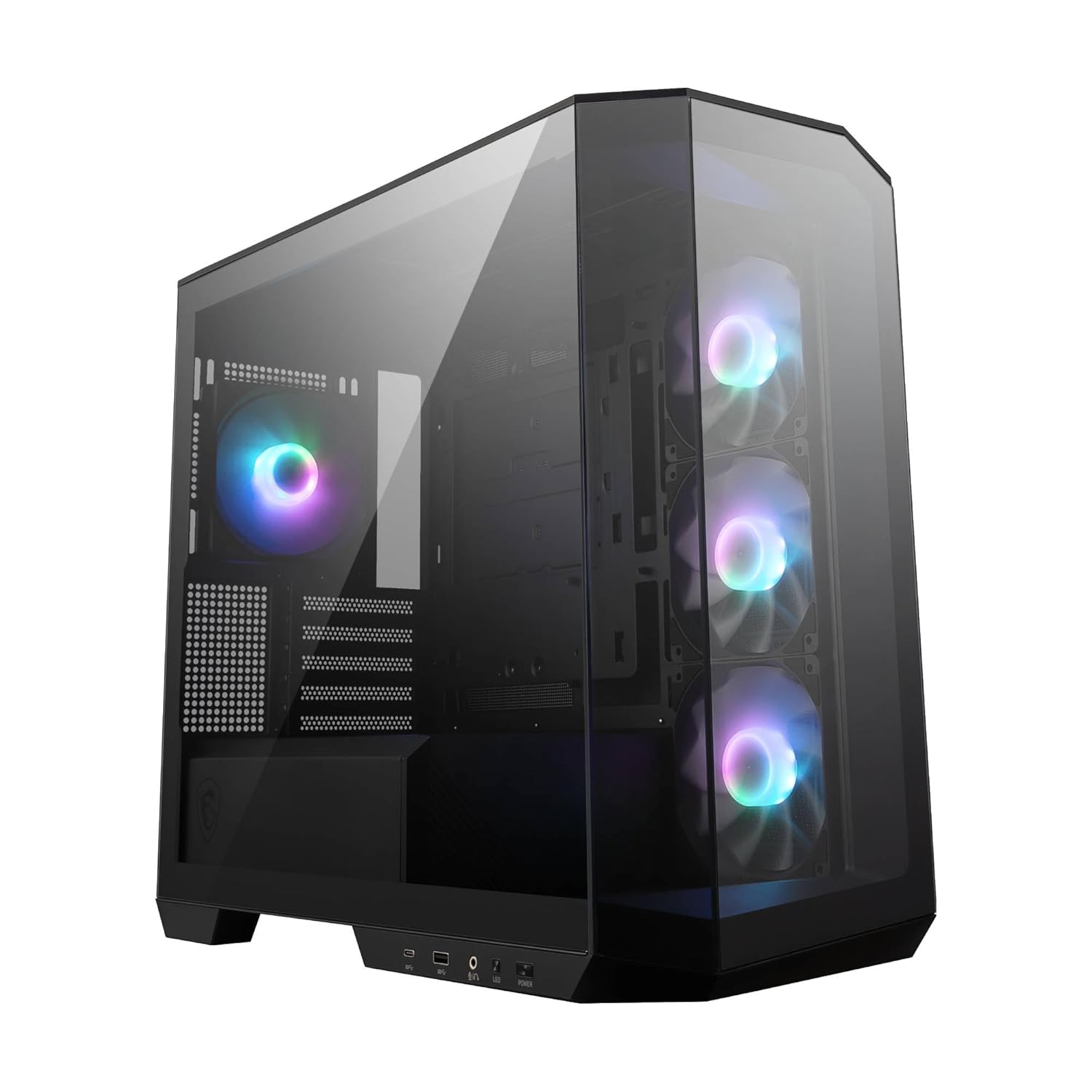

| Product Name | Mag Pano 100R Pz |
| Case Form Factor | Mid Tower |
| Motherboard Form Factor Support | Regular: Atx / Micro-Atx / Mini-Itx |
| Back-Connect: Atx / Micro-Atx | |
| I/O Ports | 1 X Usb 20Gbps Type-C |
| 2 X Usb 5Gbps Type-A | |
| 1 X Audio-Out / Mic-In | |
| 1 X Led Switch Button | |
| 1 X Power Button | |
| Drive Mount Support | 3 X 2.5€ |
| 2 X 2.5€/3.5€ Combo | |
| Expansion Slots | 8 |
| Maximum Gpu Length | 400 Mm / 15.75 Inches |
| Maximum Cpu Cooler Height | 166 Mm / 6.54 Inches |
| Power Supply Support | Atx |
| Maximum Psu Length | 200 Mm / 7.87 Inches |
| Fan Size Support | Top: 3 X 120 Mm / 3 X 140 Mm |
| Front: Na | |
| Rear: 1 X 120 Mm | |
| Side: 3 X 120 Mm / 2 X 140 Mm | |
| Bottom: 3 X 120 Mm / 2 X 140 Mm / 2 X 160 Mm | |
| Pre-Installed Fan Size | Side: 3 X 120 Mm |
| Rear: 1 X 120 Mm | |
| Pre-Installed Fan Type | Side: 3 X Argb Reverse-Blade |
| Rear: 1 X Argb | |
| Radiator Size Support | Top: 120 / 240 / 360 Mm |
| Front: Na | |
| Rear: 120 Mm | |
| Side: 120 / 240 / 360 Mm | |
| Bottom: 120 / 240 / 360 Mm | |
| Dimensions (Dxwxh) | 518.7 X 290 X 482 Mm / 20.42 X 11.42 X 18.98 Inches |
| Warranty | 1 Year |
| Product Name | Mag Pano 100R Pz |
| Case Form Factor | Mid Tower |
| Motherboard Form Factor Support | Regular: Atx / Micro-Atx / Mini-Itx |
| Back-Connect: Atx / Micro-Atx | |
| I/O Ports | 1 X Usb 20Gbps Type-C |
| 2 X Usb 5Gbps Type-A | |
| 1 X Audio-Out / Mic-In | |
| 1 X Led Switch Button | |
| 1 X Power Button | |
| Drive Mount Support | 3 X 2.5€ |
| 2 X 2.5€/3.5€ Combo | |
| Expansion Slots | 8 |
| Maximum Gpu Length | 400 Mm / 15.75 Inches |
| Maximum Cpu Cooler Height | 166 Mm / 6.54 Inches |
| Power Supply Support | Atx |
| Maximum Psu Length | 200 Mm / 7.87 Inches |
| Fan Size Support | Top: 3 X 120 Mm / 3 X 140 Mm |
| Front: Na | |
| Rear: 1 X 120 Mm | |
| Side: 3 X 120 Mm / 2 X 140 Mm | |
| Bottom: 3 X 120 Mm / 2 X 140 Mm / 2 X 160 Mm | |
| Pre-Installed Fan Size | Side: 3 X 120 Mm |
| Rear: 1 X 120 Mm | |
| Pre-Installed Fan Type | Side: 3 X Argb Reverse-Blade |
| Rear: 1 X Argb | |
| Radiator Size Support | Top: 120 / 240 / 360 Mm |
| Front: Na | |
| Rear: 120 Mm | |
| Side: 120 / 240 / 360 Mm | |
| Bottom: 120 / 240 / 360 Mm | |
| Dimensions (Dxwxh) | 518.7 X 290 X 482 Mm / 20.42 X 11.42 X 18.98 Inches |
| Warranty | 1 Year |
