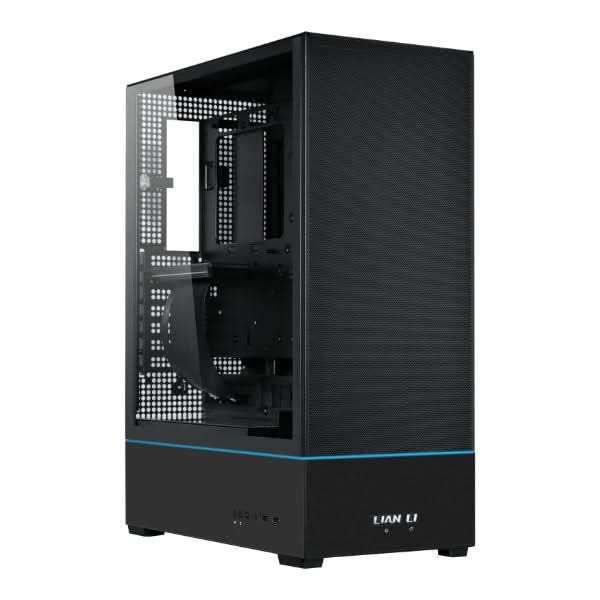

LIAN LI SUP01 (ATX) MID TOWER CABINET (BLACK)
About this item: Black, Mini-Tower, (D) 403.45mm x (W) 212mm x (H) 534mm, 4.0mm Tempered Glass EXPANSION SLOTS : 7 (for low profile card), 4 (for standard profile card with extension cable) ; DRIVE SUPPORT : Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD, Above
Additional information
About this item:
Black, Mini-Tower, (D) 403.45mm x (W) 212mm x (H) 534mm, 4.0mm Tempered Glass
EXPANSION SLOTS : 7 (for low profile card), 4 (for standard profile card with extension cable) ; DRIVE SUPPORT : Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD, Above PSU shroud:2 × 2.5” SSD
IO ports: 1 x Power Button, 1 x Reset Button, 2x USB 3.0, TYPE-A, 1x USB 3.1 TYPE-C, 1x Mic, 1 x Light Color Button (C), 1 x Light Mode Button (M)
FAN SUPPORT : Side 1: 3 x 120mm, Side 2: 3 x 120mm or 2 x 140mm, Rear exterior: 1 x 120mm
Includes 510mm PCIe 4.0 riser cable with an RGB lighting cover that shares the same lighting effects with the case ARGB strip
Specifications:
| MODEL NAME | SUP01 | |
|---|---|---|
| MODEL NO. | SUP01X BLACK | SUP01W WHITE |
| COLOR | Black | White |
| CASE TYPE | Small Tower Case | |
| DIMENSION | (D) 403.45mm x (W) 212mm x (H) 534mm (D) 403.45mm x (W) 212mm x (H) 524mm (w/o feet) |
|
| CAPACITY | 44.8L | |
| MATERIAL | Steel 4.0mm Tempered Glass |
|
| RISER CABLE TYPE | PCIE 4.0 | |
| MOTHERBOARD SUPPORT | ATX/M-ATX/ITX ATX Back Connect |
|
| PSU SUPPORT | ATX (Max 220mm) | |
| INCLUDED FAN | 3 x 120mm PWM | |
| FAN SUPPORT | Side 1: 3 x 120mm Side 2: 3 x 120mm or 2 x 140mm Rear exterior: 1 x 120mm |
|
| RADIATOR SUPPORT | Side 2: 360mm or 280mm | |
| DRIVE SUPPORT | Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD Above PSU shroud:2 × 2.5” SSD |
|
| GPU LENGTH CLEARANCE | Max 400mm | |
| CPU HEIGHT CLEARANCE | Max 88.2mm | |
| EXPANSION SLOTS | 7 (for low profile card) 4 (for standard profile card with extension cable) |
|
| I/O PORTS | 1 x Power Button 1 x Reset Button 2x USB 3.0 TYPE-A 1x USB 3.1 TYPE-C 1x Mic 1 x Light Color Button (C) 1 x Light Mode Button (M) |
|
| DUST FILTER | 1 x bottom tray 1 x front magnatic 1 x top magnatic |
|
| WARRANTY | 1 year | |
Description
About this item:
Black, Mini-Tower, (D) 403.45mm x (W) 212mm x (H) 534mm, 4.0mm Tempered Glass
EXPANSION SLOTS : 7 (for low profile card), 4 (for standard profile card with extension cable) ; DRIVE SUPPORT : Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD, Above PSU shroud:2 × 2.5” SSD
IO ports: 1 x Power Button, 1 x Reset Button, 2x USB 3.0, TYPE-A, 1x USB 3.1 TYPE-C, 1x Mic, 1 x Light Color Button (C), 1 x Light Mode Button (M)
FAN SUPPORT : Side 1: 3 x 120mm, Side 2: 3 x 120mm or 2 x 140mm, Rear exterior: 1 x 120mm
Includes 510mm PCIe 4.0 riser cable with an RGB lighting cover that shares the same lighting effects with the case ARGB strip
Specifications:
| MODEL NAME | SUP01 | |
|---|---|---|
| MODEL NO. | SUP01X BLACK | SUP01W WHITE |
| COLOR | Black | White |
| CASE TYPE | Small Tower Case | |
| DIMENSION | (D) 403.45mm x (W) 212mm x (H) 534mm (D) 403.45mm x (W) 212mm x (H) 524mm (w/o feet) |
|
| CAPACITY | 44.8L | |
| MATERIAL | Steel 4.0mm Tempered Glass |
|
| RISER CABLE TYPE | PCIE 4.0 | |
| MOTHERBOARD SUPPORT | ATX/M-ATX/ITX ATX Back Connect |
|
| PSU SUPPORT | ATX (Max 220mm) | |
| INCLUDED FAN | 3 x 120mm PWM | |
| FAN SUPPORT | Side 1: 3 x 120mm Side 2: 3 x 120mm or 2 x 140mm Rear exterior: 1 x 120mm |
|
| RADIATOR SUPPORT | Side 2: 360mm or 280mm | |
| DRIVE SUPPORT | Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD Above PSU shroud:2 × 2.5” SSD |
|
| GPU LENGTH CLEARANCE | Max 400mm | |
| CPU HEIGHT CLEARANCE | Max 88.2mm | |
| EXPANSION SLOTS | 7 (for low profile card) 4 (for standard profile card with extension cable) |
|
| I/O PORTS | 1 x Power Button 1 x Reset Button 2x USB 3.0 TYPE-A 1x USB 3.1 TYPE-C 1x Mic 1 x Light Color Button (C) 1 x Light Mode Button (M) |
|
| DUST FILTER | 1 x bottom tray 1 x front magnatic 1 x top magnatic |
|
| WARRANTY | 1 year | |
