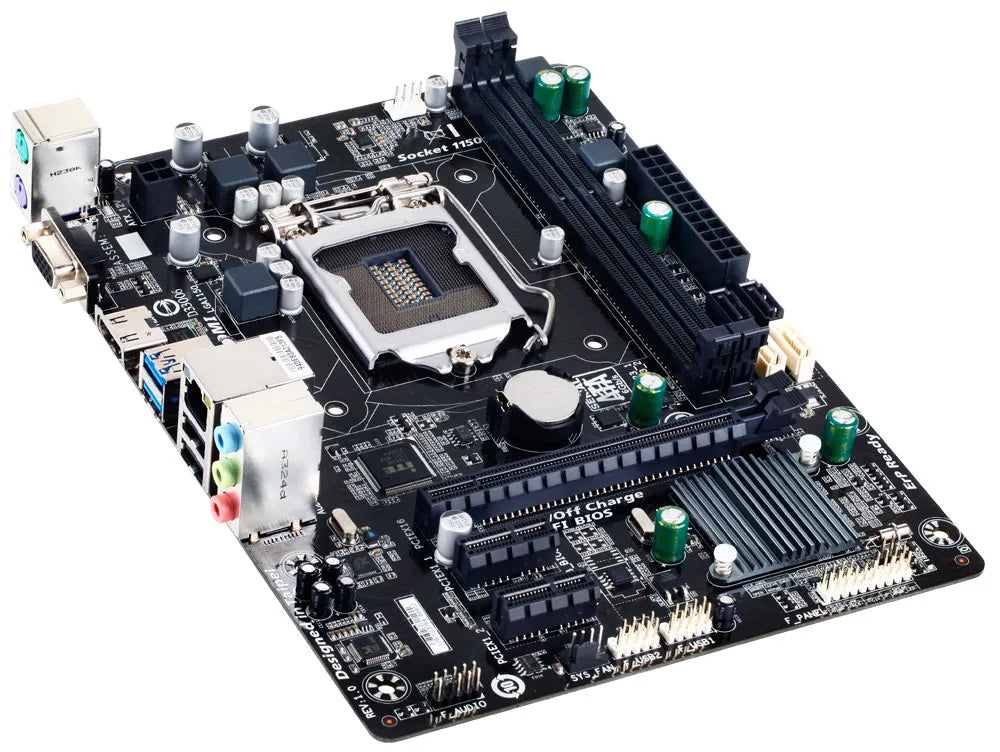

Specifications CPU 1. Support for IntelCore´ i7 processors/IntelCore´ i5 processors/IntelCore´ i3 processors/IntelPentiumprocessors/IntelCeleronprocessors in the LGA1150 package 2. L3 cache varies with CPU (Please refer “CPU Support List”
|
CPU
|
1. Support for IntelCore´ i7 processors/IntelCore´ i5 processors/IntelCore´ i3 processors/IntelPentiumprocessors/IntelCeleronprocessors in the LGA1150 package |
| 2. L3 cache varies with CPU | |
| (Please refer “CPU Support List” for more information.) | |
|
Chipset
|
1. IntelH81 Express Chipset |
|
Memory
|
1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory |
| * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. | |
| 2. Dual channel memory architecture | |
| 3. Support for DDR3 1600/1333 MHz memory modules | |
| 4. Support for non-ECC memory modules | |
| 5. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
|
Onboard Graphics
|
Integrated Graphics Processor – IntelHD Graphics support:
|
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200 | |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz | |
| * Support for HDMI 1.4a version. | |
| 3. Maximum shared memory of 1 GB | |
|
Audio
|
1. RealtekALC887 codec |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
|
LAN
|
1. RealtekGbE LAN chip (10/100/1000 Mbit) |
|
Expansion Slots
|
1. 1 x PCI Express x16 slot, running at x16 |
| 2. 2 x PCI Express x1 slots | |
| (The PCI Express slots conform to PCI Express 2.0 standard.) | |
|
Storage Interface
|
Chipset:
|
| 1. 2 x SATA 6Gb/s connectors (SATA3 0/1) | |
| 2. 2 x SATA 3Gb/s connectors (SATA2 2/3) | |
|
USB
|
Chipset:
|
| 1. 2 x USB 3.0/2.0 ports on the back panel | |
| 2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
|

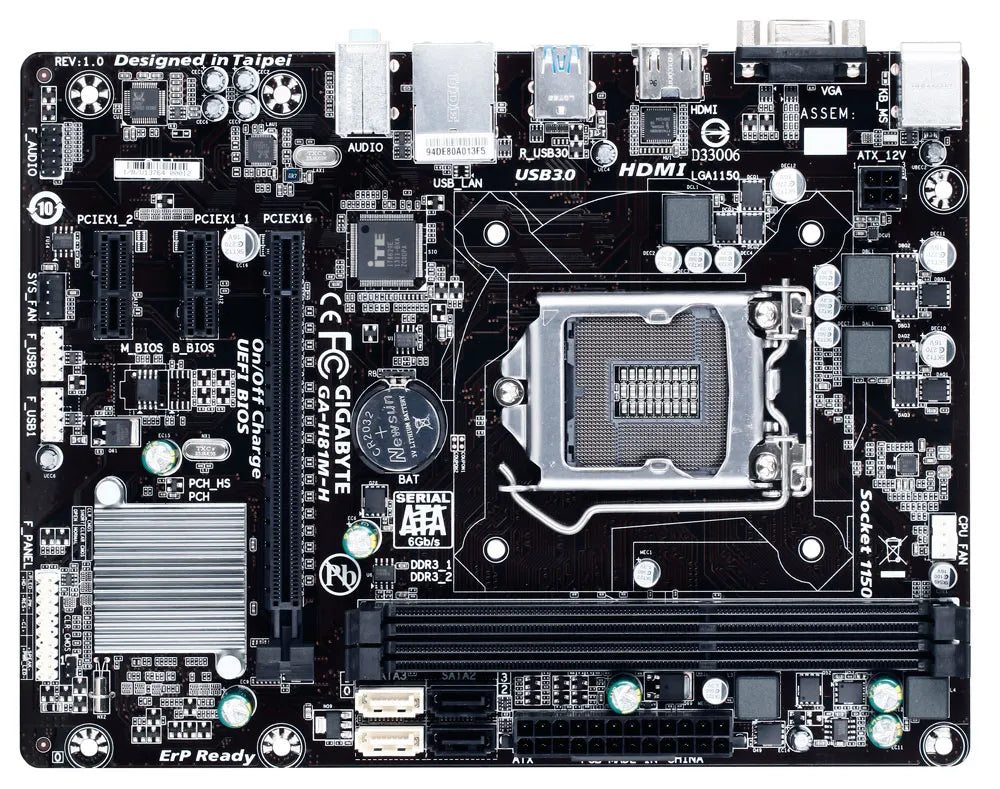

Internal I/O Connectors
|
1. 1 x 24-pin ATX main power connector |
| 2. 1 x 4-pin ATX 12V power connector | |
| 3. 2 x SATA 6Gb/s connectors | |
| 4. 2 x SATA 3Gb/s connectors | |
| 5. 1 x CPU fan header | |
| 6. 1 x system fan header | |
| 7. 1 x front panel header | |
| 8. 1 x front panel audio header | |
| 9. 2 x USB 2.0/1.1 headers | |
| 10. 1 x Clear CMOS jumper | |
|

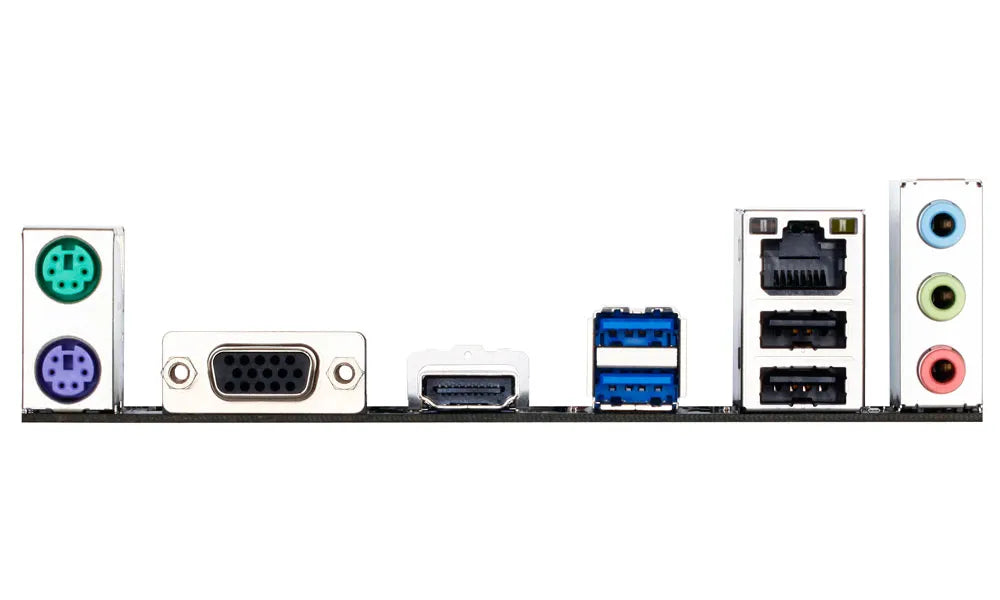

Back Panel Connectors
|
1. 1 x PS/2 mouse port |
| 2. 1 x PS/2 Keyboard port | |
| 3. 1 x D-Sub port | |
| 4. 1 x HDMI port | |
| 5. 2 x USB 3.0/2.0 ports | |
| 6. 2 x USB 2.0/1.1 ports | |
| 7. 1 x RJ-45 port | |
| 8. 3 x audio jacks (Line In, Line Out, Mic In) | |
|
I/O Controller
|
1. iTEI/O Controller Chip |
|
H/W Monitoring
|
1. System voltage detection |
| 2. CPU/System temperature detection | |
| 3. CPU/System fan speed detection | |
| 4. CPU/System overheating warning | |
| 5. CPU/System fan fail warning | |
| 6. CPU/System fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
|
BIOS
|
1. 1 x 32 Mbit flash |
| 2. Use of licensed AMI EFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
|
Unique Features
|
1. Support for Q-Flash |
| 2. Support for Xpress Install | |
| 3. Support for APP Center | |
| * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| EZ Setup | |
| USB Blocker | |
| Smart TimeLock | |
| Smart Recovery 2 | |
| 4. Support for ON/OFF Charge | |
|
Bundle Software
|
1. NortonInternet Security (OEM version) |
|
Operating System
|
1. Support for Windows 10/8.1/8/7 |
|
Form Factor
|
1. Micro ATX Form Factor; 22.6cm x 17cm |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
|
