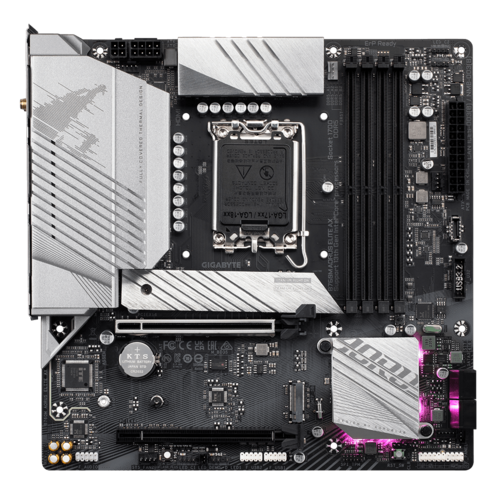

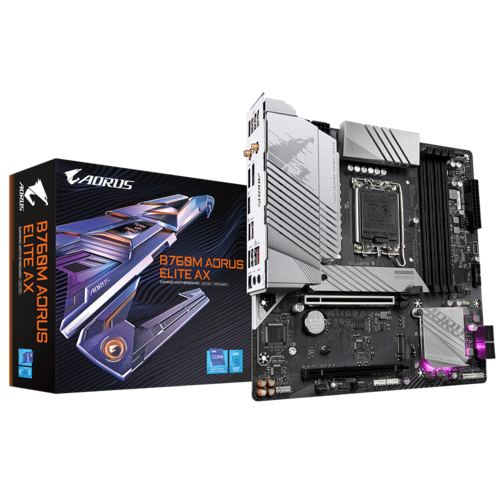

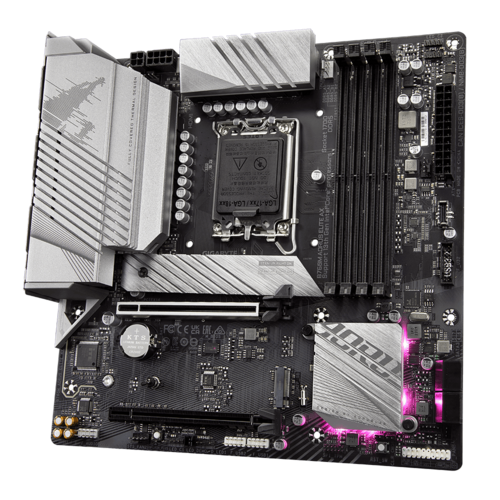

LG Gigabyte Ga B760M Aorus Elite
LG Gigabyte Ga B760M Aorus Elite - Image 2
LG Gigabyte Ga B760M Aorus Elite - Image 3
LG Gigabyte Ga B760M Aorus Elite - Image 4

LG Gigabyte Ga B760M Aorus Elite

In Stock
SKU : 1084525 Product Type: Brand:
₹19,665

Specifications CPU 1. LGA1700 socket: Support for the 13th and 12th Generation Intel†Core´, Pentium†Gold and Celeron†Processors* 2. L3 cache varies with CPU Chipset 1. Intel†B760 Express Chipset Memory 1. Support for DDR5 7600(O.C.) / 7400(O.C.) / 72

In Stock
Add to wishlist Compare
In Stock

Additional information

Specifications

CPU 1. LGA1700 socket: Support for the 13th and 12th Generation Intel†Core´, Pentium†Gold and Celeron†Processors*
2. L3 cache varies with CPU
Chipset 1. Intel†B760 Express Chipset
Memory 1. Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel†HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096—Š2160@60Hz
* Support for HDMI 2.0 version and HDCP 2.3.
2. 1 x DisplayPort, supporting a maximum resolution of 4096—Š2304@60Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Audio 1. Realtek†Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out
LAN 1. Realtek†2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel†Wi-Fi 6E AX211
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Support for AMD CrossFireX´ technology
Storage Interface CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:
1. 1 x USB Type-C†port on the back panel, with USB 3.2 Gen 2—Š2 support
2. 1 x USB Type-C†port with USB 3.2 Gen 2 support, available through the internal USB header
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4. 1 x USB 3.2 Gen 1 port on the back panel
5. 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 3 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 2 x M.2 Socket 3 connectors
9. 4 x SATA 6Gb/s connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x USB Type-C†header, with USB 3.2 Gen 2 support
13. 1 x USB 3.2 Gen 1 header
14. 2 x USB 2.0/1.1 headers
15. 2 x Thunderbolt´ add-in card connectors
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17. 1 x Q-Flash Plus button
18. 1 x reset button
19. 1 x reset jumper
20. 1 x Clear CMOS jumper
Back Panel Connectors 1. 1 x USB Type-C†port, with USB 3.2 Gen 2—Š2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red)
3. 3 x USB 3.2 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 1 x HDMI port
6. 1 x DisplayPort
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 2 x audio jacks
I/O Controller 1. iTE†I/O Controller Chip
H/W Monitoring 1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
BIOS 1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Feature 1. Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
Bundled Software 1. Norton†Internet Security (OEM version)
2. LAN bandwidth management software
Operating System 1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor 1. Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
