Specifications: Category Details Brand Biostar Model ID H61IL Form Factor Mini-ITX Socket Type LGA 1155 Compatible Processors Intel Core i7 / i5 / i3, Pentium, Celeron Chipset Intel H61 Chipset Manufacturer Intel Memory Slots 2 Slots Memory Configuration
| Category | Details |
|---|---|
| Brand | Biostar |
| Model ID | H61IL |
| Form Factor | Mini-ITX |
| Socket Type | LGA 1155 |
| Compatible Processors | Intel Core i7 / i5 / i3, Pentium, Celeron |
| Chipset | Intel H61 |
| Chipset Manufacturer | Intel |
| Memory Slots | 2 Slots |
| Memory Configuration | Up to 16 GB DDR3 Dual Channel DIMM |
| Memory Frequency | 2000(O.C), 1800(O.C), 1600, 1333 MHz |
| ECC Support | Non-ECC |
| Audio Codec | VIA VT1708S |
| Audio Channels | 6 |
| Audio Features | Supports HD Audio |
| Ethernet Controller | Atheros AR8152 |
| Ethernet Speed | 10/100 Mbps |
| Expansion Slots | 1 x PCIe x1 (Gen 1, 2) |
| SATA Headers | 2 x SATA 3 Gb/s |
| USB 2.0 Headers | 1 |
| Fan Headers | 1 x CPU Fan, 1 x System Fan |
| Front Panel Headers | 2 |

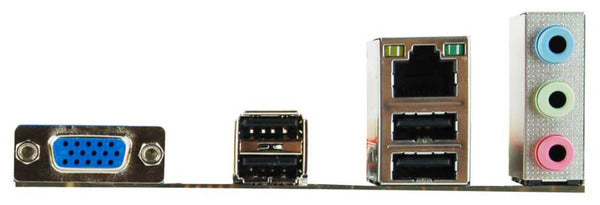

| Back Panel Ports | 4 x USB 2.0, 1 x VGA/D-Sub, 3 x Audio Jacks, 1 x RJ-45 Ethernet |
| OS Support | Windows XP and Above |
| BIOS | H61BI424.BSS |
| Features | BIO-Remote 2, Solid Capacitor, BIOS-Flasher, Charger Booster |
| Advanced Technologies | eHot-Line Utility |
| Dimensions | 170 x 170 mm |
| In The Box | 1 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x Quick Guide |
| Warranty | 3 Years Biostar India Warranty + Free Transit Insurance |
| Warranty Contact | 1800221988 |
| Covered in Warranty | Manufacturing Defects |
| Not Covered | Tampering, Burnt, Mishandling, Physical Damage |
| Service Type | Carry In |
