Product Features Exclusively Designed for Y60 Custom cooling enthusiasts can take full advantage of Y60’s corner glass to elevate their custom loops Showcase Your Coolant Flow The aesthetic distribution plate design prioritizes displaying the flow of your
Exclusively Designed for Y60
Custom cooling enthusiasts can take full advantage of Y60’s corner glass to elevate their custom loops
Showcase Your Coolant Flow
The aesthetic distribution plate design prioritizes displaying the flow of your coolant front and center
Illuminate the Plate With RGB
17 addressable RGB LEDs light up the interior with deep rich color via a 3-pin 5V ARGB header
Bring Your Own Pump
Compatible with both D5 and DDC pumps for a wide range of custom loop possibilities
Four Separate Flow Chambers
Enables precise routing of coolant between radiators and water blocks
Dual Radiator Setup
Provides cooling for both the CPU and GPU
| Specification | Detail |

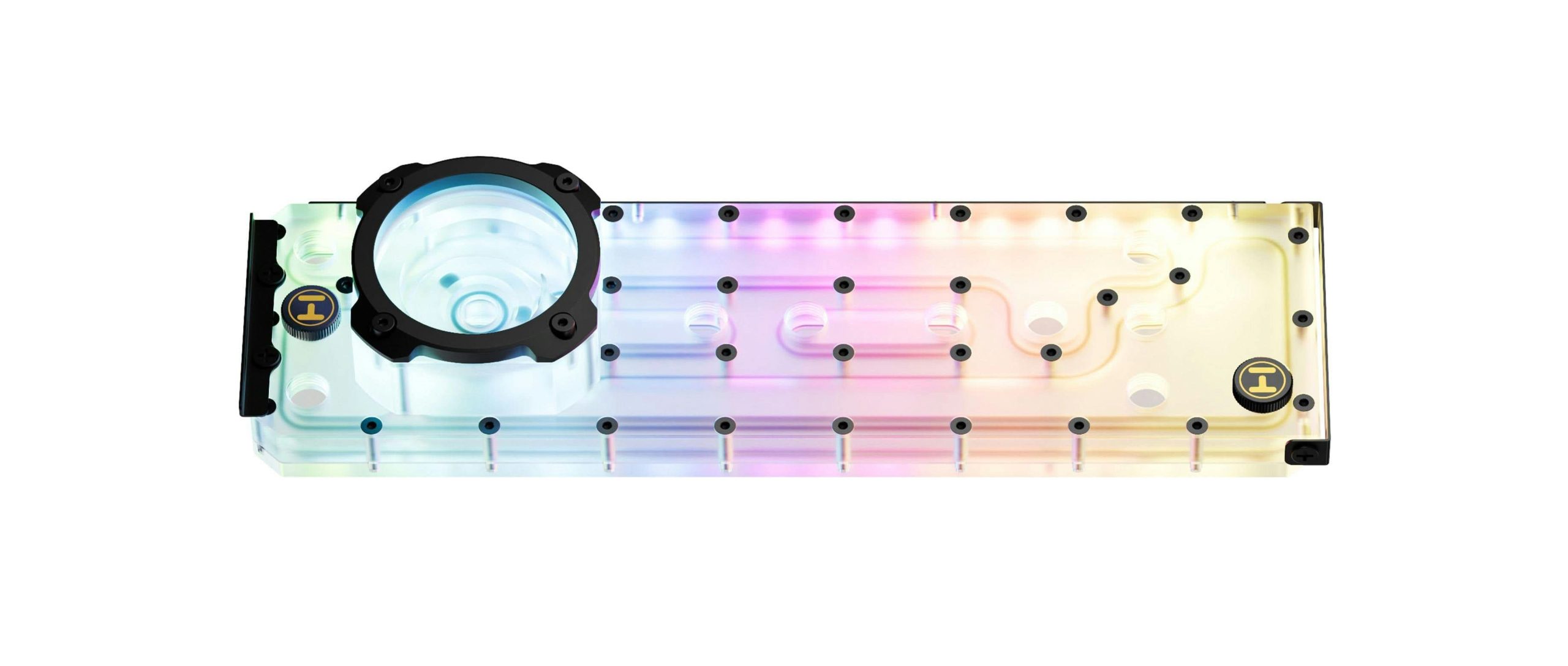

| Product | Distribution Plate for Y60 |
| Materials | Acrylic, Silicone, Steel, POM |
| Thread | G1/4 |
| Distro Plate Assembled | Yes |
| D5 Pump Top w/ O-ring | Yes – Pre-Installed |
| D5 Pump Retention | Yes |
| D5 Mounting Screws | Yes |
| DDC Pump Top w/ O-ring | Yes |
| DDC Mounting Screws | Yes |
| Included Stop Fitting | 2 |
| Included Pump | No |
| Included LEDs | 17 |
| Addressable RGB | Yes, 3-Pin 5V |
| SKU | CS-HYTE-Y60-DISTRO |
Exclusively Designed for Y60
Custom cooling enthusiasts can take full advantage of Y60’s corner glass to elevate their custom loops
Showcase Your Coolant Flow
The aesthetic distribution plate design prioritizes displaying the flow of your coolant front and center
Illuminate the Plate With RGB
17 addressable RGB LEDs light up the interior with deep rich color via a 3-pin 5V ARGB header
Bring Your Own Pump
Compatible with both D5 and DDC pumps for a wide range of custom loop possibilities
Four Separate Flow Chambers
Enables precise routing of coolant between radiators and water blocks
Dual Radiator Setup
Provides cooling for both the CPU and GPU
| Specification | Detail |
| Product | Distribution Plate for Y60 |
| Materials | Acrylic, Silicone, Steel, POM |
| Thread | G1/4 |
| Distro Plate Assembled | Yes |
| D5 Pump Top w/ O-ring | Yes – Pre-Installed |
| D5 Pump Retention | Yes |
| D5 Mounting Screws | Yes |
| DDC Pump Top w/ O-ring | Yes |
| DDC Mounting Screws | Yes |
| Included Stop Fitting | 2 |
| Included Pump | No |
| Included LEDs | 17 |
| Addressable RGB | Yes, 3-Pin 5V |
| SKU | CS-HYTE-Y60-DISTRO |
