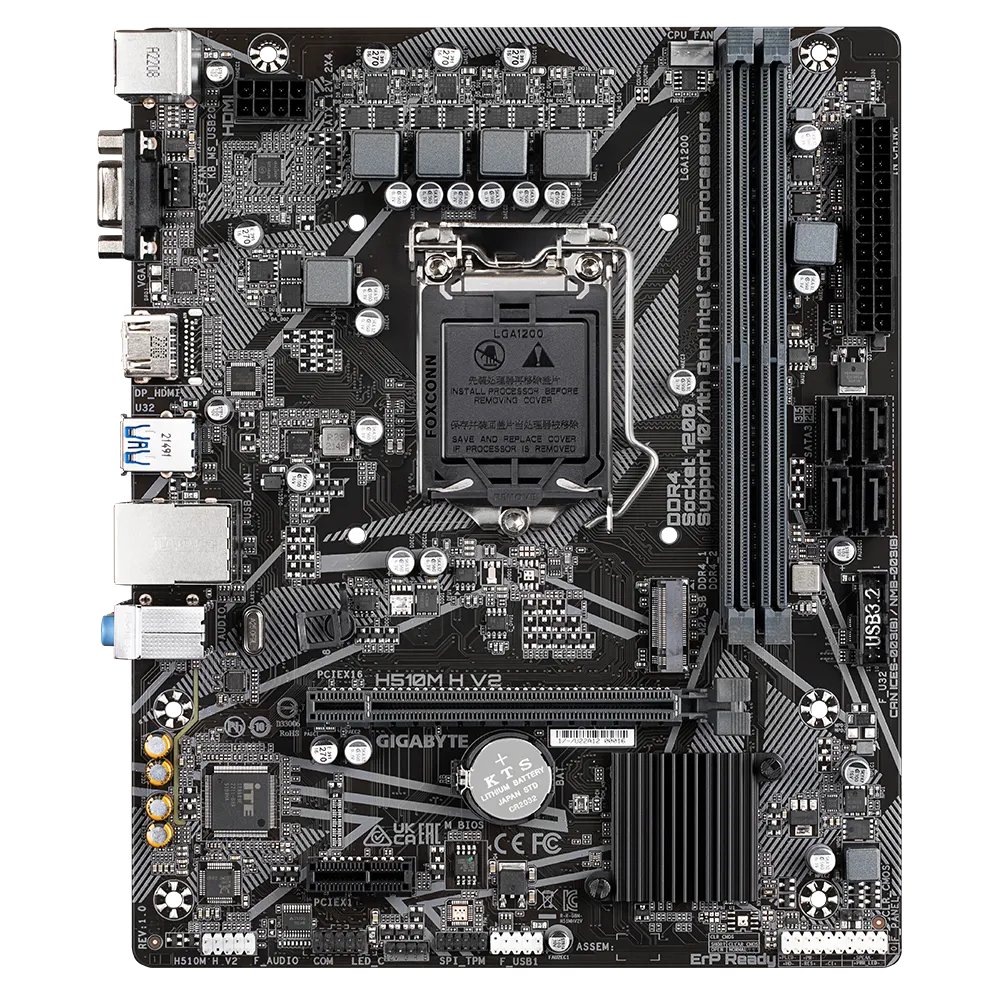

Gigabyte H510M H V2 Motherboard
₹6,600
Specifications: Category Details CPU LGA1200 package:- 11th Gen Intel® Core™ i9/i7/i5 processors- 10th Gen Intel® Core™ i9/i7/i5/i3 processors- Intel® Pentium® / Celeron® processorsL3 cache varies with CPU.(Refer to “CPU Support List” for more info.) Chip
Additional information
Specifications:
| Category | Details |
|---|---|
| CPU | LGA1200 package: – 11th Gen Intel® Core™ i9/i7/i5 processors – 10th Gen Intel® Core™ i9/i7/i5/i3 processors – Intel® Pentium® / Celeron® processors L3 cache varies with CPU. (Refer to “CPU Support List” for more info.) |
| Chipset | Intel® H470 Express Chipset |
| Memory | – 11th Gen Intel® Core™ i9/i7/i5 processors: DDR4 3200/3000/2933/2666/2400/2133 MHz modules. – 10th Gen Intel® Core™ i9/i7 processors: DDR4 2933/2666/2400/2133 MHz modules. – 10th Gen Intel® Core™ i5/i3/Pentium®/Celeron® processors: DDR4 2666/2400/2133 MHz modules. – 2 x DDR4 DIMM sockets, up to 64 GB system memory. – Dual channel memory architecture. – Support for ECC/non-ECC Un-buffered DIMMs. – XMP support. (Refer to “Memory Support List” for more info.) |
| Onboard Graphics | Integrated Intel® HD Graphics: – 1 x HDMI (4096×2160@30Hz, HDMI 1.4, HDCP 2.3) – 1 x D-Sub (1920×1200@60Hz, 10th Gen CPUs only) Graphics specs depend on CPU. |
| Audio | Realtek® Audio CODEC, HD Audio. Supports 2/4/5.1/7.1 channels (configured via software). |
| LAN | Realtek® GbE LAN chip (1Gbps/100Mbps/10Mbps). |
| Expansion Slots | – CPU: 1 x PCIe x16 slot (PCIe 3.0, x16). – Chipset: 1 x PCIe x1 slot (PCIe 3.0, x1). |
| Storage Interface | – 1 x M.2 connector (SATA/PCIe 3.0 x4/x2 SSD support). – 4 x SATA 6Gb/s connectors. – RAID support: NVMe: RAID 0/1 (PCIe to M.2 adapter required). SATA: RAID 0/1/5/10. |
| USB | – 4 x USB 3.2 Gen 1 (2 rear, 2 internal header). – 6 x USB 2.0/1.1 (4 rear, 2 internal header). |
| Internal I/O Connectors | – 24-pin ATX power, 8-pin ATX 12V power. – CPU/system fan headers, RGB LED strip header. – M.2, SATA, front panel/audio headers. – USB 3.2 Gen 1 & USB 2.0/1.1 headers. – TPM, serial port, Clear CMOS jumper. |
| Back Panel Connectors | – PS/2 keyboard/mouse, D-Sub, HDMI. – 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1. – RJ-45, 3 x audio jacks. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection. Fan fail warning, fan speed control (cooler dependent). |
| BIOS | 1 x 128 Mbit flash, licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
| Unique Features | – APP Center: @BIOS, Ambient LED, EasyTune, etc. – Q-Flash, Xpress Install. |
| Bundled Software | Norton® Internet Security (OEM). LAN bandwidth management software. |
| Operating System | Windows 11/10 64-bit. |
| Form Factor | Micro ATX, 22.6cm x 18.5cm. |
Description
Specifications:
| Category | Details |
|---|---|
| CPU | LGA1200 package: – 11th Gen Intel® Core™ i9/i7/i5 processors – 10th Gen Intel® Core™ i9/i7/i5/i3 processors – Intel® Pentium® / Celeron® processors L3 cache varies with CPU. (Refer to “CPU Support List” for more info.) |
| Chipset | Intel® H470 Express Chipset |
| Memory | – 11th Gen Intel® Core™ i9/i7/i5 processors: DDR4 3200/3000/2933/2666/2400/2133 MHz modules. – 10th Gen Intel® Core™ i9/i7 processors: DDR4 2933/2666/2400/2133 MHz modules. – 10th Gen Intel® Core™ i5/i3/Pentium®/Celeron® processors: DDR4 2666/2400/2133 MHz modules. – 2 x DDR4 DIMM sockets, up to 64 GB system memory. – Dual channel memory architecture. – Support for ECC/non-ECC Un-buffered DIMMs. – XMP support. (Refer to “Memory Support List” for more info.) |
| Onboard Graphics | Integrated Intel® HD Graphics: – 1 x HDMI (4096×2160@30Hz, HDMI 1.4, HDCP 2.3) – 1 x D-Sub (1920×1200@60Hz, 10th Gen CPUs only) Graphics specs depend on CPU. |
| Audio | Realtek® Audio CODEC, HD Audio. Supports 2/4/5.1/7.1 channels (configured via software). |
| LAN | Realtek® GbE LAN chip (1Gbps/100Mbps/10Mbps). |
| Expansion Slots | – CPU: 1 x PCIe x16 slot (PCIe 3.0, x16). – Chipset: 1 x PCIe x1 slot (PCIe 3.0, x1). |
| Storage Interface | – 1 x M.2 connector (SATA/PCIe 3.0 x4/x2 SSD support). – 4 x SATA 6Gb/s connectors. – RAID support: NVMe: RAID 0/1 (PCIe to M.2 adapter required). SATA: RAID 0/1/5/10. |
| USB | – 4 x USB 3.2 Gen 1 (2 rear, 2 internal header). – 6 x USB 2.0/1.1 (4 rear, 2 internal header). |
| Internal I/O Connectors | – 24-pin ATX power, 8-pin ATX 12V power. – CPU/system fan headers, RGB LED strip header. – M.2, SATA, front panel/audio headers. – USB 3.2 Gen 1 & USB 2.0/1.1 headers. – TPM, serial port, Clear CMOS jumper. |
| Back Panel Connectors | – PS/2 keyboard/mouse, D-Sub, HDMI. – 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1. – RJ-45, 3 x audio jacks. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection. Fan fail warning, fan speed control (cooler dependent). |
| BIOS | 1 x 128 Mbit flash, licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
| Unique Features | – APP Center: @BIOS, Ambient LED, EasyTune, etc. – Q-Flash, Xpress Install. |
| Bundled Software | Norton® Internet Security (OEM). LAN bandwidth management software. |
| Operating System | Windows 11/10 64-bit. |
| Form Factor | Micro ATX, 22.6cm x 18.5cm. |
