Specifications Category Details CPU AMD Socket AM4, support for: – AMD Ryzen 5000 Series / Ryzen 5000 G-Series / Ryzen 4000 G-Series / Ryzen 3000 Series / Ryzen 3000 G-Series Processors (Refer to “CPU Support List” for more details.) Chipset AMD B550 Memo
| Category | Details |
|---|---|
| CPU |
AMD Socket AM4, support for: – AMD Ryzen 5000 Series / Ryzen 5000 G-Series / Ryzen 4000 G-Series / Ryzen 3000 Series / Ryzen 3000 G-Series Processors (Refer to “CPU Support List” for more details.) |
| Chipset | AMD B550 |
| Memory |
– 4 × DDR4 DIMM sockets, up to 128GB – Supports DDR4 4733(O.C.) down to 2133 MHz – Dual channel architecture – Supports ECC/Non-ECC unbuffered DIMMs* – Supports XMP (Refer to “Memory Support List” for more details.) |
| Onboard Graphics |
Integrated Graphics Processor: – 1 × DVI-D, max 1920×1200@60Hz – 1 × HDMI, max 4096×2160@60Hz (HDMI 2.1, HDCP 2.3, HDR) – Max shared memory: 16GB |
| Audio |
– Realtek Audio CODEC – HD Audio, 2/4/5.1/7.1-channel* |
| LAN | Realtek GbE LAN (10/100/1000 Mbps) |
| Expansion Slots |
– 1 × PCIe x16 (CPU): PCIe 4.0/3.0 depending on processor – 1 × PCIe x16 (Chipset): PCIe 3.0 x2 – 3 × PCIe x1 (Chipset): PCIe 3.0 x1 |
| Storage Interface |
– 1 × M.2 (CPU) PCIe 4.0/3.0 x4/x2 + SATA – 1 × M.2 (Chipset) PCIe 3.0 x4/x2 + SATA – 4 × SATA 6Gb/s (RAID 0/1/10) |
| USB |
CPU: – 1 × USB 3.2 Gen2 Type-A (rear) – 3 × USB 3.2 Gen1 (rear) Chipset: |
| Internal I/O Connectors |
– 24-pin ATX power – 8-pin CPU power – CPU fan, water pump fan, 3× system fan headers – 2 × Addressable LED headers – 2 × RGB LED headers – 2 × M.2 slots – 4 × SATA 6Gb/s – Front panel, audio, Type-C USB, USB 3.2 Gen1, USB 2.0 headers – TPM header – Clear CMOS jumper |
| Back Panel |

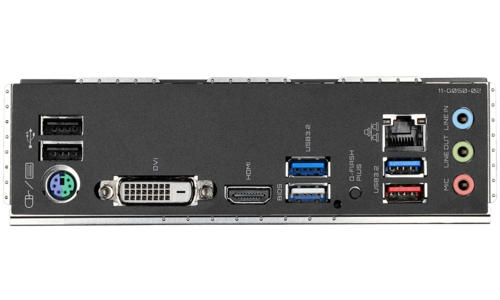

– 2 × USB 2.0 – PS/2 keyboard/mouse – DVI-D – HDMI – 3 × USB 3.2 Gen1 – 1 × USB 3.2 Gen2 Type-A (red) – RJ-45 LAN – 3 × audio jacks – Q-Flash Plus button |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow detection, warnings, speed control* |
| BIOS |
– 256 Mbit AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features |
APP Center, @BIOS, EasyTune, Fast Boot, ON/OFF Charge, RGB Fusion, Smart Backup, System Info Viewer, Q-Flash, Q-Flash Plus, Xpress Install |
| Bundled Software | Norton Internet Security (OEM), LAN management software |
| Operating System |
– Windows 11 64-bit – Windows 10 64-bit |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
| Category | Details |
|---|---|
| CPU |
AMD Socket AM4, support for: – AMD Ryzen 5000 Series / Ryzen 5000 G-Series / Ryzen 4000 G-Series / Ryzen 3000 Series / Ryzen 3000 G-Series Processors (Refer to “CPU Support List” for more details.) |
| Chipset | AMD B550 |
| Memory |
– 4 × DDR4 DIMM sockets, up to 128GB – Supports DDR4 4733(O.C.) down to 2133 MHz – Dual channel architecture – Supports ECC/Non-ECC unbuffered DIMMs* – Supports XMP (Refer to “Memory Support List” for more details.) |
| Onboard Graphics |
Integrated Graphics Processor: – 1 × DVI-D, max 1920×1200@60Hz – 1 × HDMI, max 4096×2160@60Hz (HDMI 2.1, HDCP 2.3, HDR) – Max shared memory: 16GB |
| Audio |
– Realtek Audio CODEC – HD Audio, 2/4/5.1/7.1-channel* |
| LAN | Realtek GbE LAN (10/100/1000 Mbps) |
| Expansion Slots |
– 1 × PCIe x16 (CPU): PCIe 4.0/3.0 depending on processor – 1 × PCIe x16 (Chipset): PCIe 3.0 x2 – 3 × PCIe x1 (Chipset): PCIe 3.0 x1 |
| Storage Interface |
– 1 × M.2 (CPU) PCIe 4.0/3.0 x4/x2 + SATA – 1 × M.2 (Chipset) PCIe 3.0 x4/x2 + SATA – 4 × SATA 6Gb/s (RAID 0/1/10) |
| USB |
CPU: – 1 × USB 3.2 Gen2 Type-A (rear) – 3 × USB 3.2 Gen1 (rear) Chipset: |
| Internal I/O Connectors |
– 24-pin ATX power – 8-pin CPU power – CPU fan, water pump fan, 3× system fan headers – 2 × Addressable LED headers – 2 × RGB LED headers – 2 × M.2 slots – 4 × SATA 6Gb/s – Front panel, audio, Type-C USB, USB 3.2 Gen1, USB 2.0 headers – TPM header – Clear CMOS jumper |
| Back Panel |
– 2 × USB 2.0 – PS/2 keyboard/mouse – DVI-D – HDMI – 3 × USB 3.2 Gen1 – 1 × USB 3.2 Gen2 Type-A (red) – RJ-45 LAN – 3 × audio jacks – Q-Flash Plus button |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow detection, warnings, speed control* |
| BIOS |
– 256 Mbit AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features |
APP Center, @BIOS, EasyTune, Fast Boot, ON/OFF Charge, RGB Fusion, Smart Backup, System Info Viewer, Q-Flash, Q-Flash Plus, Xpress Install |
| Bundled Software | Norton Internet Security (OEM), LAN management software |
| Operating System |
– Windows 11 64-bit – Windows 10 64-bit |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
