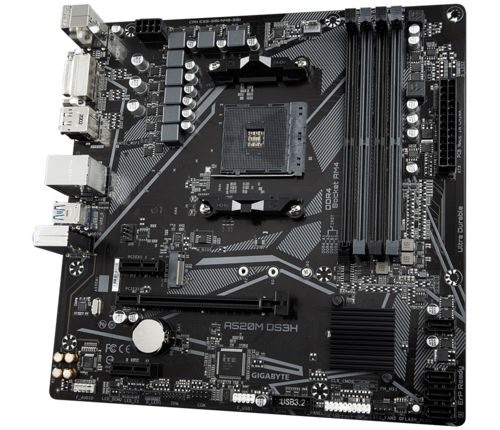

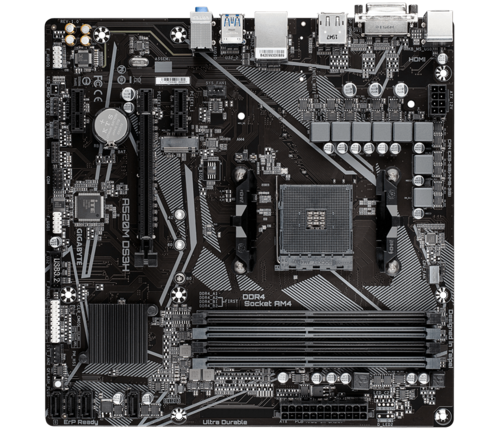

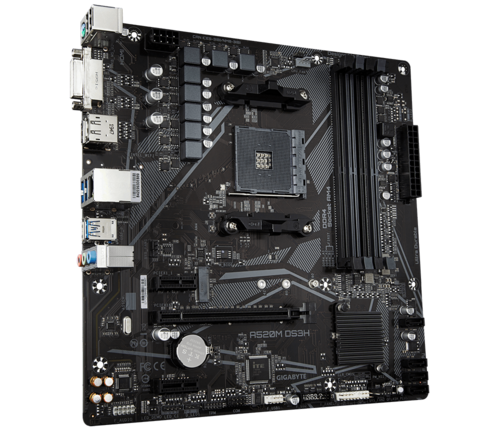

Gigabyte Ga A520M Ds3H Amd Am4
Gigabyte Ga A520M Ds3H Amd Am4 - Image 2
Gigabyte Ga A520M Ds3H Amd Am4 - Image 3
Gigabyte Ga A520M Ds3H Amd Am4 - Image 4

Gigabyte Ga A520M Ds3H Amd Am4

In Stock
SKU : 101184 Product Type: Brand:
₹6,700

Specifications Supports AMD Ryzen´ 5000 Series/ Ryzen´ 5000 G-Series/ Ryzen´ 4000 G-Series and Ryzen´ 3000 Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra-FastNVM

In Stock
Add to wishlist Compare
In Stock

Additional information

Specifications



  • Supports AMD Ryzen´ 5000 Series/ Ryzen´ 5000 G-Series/ Ryzen´ 4000 G-Series and Ryzen´ 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-FastNVMe PCIe 3.0 x4 M.2 Connector
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D, Display Ports for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specifications



CPU 1. AMD Socket AM4, support for: AMD Ryzen´ 5000 Series/ Ryzen´ 5000 G-Series/ Ryzen´ 4000 G-Series and Ryzen´ 3000 Series Processors
Chipset 1. AMD A520
Memory 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. AMD Ryzen´ 5000 G-series / Ryzen´ 5000 Series/ 3rd Generation AMD Ryzen´ processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 3rd Gen AMD Ryzen´ with Radeon´ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Dual channel memory architecture
5. Support for ECC Un-bufferedDIMM 1Rx8/2Rx8 memory modules
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics 1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
2. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Audio 1. Realtek†Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN 1. Realtek†GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
Storage Interface CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
1. 4 x SATA 6Gb/s connectors
2. Support for RAID 0, RAID 1, and RAID 10
USB CPU:
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 1 x M.2 Socket 3 connector
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 1 x USB 2.0/1.1 header
13. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
14. 1 x serial port header
15. 1 x Clear CMOS jumper
16. 1 x Q-Flash Plus button

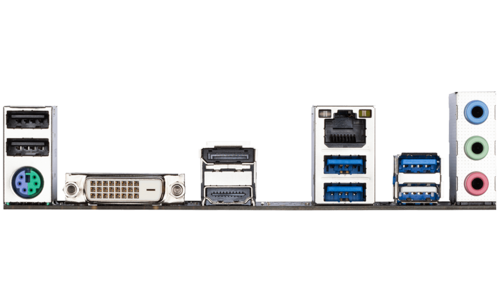

Back Panel Connectors 1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x DisplayPort
4. 1 x HDMI port
5. 4 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks
I/O Controller 1. iTE†I/O Controller Chip
H/W Monitoring 1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features 1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software 1. Norton†Internet Security (OEM version)
2. Realtek†8118 Gaming LAN Bandwidth Control Utility
Operating System 1. Support for Windows 10 64-bit
Form Factor 1. Micro ATX Form Factor; 24.4cm x 24.4cm

Description

Specifications



  • Supports AMD Ryzen´ 5000 Series/ Ryzen´ 5000 G-Series/ Ryzen´ 4000 G-Series and Ryzen´ 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-FastNVMe PCIe 3.0 x4 M.2 Connector
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D, Display Ports for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specifications



CPU 1. AMD Socket AM4, support for: AMD Ryzen´ 5000 Series/ Ryzen´ 5000 G-Series/ Ryzen´ 4000 G-Series and Ryzen´ 3000 Series Processors
Chipset 1. AMD A520
Memory 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. AMD Ryzen´ 5000 G-series / Ryzen´ 5000 Series/ 3rd Generation AMD Ryzen´ processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 3rd Gen AMD Ryzen´ with Radeon´ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Dual channel memory architecture
5. Support for ECC Un-bufferedDIMM 1Rx8/2Rx8 memory modules
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics 1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
2. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Audio 1. Realtek†Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN 1. Realtek†GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
Storage Interface CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
1. 4 x SATA 6Gb/s connectors
2. Support for RAID 0, RAID 1, and RAID 10
USB CPU:
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 1 x M.2 Socket 3 connector
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 1 x USB 2.0/1.1 header
13. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
14. 1 x serial port header
15. 1 x Clear CMOS jumper
16. 1 x Q-Flash Plus button
Back Panel Connectors 1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x DisplayPort
4. 1 x HDMI port
5. 4 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks
I/O Controller 1. iTE†I/O Controller Chip
H/W Monitoring 1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features 1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software 1. Norton†Internet Security (OEM version)
2. Realtek†8118 Gaming LAN Bandwidth Control Utility
Operating System 1. Support for Windows 10 64-bit
Form Factor 1. Micro ATX Form Factor; 24.4cm x 24.4cm

Reviews

There are no reviews yet.

Be the first to review “Gigabyte Ga A520M Ds3H Amd Am4”

Your email address will not be published. Required fields are marked *

3 × three =

Recently Viewed Products

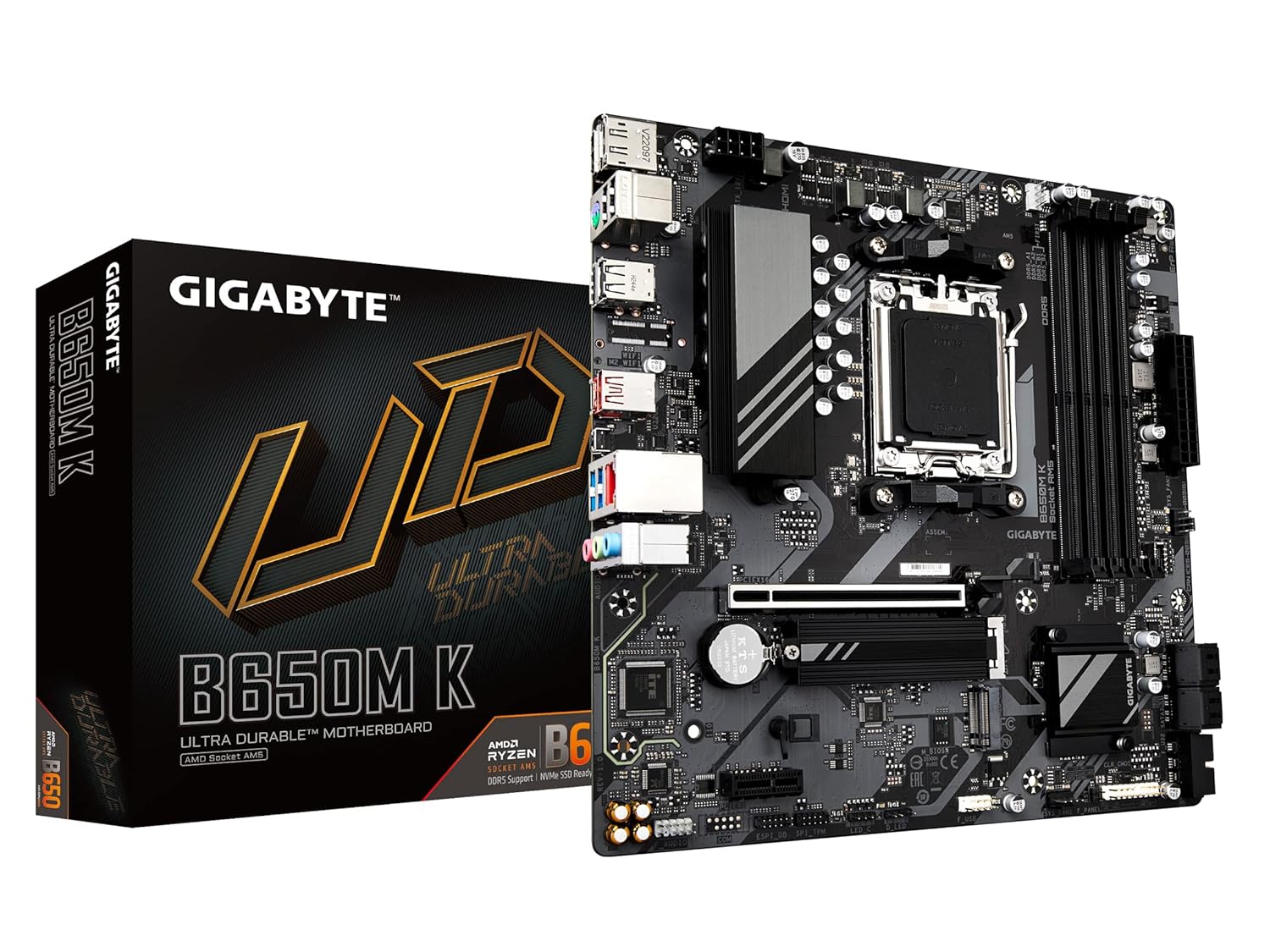

Gigabyte Ga B650M K Amd Am5
