Specifications Specification Details Model Gp-Ae1000Pm Pg5 Type Intel Form Factor Atx 12V V3.0 (Compatible With Atx 3.1) Pfc Active Pfc (>0.9 Typical) Input Voltage 100-240 Vac (Full Range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 10
| Specification | Details |
|---|---|
| Model | Gp-Ae1000Pm Pg5 |
| Type | Intel Form Factor Atx 12V V3.0 (Compatible With Atx 3.1) |
| Pfc | Active Pfc (≫0.9 Typical) |
| Input Voltage | 100-240 Vac (Full Range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000W |
| Dimensions | 150 X 140 X 86Mm |

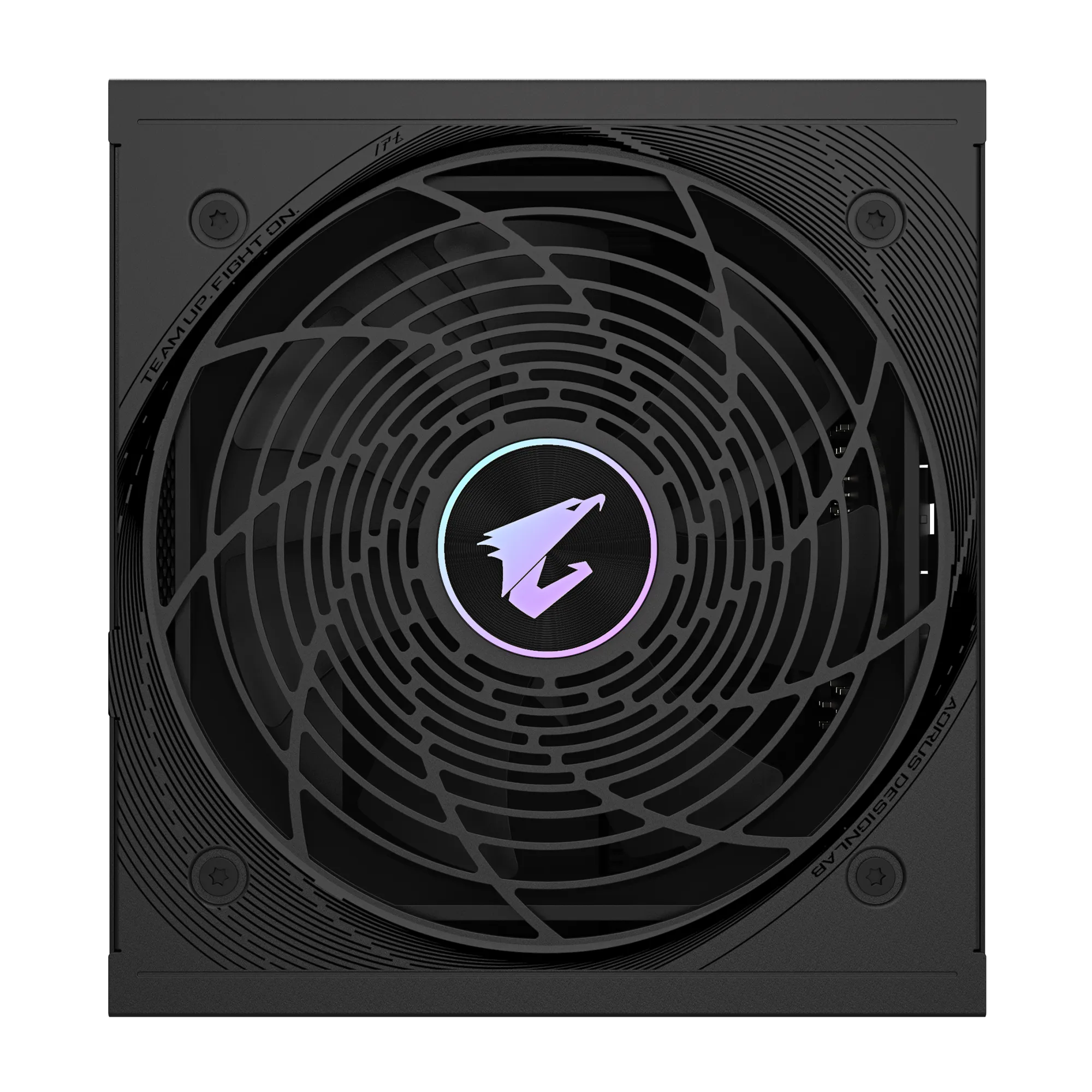

| Fan Type | 120Mm Fluid Dynamic Bearing (Fdb) Fan |
| 80 Plus | Platinum |
| Efficiency | 92% At Typical Load |
| Mtbf | ≫100,000 Hours |
| Protections | Ovp / Opp / Scp / Uvp / Ocp / Otp |
| Power Good Signal | 100-150Ms |
| Hold Up Time | ≫16Ms |
| Cable Type | Flat, All Black |
| Connectors | Atx/Mb 20+4 Pin X 1 : 650Mm Cpu/Eps 4+4 Pin X 2 : 700Mm 2 Pci-E 16 Pin X 1 : 700Mm Pci-E 6+2 Pin X 6 : 650Mm+150Mm 2, 750Mm 2 Sata X 8 : 600Mm+150Mm+150Mm+150Mm 2 4 Pin Peripheral X 4 : 500Mm+150Mm+150Mm+150Mm |
| Specification | Details |
|---|---|
| Model | Gp-Ae1000Pm Pg5 |
| Type | Intel Form Factor Atx 12V V3.0 (Compatible With Atx 3.1) |
| Pfc | Active Pfc (≫0.9 Typical) |
| Input Voltage | 100-240 Vac (Full Range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000W |
| Dimensions | 150 X 140 X 86Mm |
| Fan Type | 120Mm Fluid Dynamic Bearing (Fdb) Fan |
| 80 Plus | Platinum |
| Efficiency | 92% At Typical Load |
| Mtbf | ≫100,000 Hours |
| Protections | Ovp / Opp / Scp / Uvp / Ocp / Otp |
| Power Good Signal | 100-150Ms |
| Hold Up Time | ≫16Ms |
| Cable Type | Flat, All Black |
| Connectors | Atx/Mb 20+4 Pin X 1 : 650Mm Cpu/Eps 4+4 Pin X 2 : 700Mm 2 Pci-E 16 Pin X 1 : 700Mm Pci-E 6+2 Pin X 6 : 650Mm+150Mm 2, 750Mm 2 Sata X 8 : 600Mm+150Mm+150Mm+150Mm 2 4 Pin Peripheral X 4 : 500Mm+150Mm+150Mm+150Mm |
