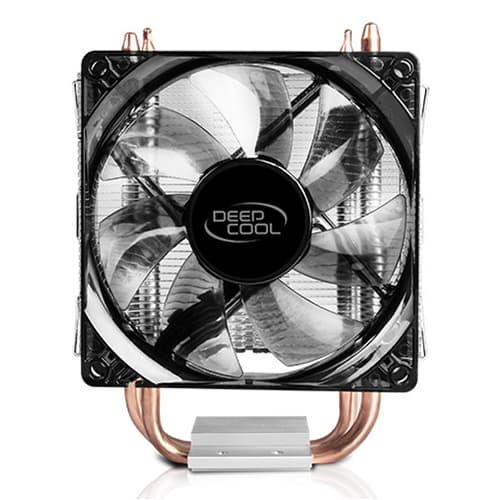

Features Effective cooling: Two sintered powder heatpipes make direct contact with the processor surface to quickly dissipate heat and prevent overheating. Fan: PWM fan 92 x 92 x 25mm,The silent fan is made of translucent material, great for case modding.
Effective cooling:
Two sintered powder heatpipes make direct contact with the processor surface to quickly dissipate heat and prevent overheating.
Fan:
PWM fan 92 x 92 x 25mm,The silent fan is made of translucent material, great for case modding.
Compatible with various platforms:
Multi-Platform Compatibility The system is equipped with multiple brackets to support
Intel LGA / 1151/1150/1155 and AMD AM4 / AM3 + / AM3 / AM2 + / AM2 / FM2 + / FM2 / FM1 platforms.
Easy installation:
There is no need to rearrange the motherboard to install the cooling system.
| P / N | DP-MCH2-GMX200-V2 |
| Compatiblity |
Intel AMD |
| Overall dimensions | 107 × 71 × 131 mm |
| Fan dimensions | 92 × 92 × 25 mm |
| The weight | 326g |
| Bearing type | Hydrodynamic bearing |
| Rated voltage | 12VDC |
| Number of heat pipes | Ø6 mm × 2 pcs |
| Fan connector type | 4-pin PWM |
| Fan rated current | 0.06 A ± 10% |
| Fan power consumption | 0.72W |
| Fan speed | 500 ~ 2000 RPM ± 10% RPM |
| Maximum air flow | 33 CFM |
| Noise level | ≤23.9 dB (A) |
| EAN | 6933412726937 |
| Warranty |
1 Year |
| Note |
***Features, Price and Specifications are subject to change without notice. |
Effective cooling:
Two sintered powder heatpipes make direct contact with the processor surface to quickly dissipate heat and prevent overheating.
Fan:
PWM fan 92 x 92 x 25mm,The silent fan is made of translucent material, great for case modding.
Compatible with various platforms:
Multi-Platform Compatibility The system is equipped with multiple brackets to support
Intel LGA / 1151/1150/1155 and AMD AM4 / AM3 + / AM3 / AM2 + / AM2 / FM2 + / FM2 / FM1 platforms.
Easy installation:
There is no need to rearrange the motherboard to install the cooling system.
| P / N | DP-MCH2-GMX200-V2 |
| Compatiblity |
Intel AMD |
| Overall dimensions | 107 × 71 × 131 mm |
| Fan dimensions | 92 × 92 × 25 mm |
| The weight | 326g |
| Bearing type | Hydrodynamic bearing |
| Rated voltage | 12VDC |
| Number of heat pipes | Ø6 mm × 2 pcs |
| Fan connector type | 4-pin PWM |
| Fan rated current | 0.06 A ± 10% |
| Fan power consumption | 0.72W |
| Fan speed | 500 ~ 2000 RPM ± 10% RPM |
| Maximum air flow | 33 CFM |
| Noise level | ≤23.9 dB (A) |
| EAN | 6933412726937 |
| Warranty |
1 Year |
| Note |
***Features, Price and Specifications are subject to change without notice. |
