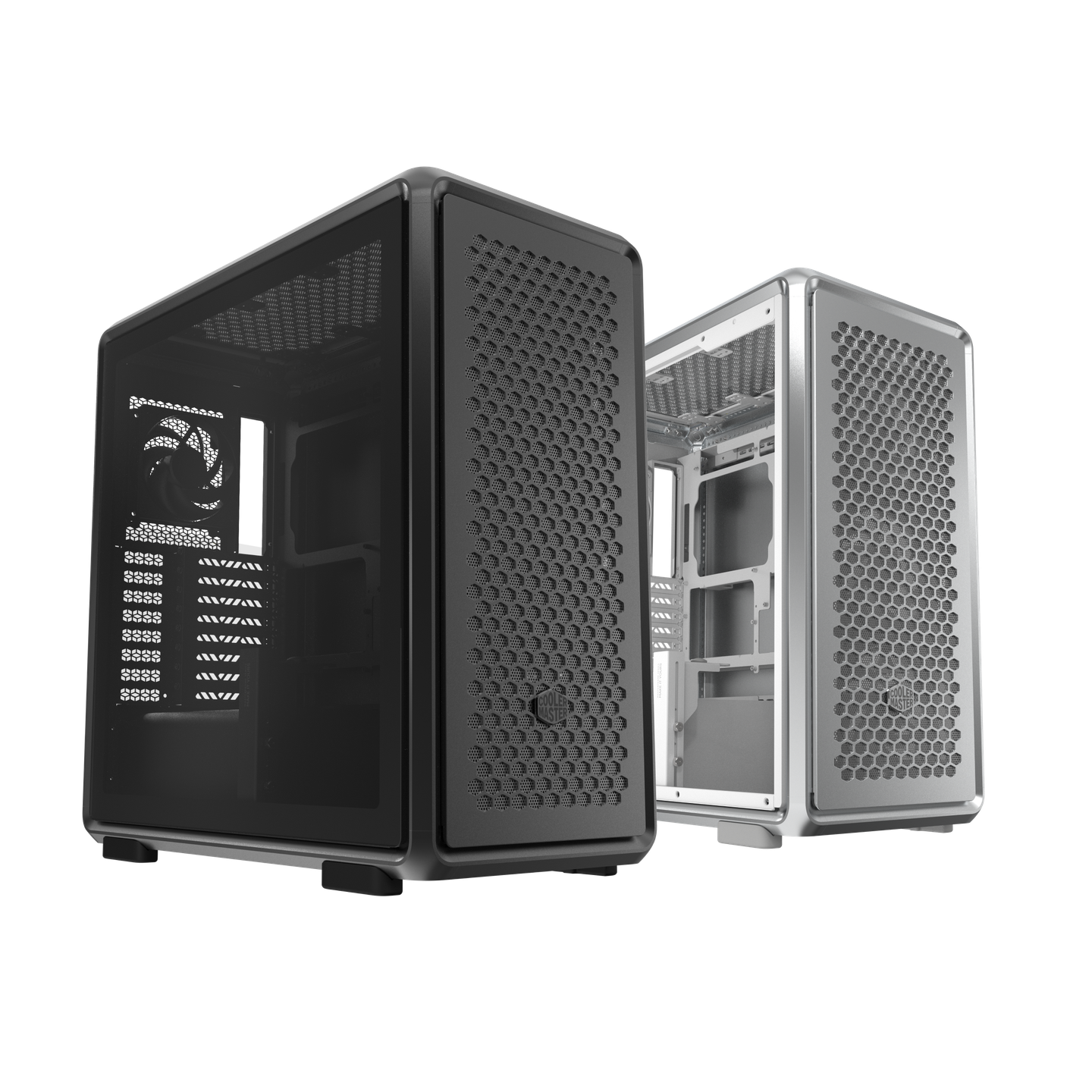

Specifications Category Specification Model Numbers – Black: MF600-KGNN-S00- Silver: MF600-SGNN-S00 Series MasterFrame Series Size / Form Factor Mid Tower Exterior Colors Black / Silver Exterior Materials SGCC Steel, Aluminum Side Panel Materials Left: Te
| Category | Specification |
|---|---|
| Model Numbers | – Black: MF600-KGNN-S00 – Silver: MF600-SGNN-S00 |
| Series | MasterFrame Series |
| Size / Form Factor | Mid Tower |
| Exterior Colors | Black / Silver |
| Exterior Materials | SGCC Steel, Aluminum |
| Side Panel Materials | Left: Tempered GlassRight: Aluminum |
| Dimensions (L × W × H) | – Incl. Protrusions: 531 × 261 × 544 mm- Excl. Protrusions: 514 × 244 × 514 mm |
| Volume (Incl. Protrusions) | 73.6 Liters |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX*, SSI-CEB*(*Conditional Support) |
| Power Supply Support | ATX |
| Expansion Slots | 8 |
| Drive Bays | – 2.5″ / 3.5″ Combo: 2- 2.5″: 3 – 5.25″: Not Available – 3.5″: Not Available |
| Front I/O Panel | – 2 × USB 3.2 Gen 1 Type-A- 1 × USB 3.2 Gen 2×2 Type-C- 1 × 3.5mm Headset Combo Jack (Audio + Mic) |
| Pre-installed Fans (Front) | – Black Model: 3 × 140mm Mobius (non-ARGB) – Silver Model: 3 × 140mm Sickle Flow ARGB |
| Pre-installed Fans (Rear) | – Black Model: 1 × 120mm Mobius (non-ARGB) – Silver Model: 1 × 120mm Sickle Flow ARGB |
| Pre-installed Fans (Top) | None |
| Fan Support – Front | 3 × 120mm / 3 × 140mm / 2 × 180mm / 2 × 200mm |
| Fan Support – Top | 3 × 120mm / 2 × 140mm / 2 × 180mm / 1 × 200mm |
| Fan Support – Rear | 1 × 120mm |
| Fan Support – Side | 3 × 120mm / 3 × 140mm |
| Radiator Support – Front | 120 / 140 / 240 / 280 / 360 / 420 mm (Max Length: 458 mm) |
| Radiator Support – Top | 120 / 140 / 240 / 280 / 360 / 420 mm(420mm possible only if I/O module is moved to front) |
| Radiator Support – Rear | 120 mm |
| Radiator Support – Side | 240 / 280 / 360 / 420 mm |
| Dust Filters | Top / Front / Bottom / Right Side Panel |
| Clearance – CPU Cooler | 190 mm |
| Clearance – GPU | – Length: 485 mm (including power connector) – Height: 190 mm (including power connector) |
| Clearance – PSU | 235 mm |
| Cable Routing Space | 43 mm (behind motherboard tray) |
| Included Accessories | – Black Model: GPU Support Bracket- Silver Model: GPU Support Bracket + ARGB PWM Hub |
| Warranty | 2 Years |
| Category | Specification |
|---|---|
| Model Numbers | – Black: MF600-KGNN-S00 – Silver: MF600-SGNN-S00 |
| Series | MasterFrame Series |
| Size / Form Factor | Mid Tower |
| Exterior Colors | Black / Silver |
| Exterior Materials | SGCC Steel, Aluminum |
| Side Panel Materials | Left: Tempered GlassRight: Aluminum |
| Dimensions (L × W × H) | – Incl. Protrusions: 531 × 261 × 544 mm- Excl. Protrusions: 514 × 244 × 514 mm |
| Volume (Incl. Protrusions) | 73.6 Liters |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX*, SSI-CEB*(*Conditional Support) |
| Power Supply Support | ATX |
| Expansion Slots | 8 |
| Drive Bays | – 2.5″ / 3.5″ Combo: 2- 2.5″: 3 – 5.25″: Not Available – 3.5″: Not Available |
| Front I/O Panel | – 2 × USB 3.2 Gen 1 Type-A- 1 × USB 3.2 Gen 2×2 Type-C- 1 × 3.5mm Headset Combo Jack (Audio + Mic) |
| Pre-installed Fans (Front) | – Black Model: 3 × 140mm Mobius (non-ARGB) – Silver Model: 3 × 140mm Sickle Flow ARGB |
| Pre-installed Fans (Rear) | – Black Model: 1 × 120mm Mobius (non-ARGB) – Silver Model: 1 × 120mm Sickle Flow ARGB |
| Pre-installed Fans (Top) | None |
| Fan Support – Front | 3 × 120mm / 3 × 140mm / 2 × 180mm / 2 × 200mm |
| Fan Support – Top | 3 × 120mm / 2 × 140mm / 2 × 180mm / 1 × 200mm |
| Fan Support – Rear | 1 × 120mm |
| Fan Support – Side | 3 × 120mm / 3 × 140mm |
| Radiator Support – Front | 120 / 140 / 240 / 280 / 360 / 420 mm (Max Length: 458 mm) |
| Radiator Support – Top | 120 / 140 / 240 / 280 / 360 / 420 mm(420mm possible only if I/O module is moved to front) |
| Radiator Support – Rear | 120 mm |
| Radiator Support – Side | 240 / 280 / 360 / 420 mm |
| Dust Filters | Top / Front / Bottom / Right Side Panel |
| Clearance – CPU Cooler | 190 mm |
| Clearance – GPU | – Length: 485 mm (including power connector) – Height: 190 mm (including power connector) |
| Clearance – PSU | 235 mm |
| Cable Routing Space | 43 mm (behind motherboard tray) |
| Included Accessories | – Black Model: GPU Support Bracket- Silver Model: GPU Support Bracket + ARGB PWM Hub |
| Warranty | 2 Years |
