Features: Back-connected motherboard support Supporting back-connected motherboard to frees up space in the front of the case, providing 33-35mm space behind the motherboard tray for easier cable management. Versatile Cooling Options Support for up to sev
Supporting back-connected motherboard to frees up space in the front of the case, providing 33-35mm space behind the motherboard tray for easier cable management.
Support for up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator allows for hyper-effective CPU cooling.
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
The HDD cage is completely removable for improved access during assembly and system upgrades.
3x 140mm Sickeflow fans, and a CF120 fan provide exceptional cooling power and eye-catching aesthetics.

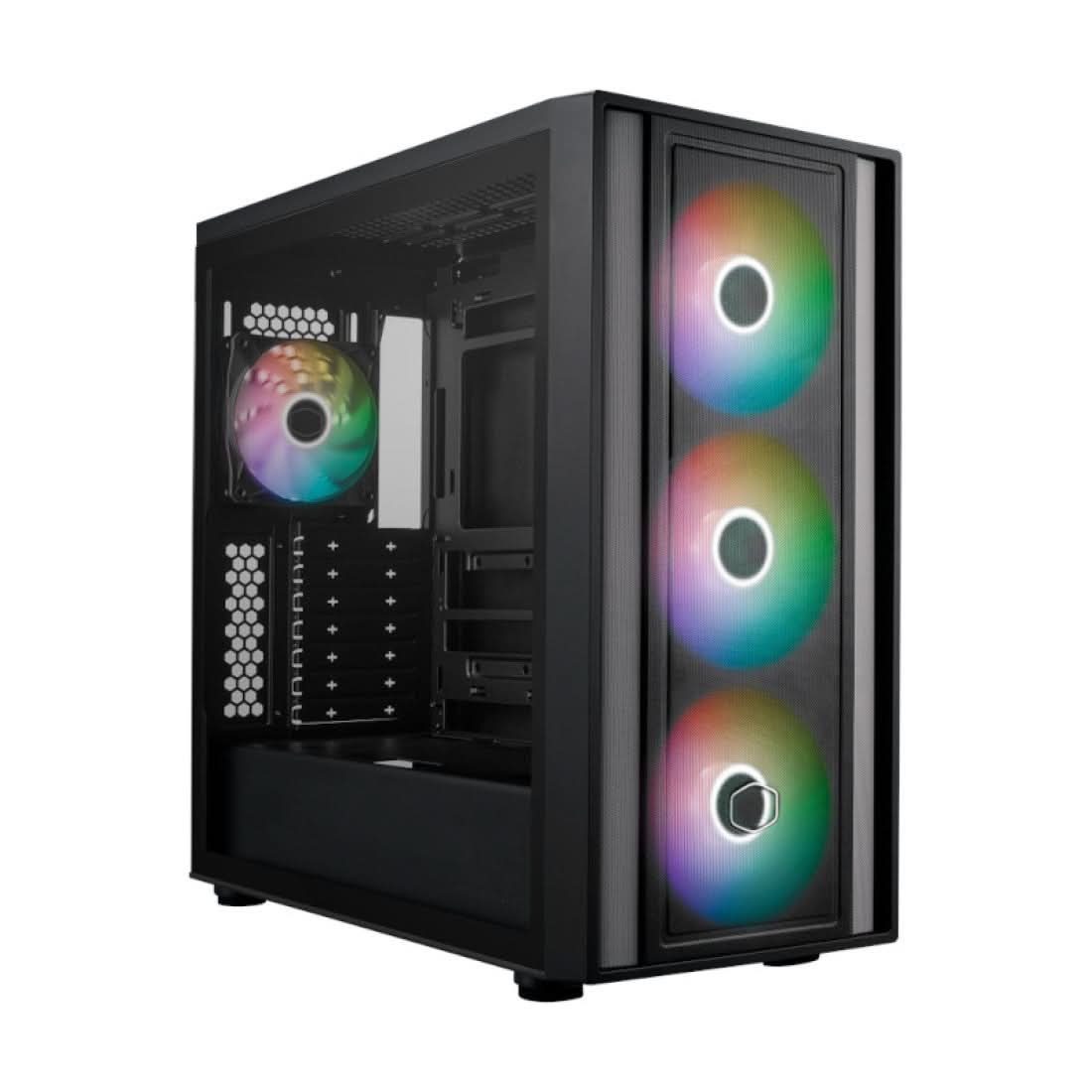

With support for a 410mm GPU, a 170mm CPU cooler, and multiple fans and radiators, the MasterBox 600 will ensure you stay ahead of the game.
|
Model Number |
MB600-KGNN-S00 |
|
Exterior Color |
Black |
|
Materials |
Exterior: Steel, Plastic Side Panel: Tempered Glass |
|
Dimensions (L X W X H) |
Incl. Protrusions: 474mm x 230mm x 481mm Excl. Protrusions: 465mm x 230mm x 465mm |
|
Volume |
49.73 L |
|
Motherboard Support |
ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12″x10.9″/ 30.5cmx27.7cm motherboards, may impact cable management) |
|
Expansion Slots |
7 |
|
Drive Bays |
5.25” ODD: N/A 3.5” HDD: 2 2.5” SSD: 2 (Max.6) |
|
I/O Panel |
2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2x2 Type C, 1x 3.5mm Combo |
|
Pre-Installed Fans |
Front: 3x 140mm SickleFlow140 ARGB PWM (650~1800 rpm) Rear: 1x 120mm CF120 ARGB (650~1200 rpm) |
|
Fan Support |
Front: 3x 120mm / 3x 140mm Top: 3x 120mm / 2x 140mm Rear: 1x 120mm |
|
Radiator Support |
Front: 120/140/240/280/360/420mm (Limit: 457*140*27mm) Top: 120/140/240/280/360mm Rear: 120mm |
|
Clearances |
CPU Cooler: 170 mm Power Supply: 170mm, 210mm (w/o HDD Cage) Graphics Card: 360mm, 410mm (w/o front radiator) |
|
Cable Routing |
Behind MB Tray: 33~35 mm |
|
Dust Filters |
Top/Bottom |
|
Power Supply Support |
ATX |
|
Warranty |
2 Years |
|
Note** |
Price, features and specifications are subject to change without notice. |
Supporting back-connected motherboard to frees up space in the front of the case, providing 33-35mm space behind the motherboard tray for easier cable management.
Support for up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator allows for hyper-effective CPU cooling.
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
The HDD cage is completely removable for improved access during assembly and system upgrades.
3x 140mm Sickeflow fans, and a CF120 fan provide exceptional cooling power and eye-catching aesthetics.
With support for a 410mm GPU, a 170mm CPU cooler, and multiple fans and radiators, the MasterBox 600 will ensure you stay ahead of the game.
|
Model Number |
MB600-KGNN-S00 |
|
Exterior Color |
Black |
|
Materials |
Exterior: Steel, Plastic Side Panel: Tempered Glass |
|
Dimensions (L X W X H) |
Incl. Protrusions: 474mm x 230mm x 481mm Excl. Protrusions: 465mm x 230mm x 465mm |
|
Volume |
49.73 L |
|
Motherboard Support |
ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12″x10.9″/ 30.5cmx27.7cm motherboards, may impact cable management) |
|
Expansion Slots |
7 |
|
Drive Bays |
5.25” ODD: N/A 3.5” HDD: 2 2.5” SSD: 2 (Max.6) |
|
I/O Panel |
2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2x2 Type C, 1x 3.5mm Combo |
|
Pre-Installed Fans |
Front: 3x 140mm SickleFlow140 ARGB PWM (650~1800 rpm) Rear: 1x 120mm CF120 ARGB (650~1200 rpm) |
|
Fan Support |
Front: 3x 120mm / 3x 140mm Top: 3x 120mm / 2x 140mm Rear: 1x 120mm |
|
Radiator Support |
Front: 120/140/240/280/360/420mm (Limit: 457*140*27mm) Top: 120/140/240/280/360mm Rear: 120mm |
|
Clearances |
CPU Cooler: 170 mm Power Supply: 170mm, 210mm (w/o HDD Cage) Graphics Card: 360mm, 410mm (w/o front radiator) |
|
Cable Routing |
Behind MB Tray: 33~35 mm |
|
Dust Filters |
Top/Bottom |
|
Power Supply Support |
ATX |
|
Warranty |
2 Years |
|
Note** |
Price, features and specifications are subject to change without notice. |
