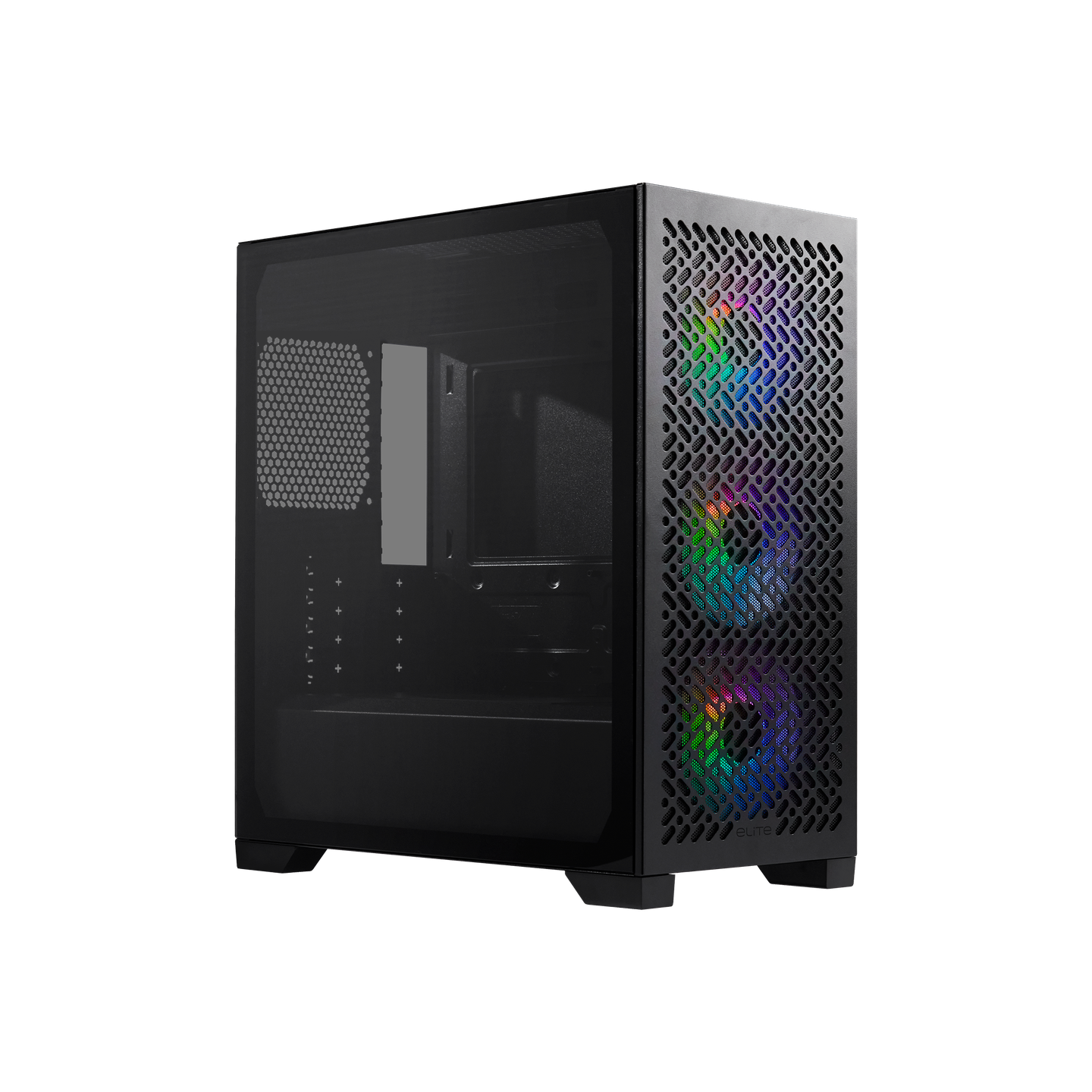

Cooler Master Elite E302 Series – Specifications Category Specification Model Numbers – Black: E302-KGNN-S00- White: E302-WGNN-S00 Series Elite Series Size / Form Factor Mini Tower Exterior Colour Black / White Materials – Exterior Steel Materials – Side
| Category | Specification |
|---|---|
| Model Numbers |
– Black: E302-KGNN-S00 |
| Series | Elite Series |
| Size / Form Factor | Mini Tower |
| Exterior Colour | Black / White |
| Materials – Exterior | Steel |
| Materials – Side Panel | Left: Tempered Glass (TG) Right: Steel |
| Dimensions (L × W × H) | – 390 × 203.5 × 430 mm (Including protrusions)- 377 × 203.5 × 410 mm (Excluding protrusions) |
| Volume (Incl. Protrusions) | 34.13L |
| Motherboard Support | Mini-ITX, Micro-ATX |
| Expansion Slots | 4 |
| Drive Bays | – 3.5″: 1- 2.5″: 1 (Max 2)- 5.25″: Not available |
| Front I/O Panel | – 1 × USB 3.2 Gen1 Type-A- 1 × USB 3.2 Gen1 Type-C- 1 × 3.5mm Combo Jack (Audio + Mic) |
| Fan Support – Front | 3 × 120mm |
| Fan Support – Top | 2 × 120mm or 2 × 140mm |
| Fan Support – Rear | 1 × 120mm |
| Pre-installed Fans – Front | – Black: 3 × 120mm ARGB (Black) – White: 3 × 120mm ARGB (White) |
| Pre-installed Fans – Top | None |
| Pre-installed Fans – Rear | None |
| Radiator Support – Front | 120 / 240 / 360mm (up to 60mm thick) |
| Radiator Support – Top | 120 / 140 / 240 / 280mm |
| Radiator Support – Rear | 120mm |
| Clearance – CPU Cooler | 163.5mm |
| Clearance – GPU | 365mm (without front fans & radiator) |
| Clearance – PSU | 160mm |
| Cable Routing Space | 18.5mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX |
| Warranty | 2 Years |
| Category | Specification |
|---|---|
| Model Numbers |
– Black: E302-KGNN-S00 |
| Series | Elite Series |
| Size / Form Factor | Mini Tower |
| Exterior Colour | Black / White |
| Materials – Exterior | Steel |
| Materials – Side Panel | Left: Tempered Glass (TG) Right: Steel |
| Dimensions (L × W × H) | – 390 × 203.5 × 430 mm (Including protrusions)- 377 × 203.5 × 410 mm (Excluding protrusions) |
| Volume (Incl. Protrusions) | 34.13L |
| Motherboard Support | Mini-ITX, Micro-ATX |
| Expansion Slots | 4 |
| Drive Bays | – 3.5″: 1- 2.5″: 1 (Max 2)- 5.25″: Not available |
| Front I/O Panel | – 1 × USB 3.2 Gen1 Type-A- 1 × USB 3.2 Gen1 Type-C- 1 × 3.5mm Combo Jack (Audio + Mic) |
| Fan Support – Front | 3 × 120mm |
| Fan Support – Top | 2 × 120mm or 2 × 140mm |
| Fan Support – Rear | 1 × 120mm |
| Pre-installed Fans – Front | – Black: 3 × 120mm ARGB (Black) – White: 3 × 120mm ARGB (White) |
| Pre-installed Fans – Top | None |
| Pre-installed Fans – Rear | None |
| Radiator Support – Front | 120 / 240 / 360mm (up to 60mm thick) |
| Radiator Support – Top | 120 / 140 / 240 / 280mm |
| Radiator Support – Rear | 120mm |
| Clearance – CPU Cooler | 163.5mm |
| Clearance – GPU | 365mm (without front fans & radiator) |
| Clearance – PSU | 160mm |
| Cable Routing Space | 18.5mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX |
| Warranty | 2 Years |
