Asus Tuf Gaming B550 Plus Amd
In Stock
₹13,750
Specifications Specification Details Model TUF GAMING B550-PLUS CPU Build in AMD AM4 Socket 3rd Gen AMD Ryzen Processors *,* Refer to www.asus.com for CPU support list Chipset AMD B550 Memory 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(
In Stock
In Stock
Additional information
Specifications
| Specification | Details |
|---|---|
| Model | TUF GAMING B550-PLUS |
| CPU | Build in AMD AM4 Socket 3rd Gen AMD Ryzen Processors *,* Refer to www.asus.com for CPU support list |
| Chipset | AMD B550 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | 1 x HDMI 2.1(4K@60HZ),1 x DisplayPort 1.4 **,*Graphics specifications may vary between CPU types.,**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 3 x PCIe 3.0 x1 * 1 ,* Support PCIe bifurcation for RAID on CPU function., AMD B550 Chipset ,1 x PCIe 3.0 x16 (x4 mode),1 x PCIe 4.0 x16 (x16 mode) |
| Storage | 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), AMD B550 Chipset : , Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports ,6 x SATA 6Gb/s port(s),,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 2 , 3rd Gen AMD Ryzen Processors : ,Support Raid 0, 1, 10 |
| LAN | Realtek RTL8125B 2.5Gb Ethernet,TUF LANGuard |
| Wireless Data Network | M.2 slot only (Key E) (Support PCIe interface)*,*Wi-Fi module is sold separately. |
| Audio | Realtek ALC S1200A7.1 Surround Sound High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Unique de-pop circuit,- Audio Cover,- Premium Japanese audio capacitors,- Exclusive DTS Custom for GAMING Headsets.,- Optical S/PDIF out port(s) at back panel, Audio Feature : |
| USB Ports | 4 x USB 3.2 Gen 1 port(s)( x Type-A),2 x USB 2.0 port(s)( x Type-A),4 x USB 2.0 port(s)(4 x Type-A), Front USB Port ( Total 6 ),2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C ), Rear USB Port ( Total 8 ),2 x USB 3.2 Gen 1 port(s)(2 x Type-A) |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – AI Noise Cancelling Microphone AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS TUF PROTECTION – ASUS DIGI+ VRM (Digital power design with Dr. MOS) – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – TUF LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – Procool AURA Sync – Standard RGB headers – Addressable Gen 2 RGB header |

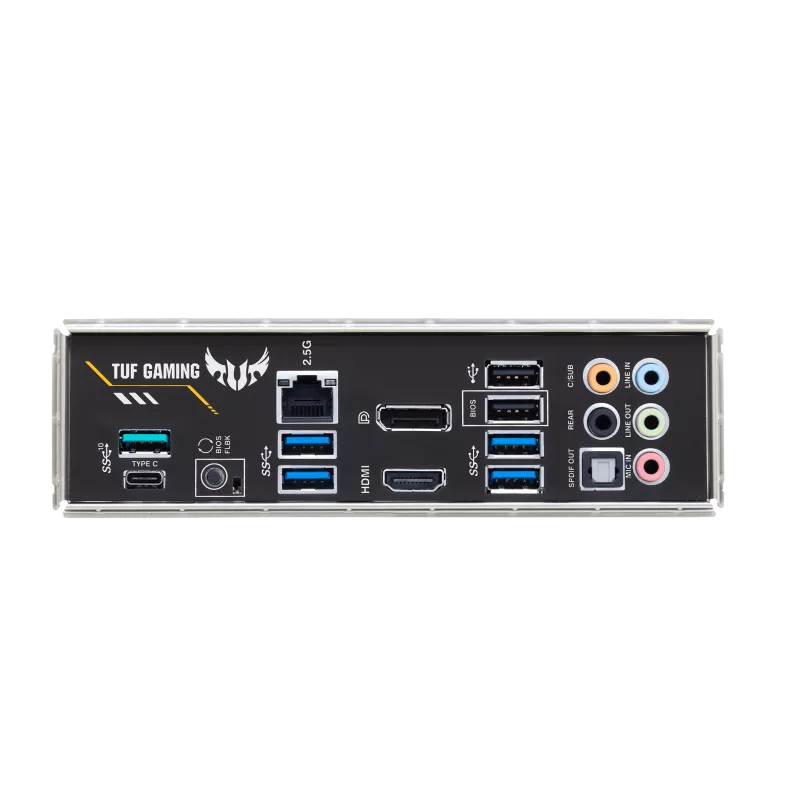

| Back I/O Ports | 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack ),2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C ),1 x BIOS FlashBack Button(s),1 x LAN (2.5G) port(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x DisplayPort,1 x Optical S/PDIF out,5 x Audio jack(s),1 x HDMI |
| Internal I/O Ports | 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode),1 x M.2 with E key for Wi-Fi module,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),3 x Chassis Fan connector(s),1 x AIO_PUMP connector,2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,6 x SATA 6Gb/s connector(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Thermal sensor connector(s),1 x Clear CMOS jumper(s),1 x System panel connector,1 x COM port header,2 x Aura RGB Strip Headers,1 x Addressable Gen 2 header(s) |
| Accessories | 1 x M.2 SSD screw package(s),1 x M.2 Rubber Package(s),1 x TUF GAMING Sticker,1 x TUF Certification card(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ),ATX Form Factor |
| Note | *1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied. *2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled. |
Description
Specifications
| Specification | Details |
|---|---|
| Model | TUF GAMING B550-PLUS |
| CPU | Build in AMD AM4 Socket 3rd Gen AMD Ryzen Processors *,* Refer to www.asus.com for CPU support list |
| Chipset | AMD B550 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | 1 x HDMI 2.1(4K@60HZ),1 x DisplayPort 1.4 **,*Graphics specifications may vary between CPU types.,**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 3 x PCIe 3.0 x1 * 1 ,* Support PCIe bifurcation for RAID on CPU function., AMD B550 Chipset ,1 x PCIe 3.0 x16 (x4 mode),1 x PCIe 4.0 x16 (x16 mode) |
| Storage | 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), AMD B550 Chipset : , Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports ,6 x SATA 6Gb/s port(s),,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 2 , 3rd Gen AMD Ryzen Processors : ,Support Raid 0, 1, 10 |
| LAN | Realtek RTL8125B 2.5Gb Ethernet,TUF LANGuard |
| Wireless Data Network | M.2 slot only (Key E) (Support PCIe interface)*,*Wi-Fi module is sold separately. |
| Audio | Realtek ALC S1200A7.1 Surround Sound High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Unique de-pop circuit,- Audio Cover,- Premium Japanese audio capacitors,- Exclusive DTS Custom for GAMING Headsets.,- Optical S/PDIF out port(s) at back panel, Audio Feature : |
| USB Ports | 4 x USB 3.2 Gen 1 port(s)( x Type-A),2 x USB 2.0 port(s)( x Type-A),4 x USB 2.0 port(s)(4 x Type-A), Front USB Port ( Total 6 ),2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C ), Rear USB Port ( Total 8 ),2 x USB 3.2 Gen 1 port(s)(2 x Type-A) |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – AI Noise Cancelling Microphone AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS TUF PROTECTION – ASUS DIGI+ VRM (Digital power design with Dr. MOS) – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – TUF LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – Procool AURA Sync – Standard RGB headers – Addressable Gen 2 RGB header |
| Back I/O Ports | 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack ),2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C ),1 x BIOS FlashBack Button(s),1 x LAN (2.5G) port(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x DisplayPort,1 x Optical S/PDIF out,5 x Audio jack(s),1 x HDMI |
| Internal I/O Ports | 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode),1 x M.2 with E key for Wi-Fi module,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),3 x Chassis Fan connector(s),1 x AIO_PUMP connector,2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,6 x SATA 6Gb/s connector(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Thermal sensor connector(s),1 x Clear CMOS jumper(s),1 x System panel connector,1 x COM port header,2 x Aura RGB Strip Headers,1 x Addressable Gen 2 header(s) |
| Accessories | 1 x M.2 SSD screw package(s),1 x M.2 Rubber Package(s),1 x TUF GAMING Sticker,1 x TUF Certification card(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ),ATX Form Factor |
| Note | *1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied. *2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled. |
