Asus Rog Thor 850W
Rog-Thor-850P Features Oled Power Display The Rog Thor Is The First Pc Psu In The World To Feature An Integrated Oled Panel, Offering A Real-Time Display Of Power Draw. Now You Can See At A Glance How Much Juice Your Rig Is Usingasus Aura Sync Addressable
Additional information
Rog-Thor-850P Features
- Oled Power Display
The Rog Thor Is The First Pc Psu In The World To
Feature An Integrated Oled Panel, Offering A Real-Time
Display Of Power Draw. Now You Can See At A Glance
How Much Juice Your Rig Is Using
- Asus Aura Sync
Addressable Aura Rgb Leds Built-In And Ready For You To Create Your Custom Look
- Rog Thermal Solution
The Integrated Rog Heatsinks Have 2X More Volume Than Traditional Designs, Resulting In 20% Lower
Temperatures Inside The Rog Thor Psu. This Enables Cooler Operation, Extending The Lifespan Of
Components And Allowing 0Db Operation Long After Standard Designs Would Have To Spin Up Their Fans
- Patented Wing-Blade Fan With 0Db Technology
Rog Thor Psu Equipped With A 135Mm Patented Wing-Blade Fan To Maximize Component
Lifespan. 0Db Technology Utilizes Thermal Sensors To Allow The Fan To Switch Off Completely At Lower
Wattages – Enabling Totally Silent Operation.
- 100% Japanese Capacitors
Provide Longer Product Life Span, Better Efficiency And Better Quality For Ps

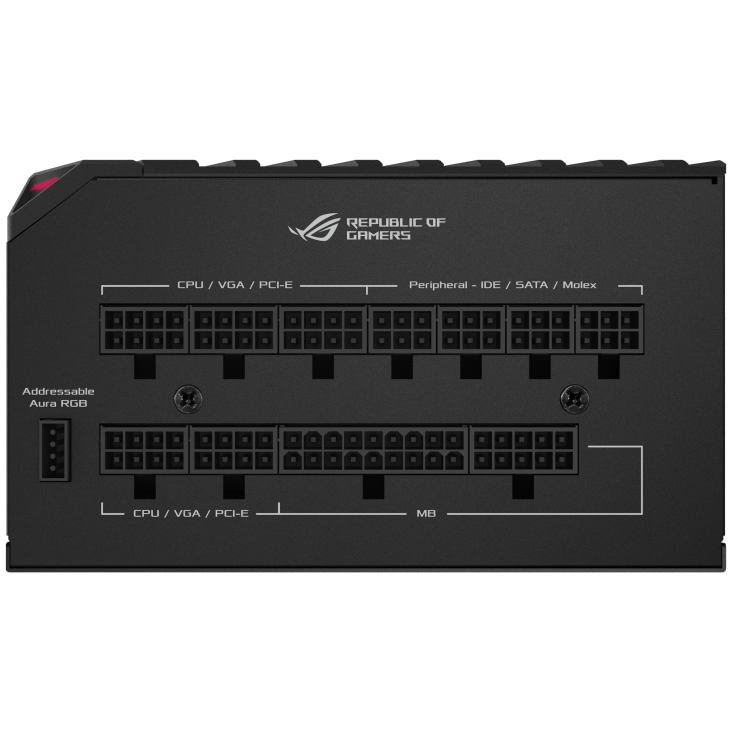

- Fully Modular With Sleeved Cables
Bundledfull Modular Design With Out Of The Box High Quality Sleeved Cables And Cable Combs To Enhance
Your Building Experience.
- 80 Plus Platinum Certification
The Rog Thor 850W Platinum Utilizes Top-End Japanese Capacitors To Ensure
Efficient Operation. This Has Earned An 80 Plus Platinum Certification, Which
Guarantees 89% Efficiency At 100% Load And 92% At 50% Load. The Increased
Efficiency Produces Less Heat, Reducing Fan Noise And Increasing Reliability
- 10-Year Limited Warranty:
We’Re So Confident About The Reliability Of The Rog Thor Psu That We Back It
With A Worldwide Limited 10-Year* Warranty.
* Core Product Operation Is Guaranteed For 10 Years. The Oled Panel And
Rgb Leds Are Subject To A 3-Year Warranty For Three Years.
Specifications
| Model | Rog-Thor-850P |
| Intel Specification | Atx12V |
| Dimensions | 160 X 150 X 86 Mm |
| Efficiency | 80Plus Platinum (At 20%/50%/100% Load Ac 115V 60Hz And Ac 230V 50Hz, The Power Efficiency Is 90%/92%/89%). |
| Protection Features | Opp/Ovp/Scp/Ocp/Otp |
| Hazardous Materials | Rohs |
| Ac Input Range | 100-240Vac |
| Rgb Lighting | Compatible With Asus Aura Sync |
| Dc Output Voltage | +3.3V +5V +12V -12V +5 |
| Vsb Maximum Load | 20A 20A 71A 3.6A 15A |
| Total Output | 852W |
| Connectors | Mb 24/20-Pin X1 Cpu 8/4-Pin X2 Pcie- 8/6-Pin X4 Sata X 12 Peripheral 4-Pin X5 Floppy X1 |
| Power Cord | 1 |
| Motherboard Power Cable (24-Pin) | 1 |
| Cpu Cables (4+4-Pin) | 2 |
| Pcie Cables (6+2-Pin) | 3 |
| Sata Cables | 3 |
| Peripheral Cables | 2 |
| Sata To Peripheral Cable | 1 |
| Rog Sticker | 1 |
| Rog Cable Tie | 4 |
| Sleeved Cable Combs (6-Pin) | 2 |
| Sleeved Cable Combs (6-Pin) | 6 |
| Sleeved Cable Combs (24-Pin) | 2 |
| Chassis Screws Package | 1 |
| Cable Tie | 10 |
| User Manual | 1 |
