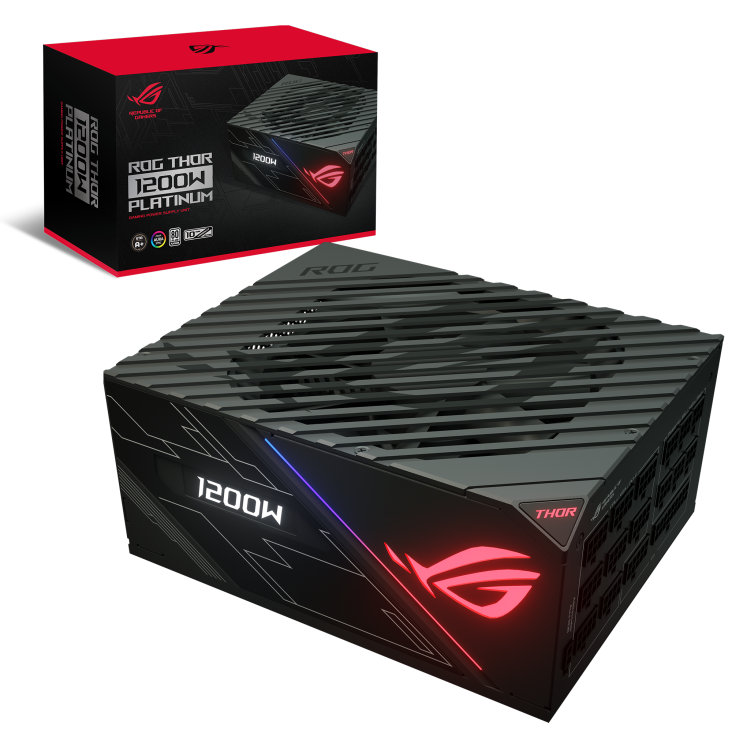

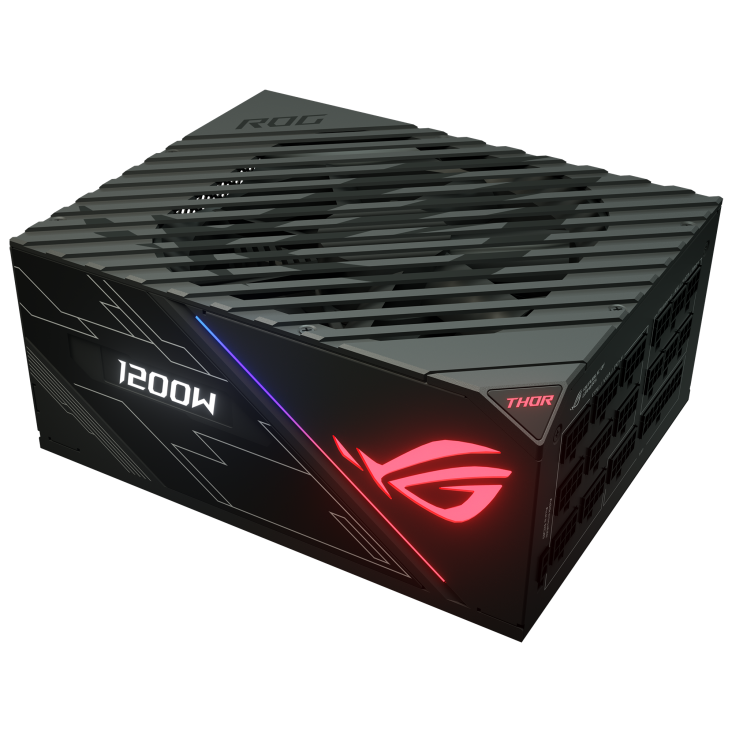

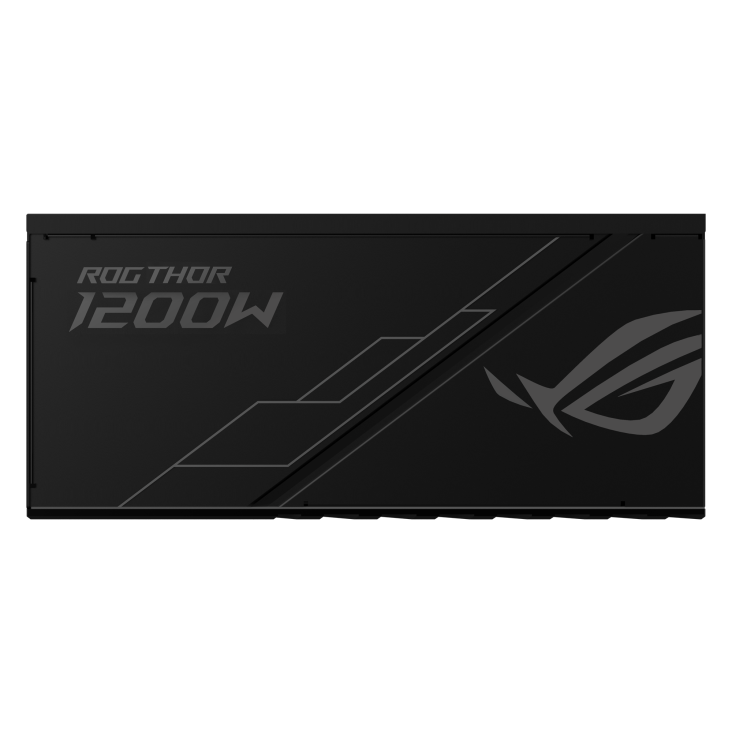

Asus Rog Thor 1200W
Features Oled Power Display The Rog Thor Is The First Pc Psu In The World To Feature An Integrated Oled Panel, Offering A Real-Time Display Of Power Draw. Now You Can See At A Glance How Much Juice Your Rig Is Using. Asus Aura Sync Addressable Aura Rgb Le
Additional information
Features
- Oled Power Display
The Rog Thor Is The First Pc Psu In The World To Feature An Integrated Oled Panel, Offering A Real-Time Display Of Power Draw. Now You Can See At A Glance How Much Juice Your Rig Is Using.
- Asus Aura Sync
Addressable Aura Rgb Leds Built-In And Ready For You To Create Your Custom Look.
- Rog Thermal Solution
The Integrated Rog Heatsinks Have 2X More Volume Than Traditional Designs, Resulting In 20% Lower Temperatures Inside The Rog Thor Psu. This Enables Cooler Operation, Extending The Lifespan Of Components And Allowing 0Db Operation Long After Standard Designs Would Have To Spin Up Their Fans.
- Patented Wing-Blade Fan With 0Db Technology
Rog Thor Psu Equipped With A 135Mm Patented Wing-Blade Fan To Maximize Component Lifespan. 0Db Technology Utilizes Thermal Sensors To Allow The Fan To Switch Off Completely At Lower Wattages – Enabling Totally Silent Operation.
- 100% Japanese Capacitors
Provide Longer Product Life Span, Better Efficiency And Better Quality For Psu.
- 80 Plus Platinum Certification
The Rog Thor 1200W Platinum Utilizes Top-End Japanese Capacitors To Ensure Efficient Operation. This Has Earned An 80 Plus Platinum Certification, Which Guarantees 89% Efficiency At 100% Load And 92% At 50% Load. The Increased Efficiency Produces Less Heat, Reducing Fan Noise And Increasing Reliability.
- 10-Year Limited Warranty:
We’Re So Confident About The Reliability Of The Rog Thor Psu That We Back It With A Worldwide Limited 10-Year Warranty.
* Core Product Operation Is Guaranteed For 10 Years. The Oled Panel And Rgb Leds Have A 3-Year Warranty.
Specifications
| Model | Rog-Thor-1200P |
| Intel Specification | Atx12V |
| Dimensions | 190 X 150 X 86 Mm |
| Efficiency | 80Plus Platinum |
| (At 20%/50%/100% Load Ac 115V 60Hz And Ac 230V 50Hz, The Power Efficiency Is 90%/92%/89%). | |
| Protection Features | Opp/Ovp/Scp/Ocp/Otp |
| Hazardous Materials | Rohs |
| Ac Input Range | 100-240Vac |
| Rgb Lighting | Compatible With Asus Aura Sync |
| Dc Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 100A 0.3A 3A |
| Total Output | 1200W |

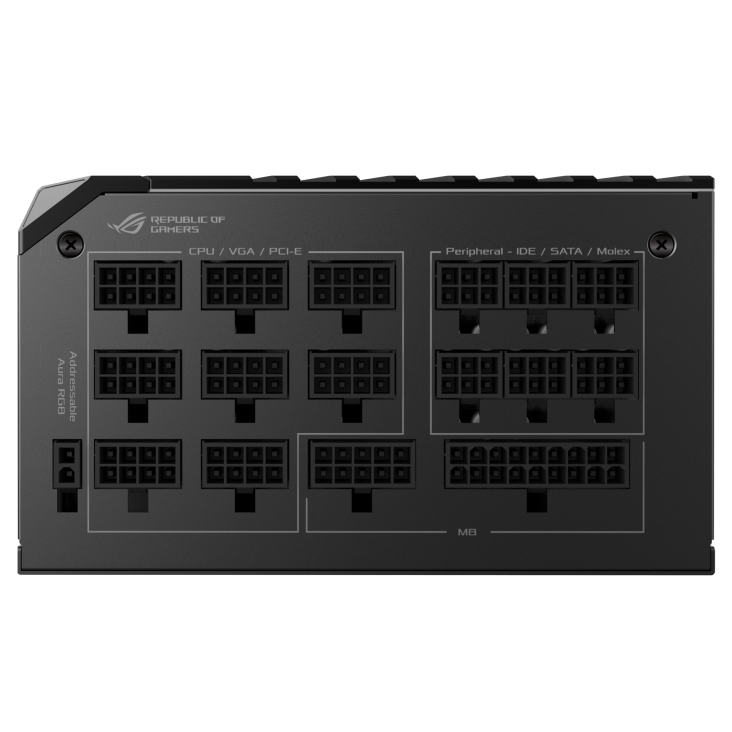

| Connectors | Mb 24/20-Pin X1 |
| Cpu 8/4-Pin X2 | |
| Pcie- 8/6-Pin X8 | |
| Sata X 12 | |
| Peripheral 4-Pin X5 | |
| Floppy X1 | |
| Rog-Thor-1200P | Quantity |
| Power Cord | 1 |
| Motherboard Power Cable (24-Pin) | 1 |
| Cpu Cables (4+4-Pin) | 2 |
| Pcie Cables (6+2-Pin) | 6 |
| Sata Cables | 3 |
| Peripheral Cables | 2 |
| Sata To Peripheral Cable | 1 |
| Floppy Cable | 1 |
| Addressable Rgb Cables | 2 |
| Hardware Specification | Cable Contents |
| Rog-Thor-1200P | Quantity |
| Rog Sticker | 1 |
| Rog Cable Tie | 6 |
| Sleeved Cable Combs (6-Pin) | 4 |
| Sleeved Cable Combs (8-Pin) | 10 |
| Sleeved Cable Combs (24-Pin) | 2 |
| Chassis Screws Package | 1 |
| Cable Tie | 12 |
| User Manual | 1 |
Description
Features
- Oled Power Display
The Rog Thor Is The First Pc Psu In The World To Feature An Integrated Oled Panel, Offering A Real-Time Display Of Power Draw. Now You Can See At A Glance How Much Juice Your Rig Is Using.
- Asus Aura Sync
Addressable Aura Rgb Leds Built-In And Ready For You To Create Your Custom Look.
- Rog Thermal Solution
The Integrated Rog Heatsinks Have 2X More Volume Than Traditional Designs, Resulting In 20% Lower Temperatures Inside The Rog Thor Psu. This Enables Cooler Operation, Extending The Lifespan Of Components And Allowing 0Db Operation Long After Standard Designs Would Have To Spin Up Their Fans.
- Patented Wing-Blade Fan With 0Db Technology
Rog Thor Psu Equipped With A 135Mm Patented Wing-Blade Fan To Maximize Component Lifespan. 0Db Technology Utilizes Thermal Sensors To Allow The Fan To Switch Off Completely At Lower Wattages – Enabling Totally Silent Operation.
- 100% Japanese Capacitors
Provide Longer Product Life Span, Better Efficiency And Better Quality For Psu.
- 80 Plus Platinum Certification
The Rog Thor 1200W Platinum Utilizes Top-End Japanese Capacitors To Ensure Efficient Operation. This Has Earned An 80 Plus Platinum Certification, Which Guarantees 89% Efficiency At 100% Load And 92% At 50% Load. The Increased Efficiency Produces Less Heat, Reducing Fan Noise And Increasing Reliability.
- 10-Year Limited Warranty:
We’Re So Confident About The Reliability Of The Rog Thor Psu That We Back It With A Worldwide Limited 10-Year Warranty.
* Core Product Operation Is Guaranteed For 10 Years. The Oled Panel And Rgb Leds Have A 3-Year Warranty.
Specifications
| Model | Rog-Thor-1200P |
| Intel Specification | Atx12V |
| Dimensions | 190 X 150 X 86 Mm |
| Efficiency | 80Plus Platinum |
| (At 20%/50%/100% Load Ac 115V 60Hz And Ac 230V 50Hz, The Power Efficiency Is 90%/92%/89%). | |
| Protection Features | Opp/Ovp/Scp/Ocp/Otp |
| Hazardous Materials | Rohs |
| Ac Input Range | 100-240Vac |
| Rgb Lighting | Compatible With Asus Aura Sync |
| Dc Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 100A 0.3A 3A |
| Total Output | 1200W |
| Connectors | Mb 24/20-Pin X1 |
| Cpu 8/4-Pin X2 | |
| Pcie- 8/6-Pin X8 | |
| Sata X 12 | |
| Peripheral 4-Pin X5 | |
| Floppy X1 | |
| Rog-Thor-1200P | Quantity |
| Power Cord | 1 |
| Motherboard Power Cable (24-Pin) | 1 |
| Cpu Cables (4+4-Pin) | 2 |
| Pcie Cables (6+2-Pin) | 6 |
| Sata Cables | 3 |
| Peripheral Cables | 2 |
| Sata To Peripheral Cable | 1 |
| Floppy Cable | 1 |
| Addressable Rgb Cables | 2 |
| Hardware Specification | Cable Contents |
| Rog-Thor-1200P | Quantity |
| Rog Sticker | 1 |
| Rog Cable Tie | 6 |
| Sleeved Cable Combs (6-Pin) | 4 |
| Sleeved Cable Combs (8-Pin) | 10 |
| Sleeved Cable Combs (24-Pin) | 2 |
| Chassis Screws Package | 1 |
| Cable Tie | 12 |
| User Manual | 1 |
