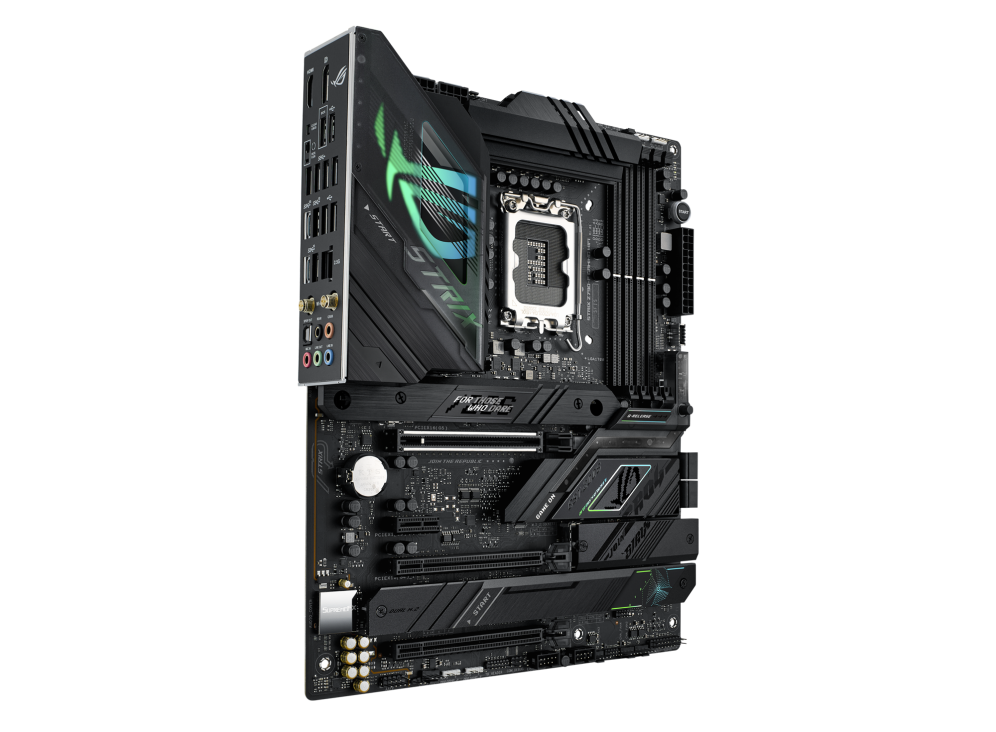

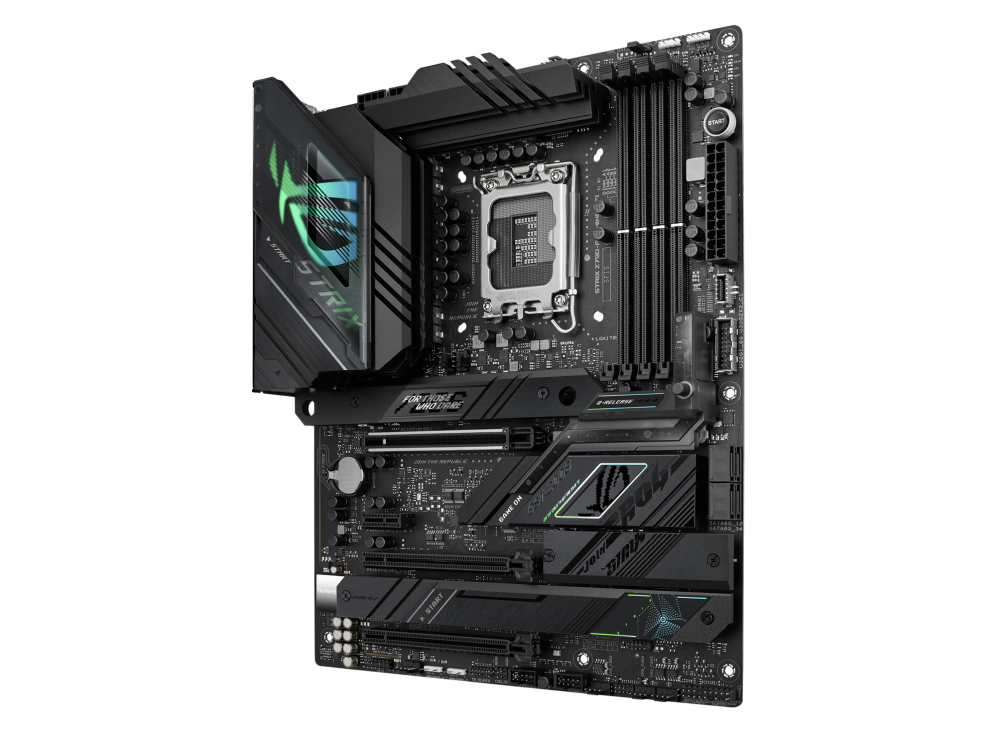

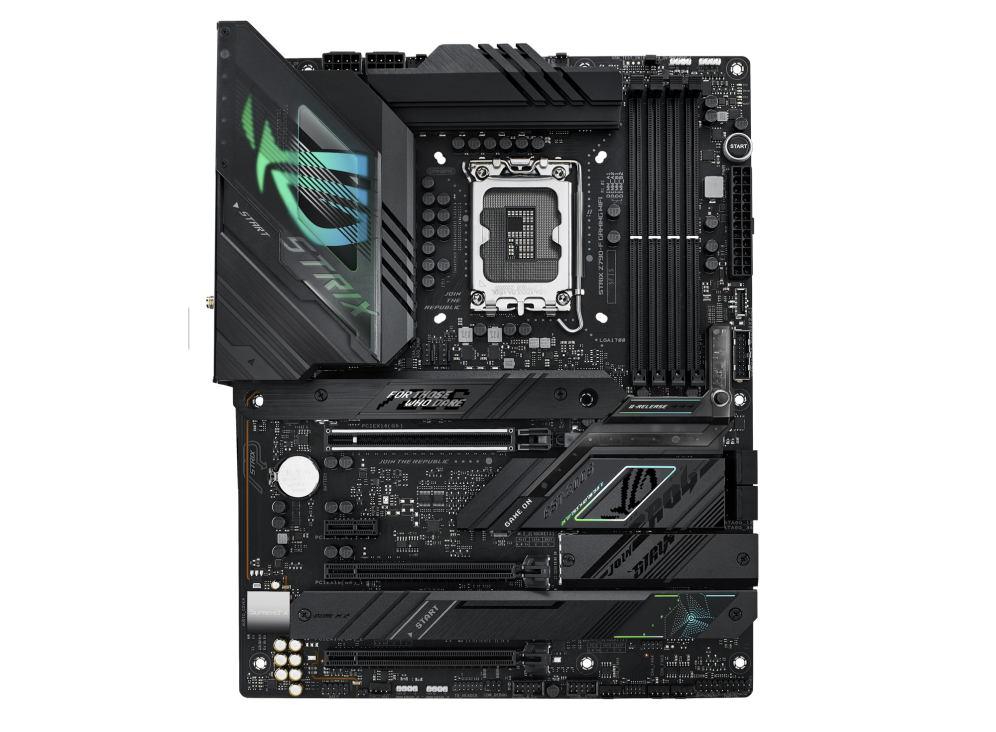

Asus Rog Strix Z790 F Gaming
Asus Rog Strix Z790 F Gaming - Image 2
Asus Rog Strix Z790 F Gaming - Image 3
Asus Rog Strix Z790 F Gaming - Image 4

Asus Rog Strix Z790 F Gaming

In Stock
SKU : 1083775 Product Type: Brand:
₹39,300

Specifications CPU Intel†Socket LGA1700 for 13th Gen Intel†Core´ Processors & 12th Gen Intel†Core´, Pentium†Gold and Celeron†Processors* Supports Intel†Turbo Boost Technology 2.0and Intel†Turbo Boost Max Technology 3.0** * Refer to www.asus.com f

In Stock
Add to wishlist Compare
In Stock

Additional information

Specifications



CPU Intel†Socket LGA1700 for 13th Gen Intel†Core´ Processors & 12th Gen Intel†Core´, Pentium†Gold and Celeron†Processors*
Supports Intel†Turbo Boost Technology 2.0and Intel†Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel†Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel† Z790 Chipset
Memory 4 x DIMM, Max. 128GB, DDR5 7800(OC)/7600(OC)
7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel†Extreme Memory Profile(XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration,for more information refer to www.asus.com for memory support list.
Graphics 1 x DisplayPort**
1 x HDMI†port***
* Graphics specifications may vary betweenCPU types. Please refer to ww.intel.com for any updates.
** Supports max.8K@60Hzas specified inDisplayPort 1.4.
*** Supports4K@60Hzas specified in HDMI 2.1.
**** VGA resolution support depends onprocessors­ or graphic cards­ resolution.
Expansion Slot Intel†13th & 12th Gen Processors
1 x PCIe 5.0 x16 slotIntel†Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot* Please check the PCIe bifurcation table
on the support site (https://www.asus.com/support/FAQ/1037507/).
** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel†13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel†Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel†Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet 1 x Intel†2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
2—Š2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth†v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
USB Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2—Š2 port (1 x USB Type-C†)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C†)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)
1 x USB 3.2 Gen 2—Š2 connector (supports USB Type-C†with up to 30W PD Fast-charge)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports 4 additional USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
± Impedance sense for front and rear headphone outputs
± Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
± High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
± Supports up to 32-Bit/384 kHz playback
Audio Features
± SupremeFX Shielding Technology
± Savitech SV3H712 AMP
± Rear optical S/PDIF out port
± Premium audio capacitors
± Audio cover
Back Panel I/O Ports 1 x USB 3.2 Gen 2—Š2 port (1 x USB Type-C†)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C†)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI†port
1 x Wi-Fi Module
1 x Intel†2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack´ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectorsStorage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s portsUSB
1 x USB 3.2 Gen 2—Š2 connector (supports USB Type-C†with up to 30W PD Fast-charge)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Start button
1 x Thermal Sensor header
1 x Thunderbolt´ header
Special Features Extreme Engine Digi+
± 5K Black Metallic CapacitorsASUS Q-Design
± M.2 Q-Latch
± PCIe Slot Q-Release
± Q-DIMM
± Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
± Q-SlotASUS Thermal Solution
± M.2 heatsink backplate
± M.2 heatsink
± VRM heatsink designASUS EZ DIY
± BIOS FlashBack´ button
± BIOS FlashBack´ LED
± Clear CMOS button
± CPU Socket lever protector
± ProCool II
± Pre-mounted I/O shield
± SafeSlot
± SafeDIMM
Aura Sync
± Aura RGB header
± Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2—Š2 with PD Fast-charge Support
± Support: up to 30W charging
± Output: 5/9V max. 3A, 12V max. 2.5A
± Compatible with PD3.0
Software Features ROG Exclusive Software
± GameFirst VI
± ROG CPU-Z
± Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
± Sonic Radar III
± DTS†Sound UnboundASUS Exclusive Software
Armoury Crate
± AIDA64 Extreme (60 days free trial)
± Aura Creator- Aura Sync
± Xpert 4 (with AI Cooling II)
± Power Saving
± Two-Way AI Noise Cancellation
AI Suite 3
± Easy Optimization with AI Overclocking
± TPU
± DIGI+ VRM
± Turbo app
± PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
± ASUS CrashFree BIOS 3
± ASUS EZ Flash 3
± ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cablesAdditional Cooling Kit
1 x Thermal pad for M.2
1 x DDR5 fan holderMiscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate RubberPackageDocumentation
1 x User guide
Operating System Windows† 11, Windows† 10 64-bit
Form Factor ATXForm Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty 3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
