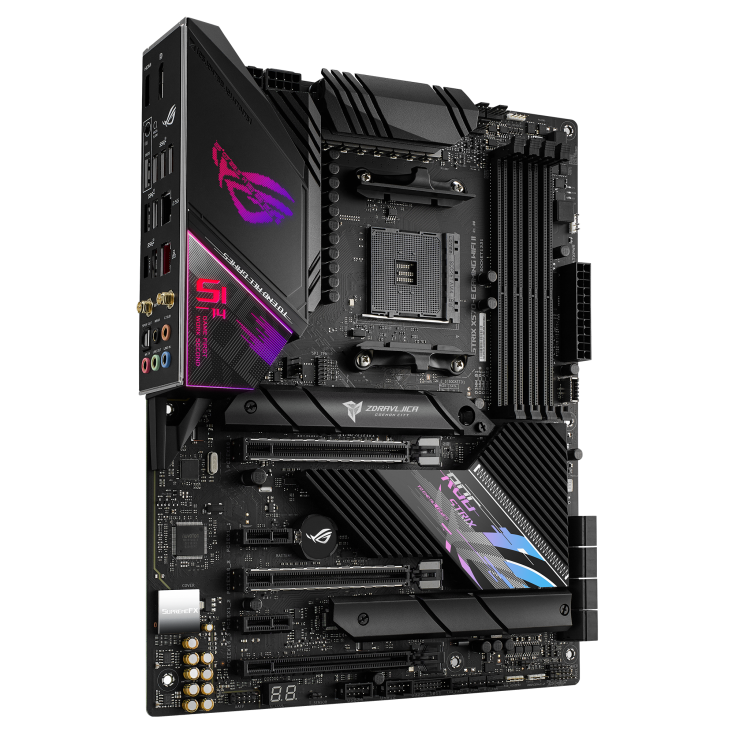

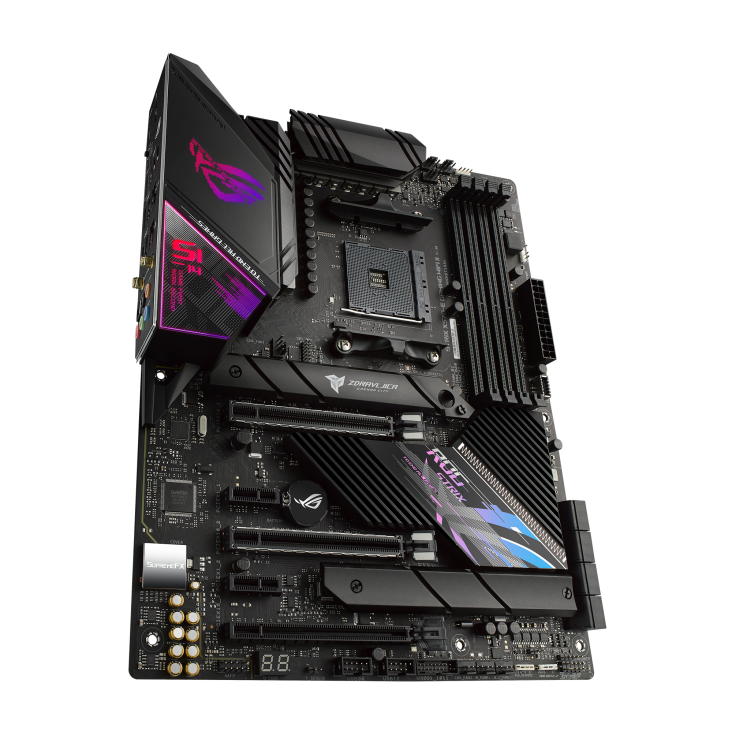

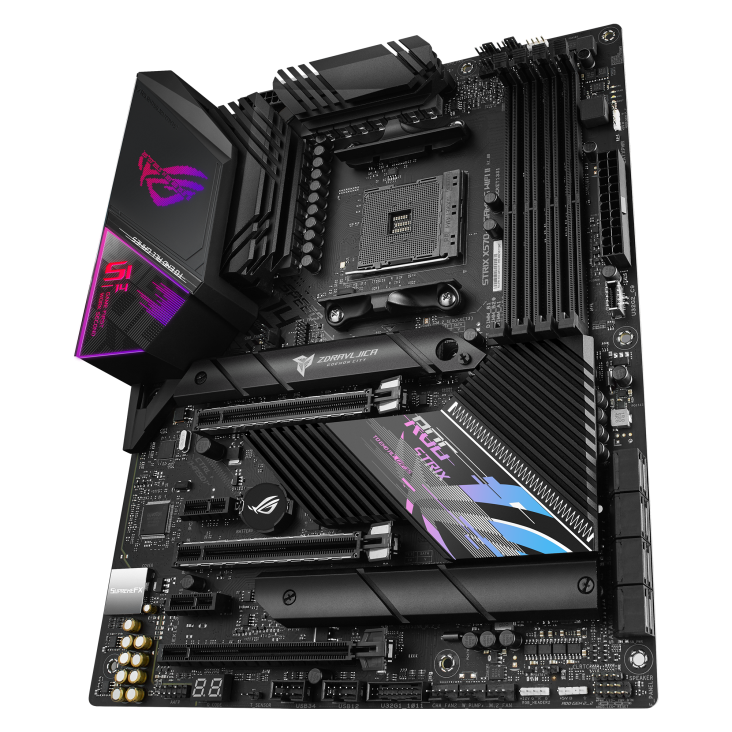

Asus Rog Strix X570 E Gaming
In Stock
₹35,850
Specifications AMD AM4 socket:?Ready for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2?Gen 2?and AMD?Store MI?to maximi
In Stock
In Stock
Additional information
Specifications
- AMD AM4 socket:?Ready for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2?Gen 2?and AMD?Store MI?to maximize connectivity and speed
- Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive Cooling: Passive chipset heatsink, VRM heatsink with 8 mm heat pipe, dual on-board M.2 heatsinks and a water pump header
- High-Performance Networking: 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LAN Guard, WiFi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V
- Best Gaming Connectivity: Supports PCIe 4.0, HDMI 2.0, and DisplayPort´ 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors
- 5-Way Optimization: Automated system-wide tuning including custom overclocking and cooling profiles
- Industry-Leading Gaming Audio: High fidelity audio with Supreme FX S1220A, DTS Sound Unbound and Sonic Studio III
- DIY Friendly Design: M.2 Q-Latch, patented pre-mounted I/O shield, ASUS Safe Slot and BIOS Flash Back
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
Specifications
| Chipset | X570 |
| Memory | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
| 4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory | |
| AMD Ryzen 5000 and 4000 G-Series Processors | |
| 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory | |
| AMD Ryzen 2000 Series Desktop Processors | |
| 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory | |
| AMD Ryzen 2000 and 3000 G-Series Desktop Processors | |
| 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory | |
| Dual Channel Memory Architecture | |
| ECC Memory (ECC mode) support varies by CPU. | |
| Graphics | 1 x DisplayPort |
| 1 x HDMI port | |
| ± Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz | |
| ± Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz | |
| Expansion Slots | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
| 2 x PCIe 4.0 x16 (x16 or dual x8)* | |
| AMD Ryzen 5000 G Series/4000 G-Series/ 2000 Series Processor | |
| 2 x PCIe 3.0 x16 (x16 or dual x8)* | |
| AMD Ryzen 2000 G-Series/ 3000 G-Series Processor | |
| 1 x PCIe 3.0 x16 (x8 mode)* | |
| AMD X570 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 2 x PCIe 4.0 x1 | |
| *PCIeX16_3 slot shares bandwidth with PCIeX1_2. | |
| Storage | Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports |
| AMD Ryzen 5000 Series/ 3000 Series Desktop Processors:M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)AMD Ryzen 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series ProcessorM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) | |
| AMD X570 Chipset | |
| M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
| 8 x SATA 6Gb/s ports | |
| Supports RAID 0, 1, 10 | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| 1 x Intel I211-AT 1Gb Ethernet | |
| Anti-surge LAN Guard | |
| ROG GameFirst Technology | |
| Wireless & Bluetooth | Wi-Fi 6E |
| 22 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| Bluetooth v5.2 | |
| USB | AMD Ryzen TM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors |
| ± 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A) | |
| AMD Ryzen TM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors | |
| ± 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A) | |
| AMD X570 chipset | |
| ± 1 x USB 3.2 Gen2 front panel connector | |
| ± 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C) | |
| ± 2 x USB3.2 Gen1 ports (at front panel) | |
| ± 4 x USB 2.0 ports (at front panel) | |
| Front USB: | |
| Total 7 ports | |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
| ± Impedance sense for front and rear headphone outputs | |
| ± Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| ± Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| ± High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| ± Supports up to 32-Bit/192 kHz playback* | |
| Audio Features | |
| ± Supreme FX Shielding Technology | |
| ± Gold-plated audio jacks | |
| ± Rear optical S/PDIF out port | |
| ± Premium audio capacitors | |
| ± Audio cover | |
| Back Panel I/O Ports | 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C) |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi Module | |
| 1 x Intel I211-AT 1Gb Ethernet port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Gold-plated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS Flash Back button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 2 x 4-pin Chassis Fan headers | |
| 1 x 4-pin M.2 Fan header | |
| 1 x W_PUMP+ header | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 8 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 2 x Addressable Gen 2 headers | |
| 2 x AURA RGB headers | |
| 1 x Clear CMOS header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x Speaker header | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Special Features | Extreme Engine Digi+ |
| ± 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| ± M.2 Q-Latch | |
| ± Q-Code | |
| ± Q-DIMM | |
| ± Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| ± Q-Slot | |
| ASUS Thermal Solution | |
| ± M.2 heatsink | |
| ASUS EZ DIY | |
| ± BIOS Flash Back button | |
| ± BIOS Flash Back LED | |
| ± ProCool II | |
| ± Pre-mounted I/O shield | |
| ± Safe Slot | |
| AURA Sync | |
| ± AURA RGB headers | |
| ± Addressable Gen 2 headers | |
| Software Features | ROG Exclusive Software |
| ± RAM Cache III | |
| ± ROG CPU-Z | |
| ± GameFirst V | |
| ± Sonic Studio III + Sonic Studio Virtual Mixer | |
| ± Sonic Radar III | |
| ± DTS Sound Unbound | |
| ± Over wolf | |
| ± Anti-virus software | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| ± AIDA64 Extreme (60 days free trial) | |
| ± AURA Creator | |
| ± AURA Sync | |
| ± Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| ± 5-Way Optimization by Dual Intelligent Processors 5 | |
| TPU | |
| EPU | |
| DIGI+ VRM | |
| Fan Xpert 4 | |
| Turbo app | |
| ± EZ update | |
| DAEMON Tools | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ± ASUS Crash Free BIOS 3 | |
| ± ASUS EZ Flash 3 | |
| ± ASUS UEFI BIOS EZ Mode | |
| Dynamic OC Switcher | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PXE |
| Accessories | Cables |
| 4 x SATA 6Gb/s cables | |
| 1 x Thermistor cable pack | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x Cable ties pack | |
| 1 x M.2 Rubber Package | |
| 1 x M.2 Q-Latch package | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 1 x ROG Strix thank you card | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User manual | |
| Package Dimensions | ?34.59 x 27.3 x 7.9 cm |
| Weight | ?2 kg 90 g |
| Warranty | 3 Years |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
