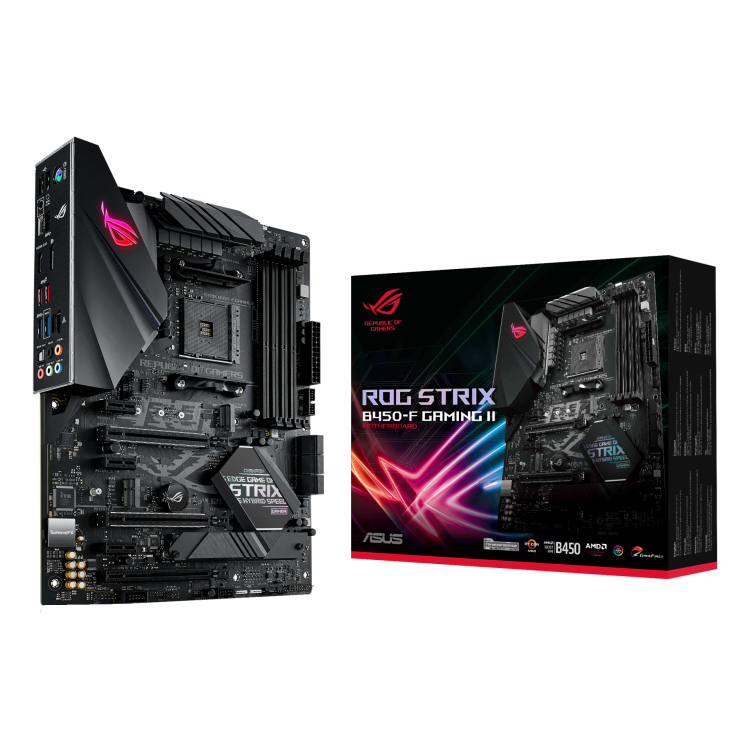

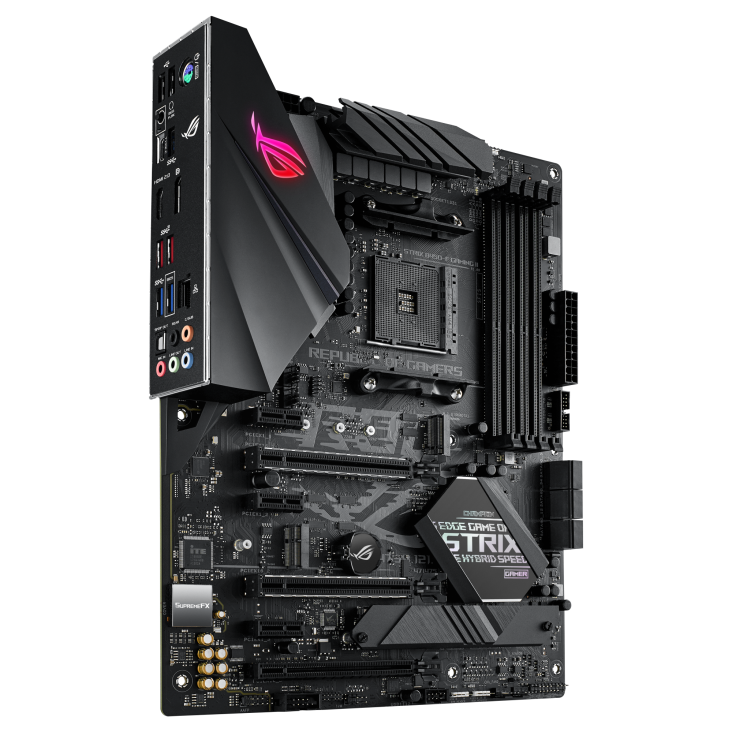

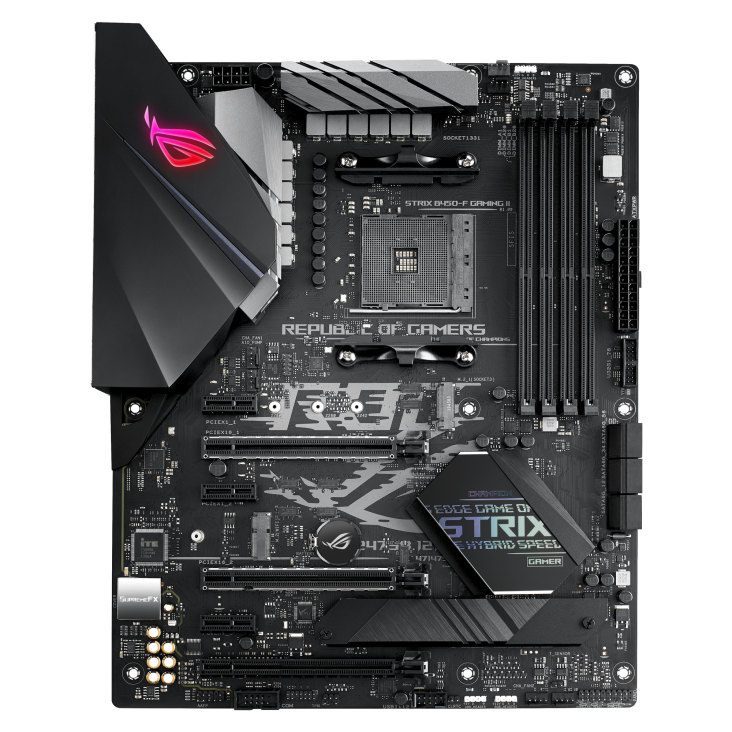

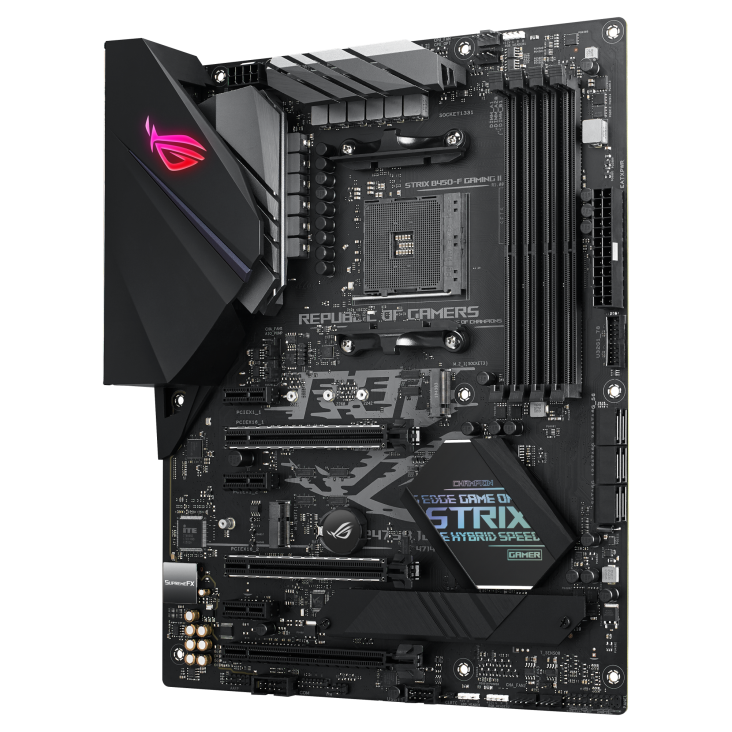

Asus Rog B450 F Strix Ii
In Stock
₹13,100
Specifications AM4 socket: Ready for 3rd Gen AMD Ryzen´ processors Robust power solution: 8+4 discrete MOS with high-quality alloy chokes and durable capacitors Gaming-optimized connectivity: Dual M.2, USB 3.2 Gen 2, plus HDMI 2.0 and DisplayPort´ 1.2
In Stock
In Stock
Additional information
Specifications
- AM4 socket: Ready for 3rd Gen AMD Ryzen´ processors
- Robust power solution: 8+4 discrete MOS with high-quality alloy chokes and durable capacitors
- Gaming-optimized connectivity: Dual M.2, USB 3.2 Gen 2, plus HDMI 2.0 and DisplayPort´ 1.2 output support
- Smooth networking: M.2 socket with E-key and Intel Gigabit Ethernet with ASUS LANGuard
- Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack´, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec and Sonic Studio III for immersive sound
Specifications
|
CPU
|
|
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen´/2nd and 1st Gen AMD Ryzen´ with Radeon´ Vega Graphics/Athlon´ with Radeon´ Vega Graphics Processors
|
|
Chipset
|
|
AMD B450
|
|
Memory
|
|
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
|
|
3rd/2nd/1st Gen AMD Ryzen´/ 2nd and 1st Gen AMD Ryzen´ with Radeon´ Vega Graphics/ Athlon´ with Radeon´ Vega Graphics Processors
|
|
Dual Channel Memory Architecture
|
|
Graphic
|
|
1 x HDMI 2.0b
|
|
1 x DisplayPort 1.2
|
|
*Graphics specifications may vary between CPU types.
|
|
Integrated Graphics Processor
|
|
Multi-GPU Support
|
|
Supports AMD 3-Way CrossFireX´ Technology
|
|
Expansion Slots
|
|
2 x PCIe 3.0 x16 (x16 or x8/x4)
|
|
1 x PCIe 2.0 x16 (x4 mode) *
|
|
3rd/2nd/1st Gen AMD Ryzen´ Processors
|
|
1 x PCIe 3.0 x16 (x4 mode)
|
|
3 x PCIe 2.0 x1
|
|
AMD Athlon´ with Radeon´ Vega Graphics Processors
|
|
AMD B450 chipset
|
|
1 x PCIe 3.0 x16 (x8 mode)
|
|
Storage
|
|
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
|
|
3rd/2nd/1st Gen AMD Ryzen´ Processors :
|
|
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*
|
|
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*
|
|
2nd and 1st Gen AMD Ryzen´ with Radeon´ Vega Graphics Processors :
|
|
1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
|
|
2 x SATA 3Gb/s port(s),
|
|
2 x SATA 6Gb/s port(s),
|
|
2 x SATA 6Gb/s port(s)
|
|
AMD Athlon´ with Radeon´ Vega Graphics Processors :
|
|
AMD B450 chipset :
|
|
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
|
|
4 x SATA 6Gb/s port(s),
|
|
Support Raid 0, 1, 10
|
|
LAN
|
|
Intel I211-AT 1Gb Ethernet
|
|
ASUS LANGuard
|
|
Audio
|
|
ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A
|
|
– Audio Shielding
|
|
– Premium Japanese audio capacitors
|
|
– Audio Cover
|
|
– Optical S/PDIF out header(s) at mid-board
|
|
– SupremeFX Shielding´ Technology
|
|
– Dual OP Amplifiers
|
|
– Impedance sense for front and rear headphone outputs
|
|
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
– High quality120dBSNR stereo playback outputand113dBSNR recording input
|
|
– Supports up to 32-Bit/192kHz playback *
|
|
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
|
|
Audio Feature :
|
|
USB Ports
|
|
4 x USB 3.2 Gen 1 port(s)(3 x Type-A +1 x USB Type-C)
|
|
Front USB Port ( Total 4 )
|
|
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
|
|
Rear USB Port ( Total 8 )
|
|
2 x USB 3.2 Gen 1 port(s)
|
|
2 x USB 2.0 port(s)
|
|
Software Features
|
|
ROG Exclusive Software
|
| – RAMCache III |
| – ROG CPU-Z |
| – GameFirst VI |
| – Sonic Studio III + Sonic Studio Virtual Mixer |
| – Sonic Radar III |
| – Overwolf |
| – Anti-virus software |
| ASUS Exclusive Software Features |
| Armoury Crate |
| – Aura Creator |
| – Aura Sync |
| Ai noise cancelling microphone |
| AI Suite 3: |
| – 5-Way Optimization by Dual Intelligent Processors 5 |
| TPU |
| EPU |
| DIGI+ VRM |
| Fan Xpert 4 |
| Turbo app |
| – EZ update |
| AI Charger |
| UEFI BIOS |
| ASUS EZ DIY |
| – ASUS CrashFree BIOS 3 |
| – ASUS EZ Flash 3 |
| – ASUS UEFI BIOS EZ Mode |
|
ASUS Special Features
|
|
Aura Sync
|
| – Standard RGB header(s) |
| – Addressable Gen 2 RGB header(s) |
| ASUS Q-Design |
| – ASUS Q-DIMM |
| – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) |
| – ASUS Q-Slot |
| ASUS Thermal Solution |
| – Aluminum M.2 heatsink |
| ASUS EZ DIY |
| -BIOS FlashBack´ button |
| -BIOS FlashBack´ LED |
| -Clear CMOS header |
| -Pre-mounted I/O shield |
| – SafeSlot |
|
Back I/O Ports
|
|
1 x Intel I211-AT 1Gb Ethernet
|
|
2 x USB 3.2 Gen 2
|
|
3 x USB 3.2 Gen 1 Type-A
|
|
1 x USB 3.2 Gen 1 USB Type-C
|
|
1 x BIOS FlashBack´ Button(s)
|
|
1 x DisplayPort
|
|
1 x Optical S/PDIF out
|
|
5 x Audio jack(s)
|
|
1 x PS/2 keyboard/mouse combo port(s)
|
|
1 x HDMI
|
|
2 x USB 2.0
|
|
Internal I/O Ports
|
|
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
|
|
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
|
|
1 x Addressable RGB header
|
|
1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
|
|
1 x TPM header
|
|
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
|
|
1 x CPU Fan connector(s)
|
|
1 x CPU OPT Fan connector(s)
|
|
3 x Chassis Fan connector(s)
|
|
1 x AIO_PUMP connector
|
|
1 x AAFP connector
|
|
2 x Aura RGB Strip Header(s)
|
|
1 x COM port(s) connector(s)
|
|
6 x SATA 6Gb/s connector(s)
|
|
1 x 24-pin EATX Power connector(s)
|
|
1 x 8-pin ATX 12V Power connector(s)
|
|
1 x System panel(s)
|
|
1 x Thermal sensor connector(s)
|
|
1 x Clear CMOS jumper(s)
|
|
Accessories
|
|
1 x M.2 SSD screw package(s)
|
|
1 x M.2 Rubber Package(s)
|
|
4 x SATA 6Gb/s cable(s)
|
|
1 x ROG Strix stickers
|
|
1 x Cable ties pack(s)
|
|
1 x Extension Cable for RGB strips (80 cm)
|
|
1 x ROG Thank you card
|
|
User¥s manual
|
|
1 x Supporting DVD
|
|
1 x Extension cable for Addressable LED
|
|
BIOS
|
|
256 Mb Flash ROM, UEFI AMI BIOS
|
|
Manageability
|
|
WOL by PME, PXE
|
|
Operating System
|
|
Windows 10 64-bit
|
|
Form Factor
|
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
|
ATX Form Factor
|
|
Note
|
|
* PCIe x16_3 slot share bandwidth with PCIe x1_1, PCIe x1_2 and PCIe x1_3
|
| * When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled. |
| *When the M.2_2 is occupied +A1:A163by M.2 device, PCIe x16_1 will run at x8 mode. |
