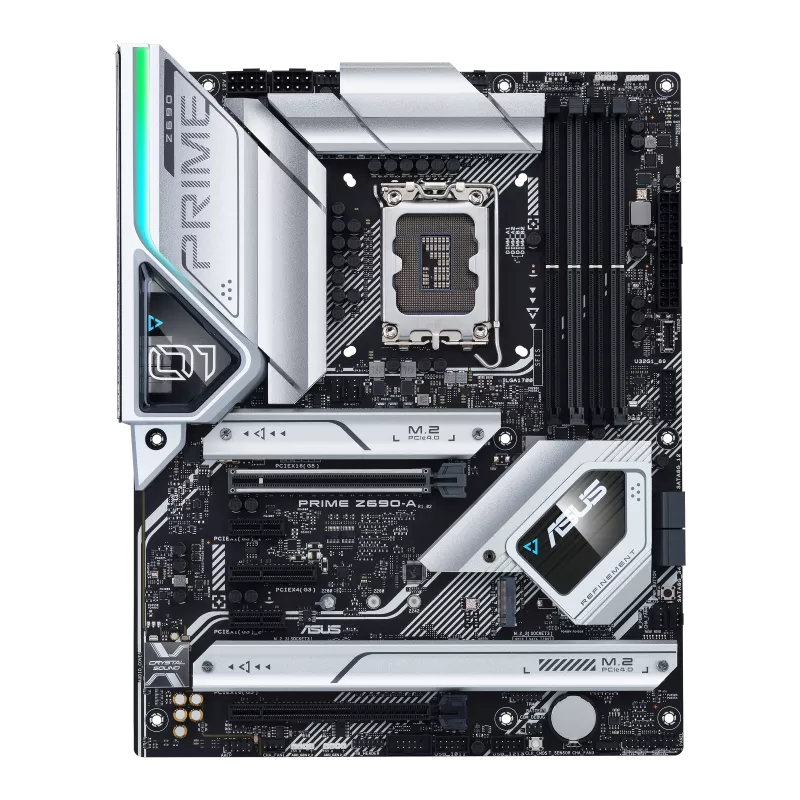

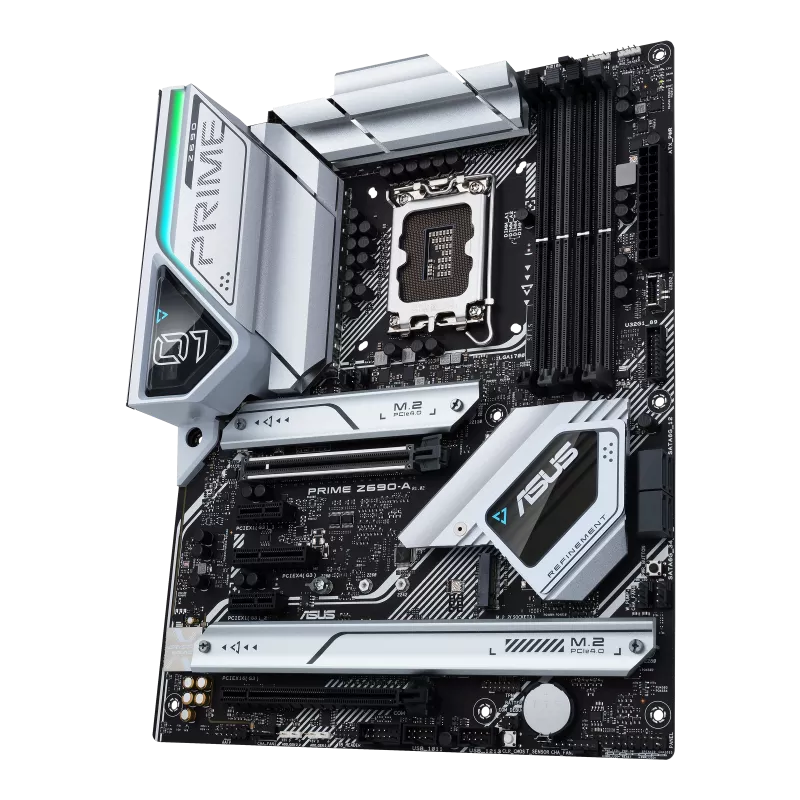

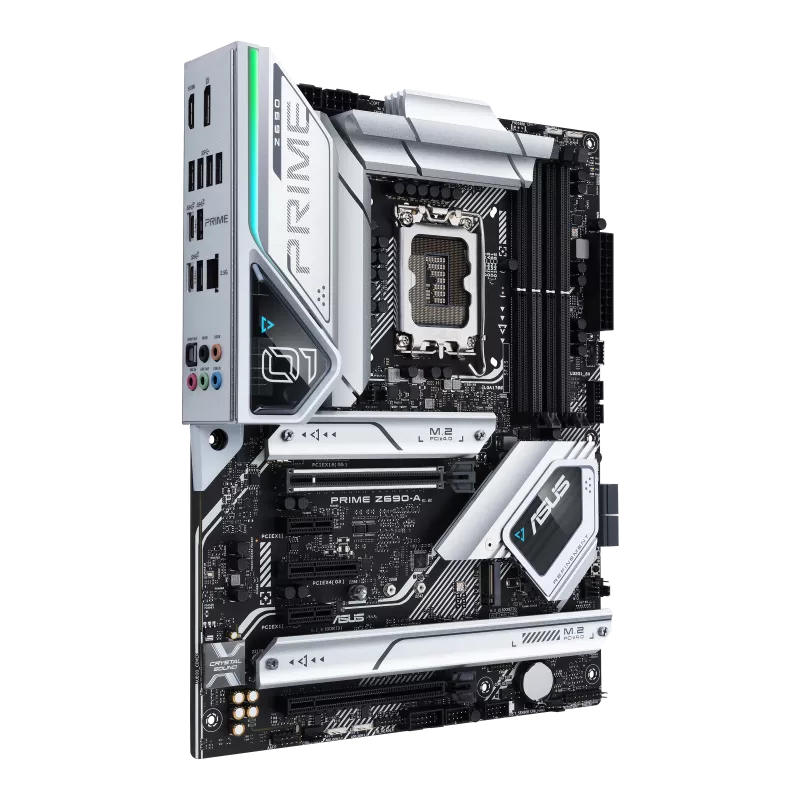

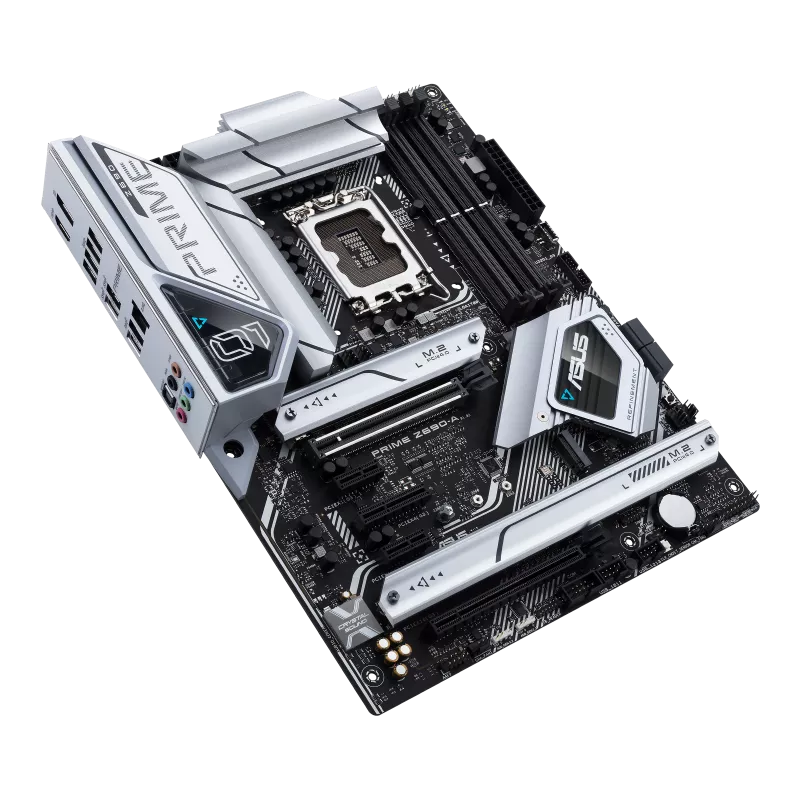

Asus Prime Z690 A Ddr5 Intel
In Stock
₹25,500
Specifications CPU Intel Socket LGA1700 for 12th Gen Intel Core´, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel
In Stock
In Stock
Additional information
Specifications
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core´, Pentium Gold and Celeron Processors |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Z690 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI port*** | |
| * Graphics specifications may vary between CPU types. | |
| ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Storage | Supports4xM.2slotsand4xSATA6Gb/sports |
| Intel12thGen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| – Intel12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel Z690 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots | |
| Ethernet | |
| 1 x Intel 2.5Gb Ethernet | |
| ASUS LANGuard | |
| USB | Rear USB:Total 8 ports |
| 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) | |
| 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) | |
| 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |
| Front USB:Total 7 ports | |
| 1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C) | |
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x M.2 Rubber Package(s) | |
| 1 x Q-connector | |
| 1 x M.2 Q-Latch package(s) | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows11 64-bit,Windows1064-bit |
| Form Factor | |
| ATX | |
| 30.5cm x 24.4cm |
Description
Specifications
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core´, Pentium Gold and Celeron Processors |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Z690 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI port*** | |
| * Graphics specifications may vary between CPU types. | |
| ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Storage | Supports4xM.2slotsand4xSATA6Gb/sports |
| Intel12thGen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| – Intel12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel Z690 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots | |
| Ethernet | |
| 1 x Intel 2.5Gb Ethernet | |
| ASUS LANGuard | |
| USB | Rear USB:Total 8 ports |
| 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) | |
| 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) | |
| 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |
| Front USB:Total 7 ports | |
| 1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C) | |
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x M.2 Rubber Package(s) | |
| 1 x Q-connector | |
| 1 x M.2 Q-Latch package(s) | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows11 64-bit,Windows1064-bit |
| Form Factor | |
| ATX | |
| 30.5cm x 24.4cm |
