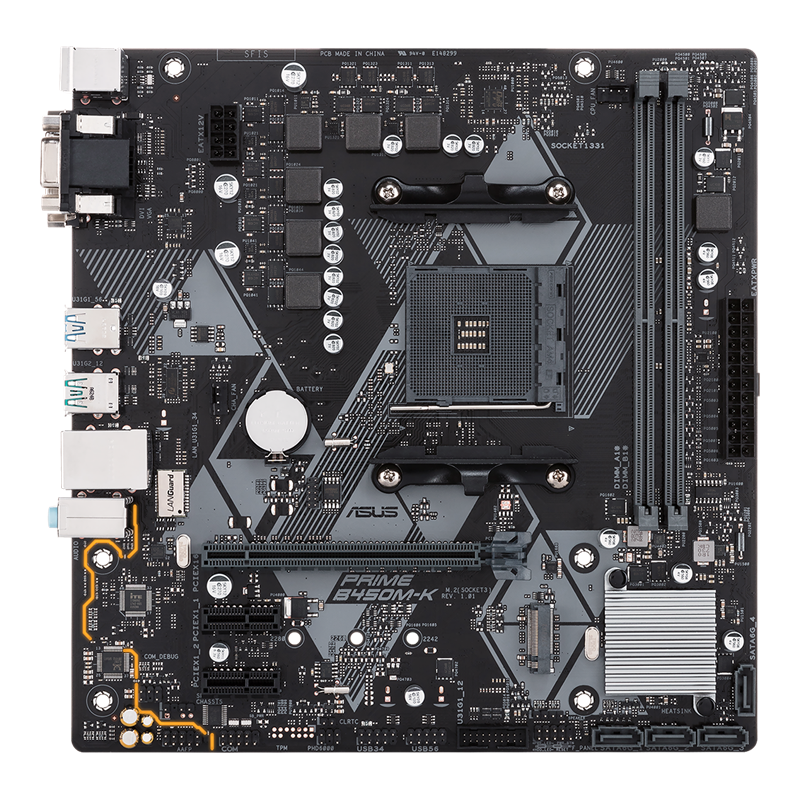

Asus Prime B450M K Amd Am4
In Stock
₹6,800
Specifications Specification Details Model PRIME B450M-K CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processor
In Stock
In Stock
Additional information
Specifications
| Specification | Details |
|---|---|
| Model | PRIME B450M-K |
| CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors,* Refer to www.asus.com for CPU support list |
| Chipset | AMD B450 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory, 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors ,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,* The maximum memory frequency supported varies by processor. |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors,Multi-VGA output support : DVI-D/D-Sub ports,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
| Expansion Slots | 3rd/2nd/1st Gen AMD Ryzen Processors ,1 x PCIe 3.0/2.0 x16 (x8 mode) * 1 , AMD B450 chipset ,1 x PCIe 3.0/2.0 x16 (x16 mode), AMD Athlon with Radeon Vega Graphics Processors ,1 x PCIe 3.0/2.0 x16 (max at x4 mode),2 x PCIe 2.0 x1 |
| Storage | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : , AMD B450 chipset : ,4 x SATA 6Gb/s port(s), gray,,Support Raid 0, 1, 10,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), AMD Athlon with Radeon Vega Graphics Processors : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
| LAN | Realtek RTL8111H, 1 x Gigabit LAN Controller(s),ASUS LAN Guard |
| Audio | – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.,Realtek ALC8878-Channel High Definition Audio CODEC, Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : ,2 x USB 3.1 Gen 2 port(s) (2 at back panel, ), AMD B450 chipset : ,4 x USB 2.0/1.1 port(s) (4 at mid-board),4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue),2 x USB 3.1 Gen 1 port(s) (2 at mid-board) |
| Special Features | ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: Premium components provide better power efficiency, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :,- Stylish Fanless Design Heat-sink solution,- ASUS Fan Xpert, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode,- Multi-language BIOS, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM |
| Back I/O Ports | 2 x USB 3.1 Gen 2,4 x USB 3.1 Gen 1,1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),1 x DVI-D,1 x D-Sub,1 x LAN (RJ45) port(s),3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x Chassis Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x Speaker connector |
| Accessories | 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Anchor,1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Operating System | Windows 7 64-bit * 2 ,Windows 10 64-bit |
| Form Factor | mATX Form Factor,8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
| Note | 1*Support NVMe PCIe RAID. 2*Windows 7 64-bit is only supported when using AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors. |
Description
Specifications
| Specification | Details |
|---|---|
| Model | PRIME B450M-K |
| CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors,* Refer to www.asus.com for CPU support list |
| Chipset | AMD B450 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory, 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors ,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,* The maximum memory frequency supported varies by processor. |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors,Multi-VGA output support : DVI-D/D-Sub ports,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
| Expansion Slots | 3rd/2nd/1st Gen AMD Ryzen Processors ,1 x PCIe 3.0/2.0 x16 (x8 mode) * 1 , AMD B450 chipset ,1 x PCIe 3.0/2.0 x16 (x16 mode), AMD Athlon with Radeon Vega Graphics Processors ,1 x PCIe 3.0/2.0 x16 (max at x4 mode),2 x PCIe 2.0 x1 |
| Storage | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : , AMD B450 chipset : ,4 x SATA 6Gb/s port(s), gray,,Support Raid 0, 1, 10,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), AMD Athlon with Radeon Vega Graphics Processors : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
| LAN | Realtek RTL8111H, 1 x Gigabit LAN Controller(s),ASUS LAN Guard |
| Audio | – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.,Realtek ALC8878-Channel High Definition Audio CODEC, Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : ,2 x USB 3.1 Gen 2 port(s) (2 at back panel, ), AMD B450 chipset : ,4 x USB 2.0/1.1 port(s) (4 at mid-board),4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue),2 x USB 3.1 Gen 1 port(s) (2 at mid-board) |
| Special Features | ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: Premium components provide better power efficiency, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :,- Stylish Fanless Design Heat-sink solution,- ASUS Fan Xpert, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode,- Multi-language BIOS, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM |
| Back I/O Ports | 2 x USB 3.1 Gen 2,4 x USB 3.1 Gen 1,1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),1 x DVI-D,1 x D-Sub,1 x LAN (RJ45) port(s),3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x Chassis Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x Speaker connector |
| Accessories | 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Anchor,1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Operating System | Windows 7 64-bit * 2 ,Windows 10 64-bit |
| Form Factor | mATX Form Factor,8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
| Note | 1*Support NVMe PCIe RAID. 2*Windows 7 64-bit is only supported when using AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors. |
