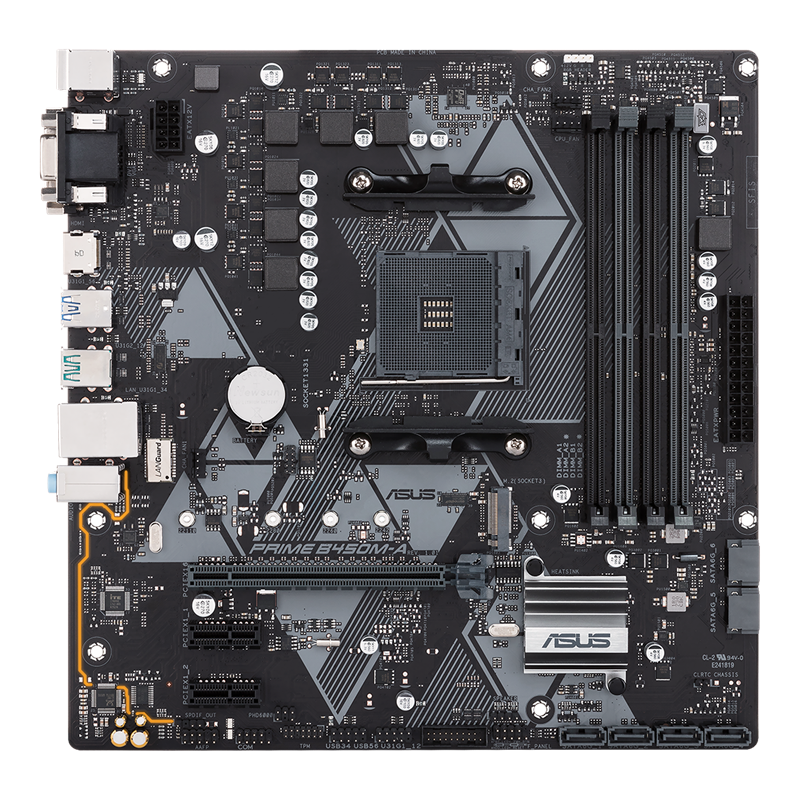

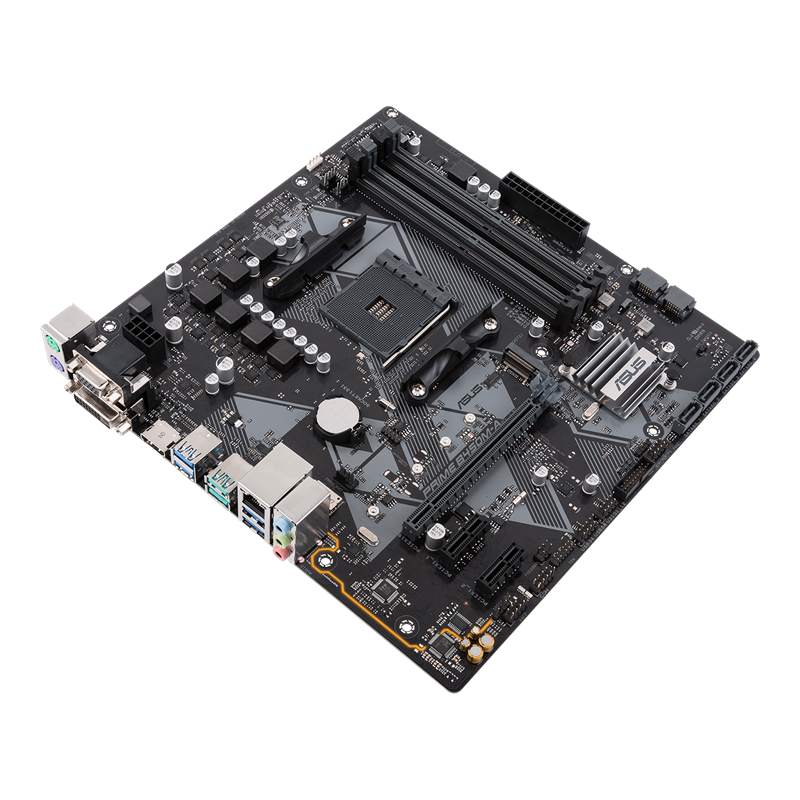

Asus Prime B450M A Amd Am4
Asus Prime B450M A Amd Am4 - Image 2
Asus Prime B450M A Amd Am4 - Image 3
Asus Prime B450M A Amd Am4 - Image 4

Asus Prime B450M A Amd Am4

In Stock
SKU : 101169 Product Type: Brand:
₹13,600

Specifications Specification Details Model PRIME B450M-A CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processor

In Stock
Add to wishlist Compare
In Stock

Additional information

Specifications

Specification Details
Model PRIME B450M-A
CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset AMD B450
Memory 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory, 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors ,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,* The maximum memory frequency supported varies by processor.
Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors,Multi-VGA output support : HDMI/DVI-D/D-Sub ports,- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Expansion Slots 3rd/2nd/1st Gen AMD Ryzen Processors ,1 x PCIe 3.0/2.0 x16 (x8 mode) * 1 , AMD B450 chipset ,1 x PCIe 3.0/2.0 x16 (x16 mode), AMD Athlon with Radeon Vega Graphics Processors ,1 x PCIe 3.0/2.0 x16 (max at x4 mode),2 x PCIe 2.0 x1
Storage 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : , 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : , AMD B450 chipset : ,2 x SATA 6Gb/s port(s),,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 2 ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)* 2 ,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10, AMD Athlon with Radeon Vega Graphics Processors :
LAN Realtek RTL8111H, 1 x Gigabit LAN Controller(s),ASUS LAN Guard
Audio – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.,Realtek ALC8878-Channel High Definition Audio CODEC, Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : ,2 x USB 3.1 Gen 2 port(s) (2 at back panel, ), AMD B450 chipset : ,4 x USB 2.0/1.1 port(s) (4 at mid-board),4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue),2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
Special Features ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: Premium components provide better power efficiency, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :,- Stylish Fanless Design Heat-sink solution,- ASUS Fan Xpert 2+, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode,- Multi-language BIOS, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM

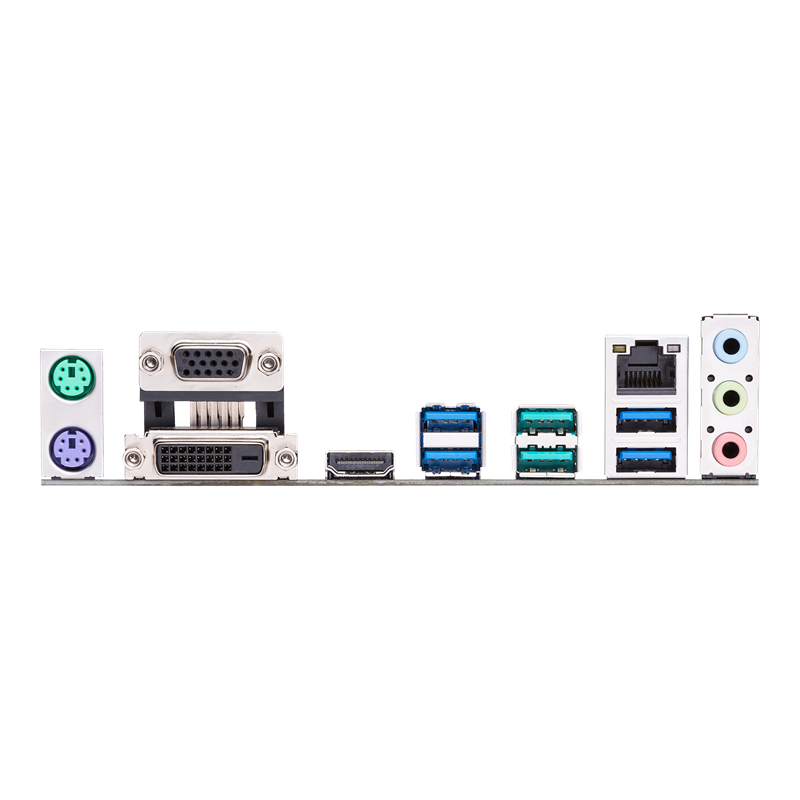

Back I/O Ports 2 x USB 3.1 Gen 2,4 x USB 3.1 Gen 1,1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),3 x Audio jack(s)
Internal I/O Ports 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),2 x Chassis Fan connector(s) (2 x 4-pin),1 x Aura RGB Strip Header,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x TPM header,1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x Speaker connector

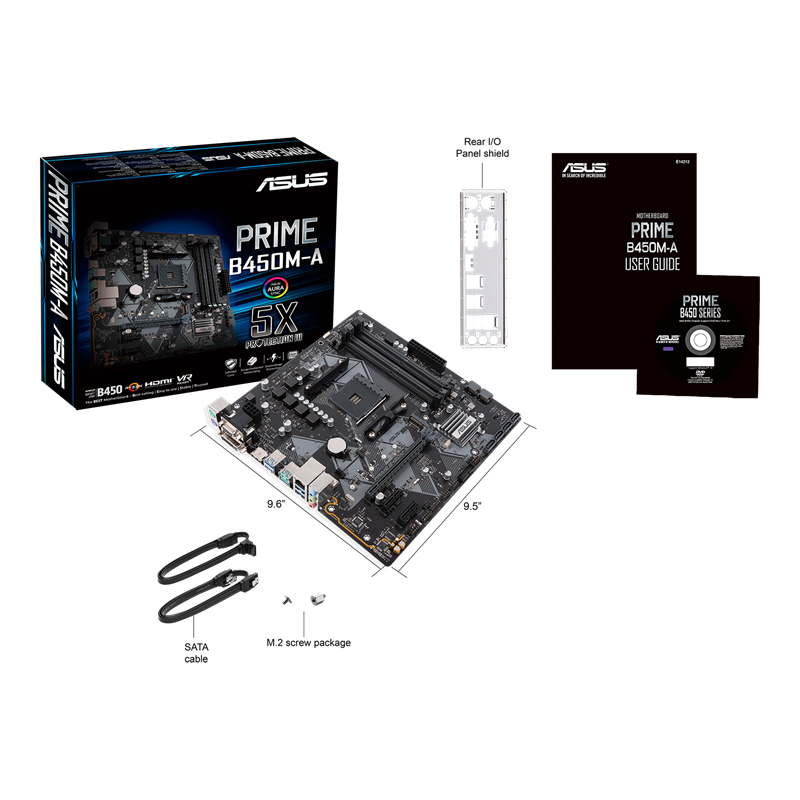

Accessories 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Operating System Windows 7 64-bit * 3 ,Windows 10 64-bit
Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ),mATX Form Factor
Note 1*Support NVMe PCIe RAID. 2*The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. 3*Install an AMD Ryzen 2nd Generatione or Ryzen 1st Generation Processors to support Windows 7 64-bit operating system.

Description

Specifications

Specification Details
Model PRIME B450M-A
CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset AMD B450
Memory 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory, 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors ,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,* The maximum memory frequency supported varies by processor.
Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors,Multi-VGA output support : HDMI/DVI-D/D-Sub ports,- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Expansion Slots 3rd/2nd/1st Gen AMD Ryzen Processors ,1 x PCIe 3.0/2.0 x16 (x8 mode) * 1 , AMD B450 chipset ,1 x PCIe 3.0/2.0 x16 (x16 mode), AMD Athlon with Radeon Vega Graphics Processors ,1 x PCIe 3.0/2.0 x16 (max at x4 mode),2 x PCIe 2.0 x1
Storage 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : , 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : , AMD B450 chipset : ,2 x SATA 6Gb/s port(s),,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 2 ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)* 2 ,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10, AMD Athlon with Radeon Vega Graphics Processors :
LAN Realtek RTL8111H, 1 x Gigabit LAN Controller(s),ASUS LAN Guard
Audio – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.,Realtek ALC8878-Channel High Definition Audio CODEC, Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : ,2 x USB 3.1 Gen 2 port(s) (2 at back panel, ), AMD B450 chipset : ,4 x USB 2.0/1.1 port(s) (4 at mid-board),4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue),2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
Special Features ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: Premium components provide better power efficiency, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :,- Stylish Fanless Design Heat-sink solution,- ASUS Fan Xpert 2+, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode,- Multi-language BIOS, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM
Back I/O Ports 2 x USB 3.1 Gen 2,4 x USB 3.1 Gen 1,1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),3 x Audio jack(s)
Internal I/O Ports 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),2 x Chassis Fan connector(s) (2 x 4-pin),1 x Aura RGB Strip Header,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x TPM header,1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x Speaker connector
Accessories 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Operating System Windows 7 64-bit * 3 ,Windows 10 64-bit
Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ),mATX Form Factor
Note 1*Support NVMe PCIe RAID. 2*The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. 3*Install an AMD Ryzen 2nd Generatione or Ryzen 1st Generation Processors to support Windows 7 64-bit operating system.
