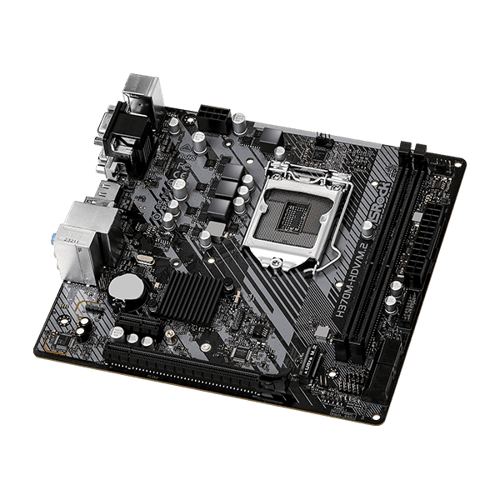

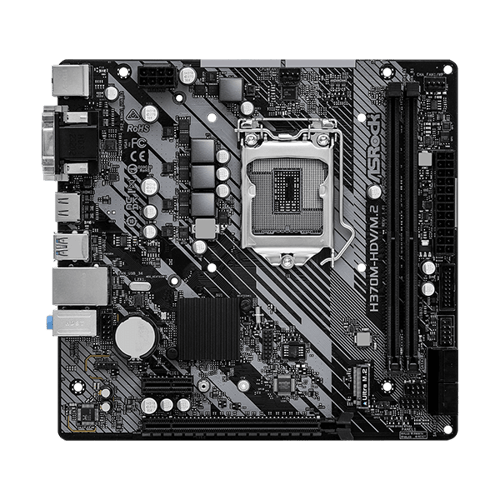

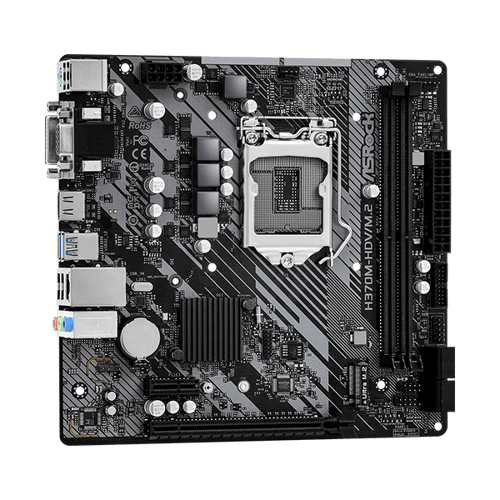

Asrock H370M Hdv M 2 Ddr4
Asrock H370M Hdv M 2 Ddr4 - Image 2
Asrock H370M Hdv M 2 Ddr4 - Image 3
Asrock H370M Hdv M 2 Ddr4 - Image 4

Asrock H370M Hdv M 2 Ddr4

In Stock
SKU : 1089671 Product Type: Brand:
₹5,050

Specifications Supports 9thand 8thGen IntelCore„ Processors (LGA1151) 4 Power Phase Supports DDR4 2666 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, DVI-D, D-Sub Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4 & SATA3

In Stock
Add to wishlist Compare
In Stock

Additional information

Specifications

  • Supports 9thand 8thGen IntelCore„ Processors (LGA1151)
  • 4 Power Phase
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4 & SATA3)
  • 4 USB 3.2 Gen1 Type-A (2 Rear, 2 Front),
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer
Model H370M-HDV/M.2
Unique Feature Rock-Solid Durability
– 4 Power Phase
EZ Update
– ASRock Auto Driver Installer
CPU
  • Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
  • Supports CPU up to 95W
  • Supports Intel Turbo Boost 2.0 Technology
Chipset Intel H370
Memory
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
  • Max. capacity of system memory: 64GB
  • Supports Intel Extreme Memory Profile (XMP) 2.0
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
Graphics
  • 1 x HDMI 1.4, supports HDCP 2.2, 4K Ultra HD (UHD) playback and max. resolution up to 4K 30Hz
  • 1 x DVI-D, supports HDCP 2.2 and max. resolution up to Full HD (1920×1200) 60Hz
  • 1 x D-Sub, supports max. resolution up to Full HD (1920×1200) 60Hz
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek 8111H
Slots CPU:
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode
Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE1)
Storage Chipset:

  • 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
  • 4 x SATA3 6.0 Gb/s Connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
  • 6 x USB 2.0 (4 Rear, 2 Front)
Connector
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 4 x USB 2.0 Ports
  • 2 x USB 3.2 Gen1 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software

  • ASRock Motherboard Utility (A-Tuning)
  • ASRock XFast LAN

UEFI

  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
Accessories
  • 1 x User Manual
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 1 x Screw for M.2 Socket
Form Factor
  • Micro ATX Form Factor: 7.9-in x 7.5-in, 20.1 cm x 19.1 cm
  • Solid Capacitor design
OS Microsoft Windows 10 64-bit / 11 64-bit
Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years

Description

Specifications

  • Supports 9thand 8thGen IntelCore„ Processors (LGA1151)
  • 4 Power Phase
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4 & SATA3)
  • 4 USB 3.2 Gen1 Type-A (2 Rear, 2 Front),
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer
Model H370M-HDV/M.2
Unique Feature Rock-Solid Durability
– 4 Power Phase
EZ Update
– ASRock Auto Driver Installer
CPU
  • Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
  • Supports CPU up to 95W
  • Supports Intel Turbo Boost 2.0 Technology
Chipset Intel H370
Memory
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
  • Max. capacity of system memory: 64GB
  • Supports Intel Extreme Memory Profile (XMP) 2.0
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
Graphics
  • 1 x HDMI 1.4, supports HDCP 2.2, 4K Ultra HD (UHD) playback and max. resolution up to 4K 30Hz
  • 1 x DVI-D, supports HDCP 2.2 and max. resolution up to Full HD (1920×1200) 60Hz
  • 1 x D-Sub, supports max. resolution up to Full HD (1920×1200) 60Hz
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek 8111H
Slots CPU:
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode
Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE1)
Storage Chipset:

  • 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
  • 4 x SATA3 6.0 Gb/s Connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
  • 6 x USB 2.0 (4 Rear, 2 Front)
Connector
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 4 x USB 2.0 Ports
  • 2 x USB 3.2 Gen1 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software

  • ASRock Motherboard Utility (A-Tuning)
  • ASRock XFast LAN

UEFI

  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
Accessories
  • 1 x User Manual
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 1 x Screw for M.2 Socket
Form Factor
  • Micro ATX Form Factor: 7.9-in x 7.5-in, 20.1 cm x 19.1 cm
  • Solid Capacitor design
OS Microsoft Windows 10 64-bit / 11 64-bit
Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
