Description

About this item:

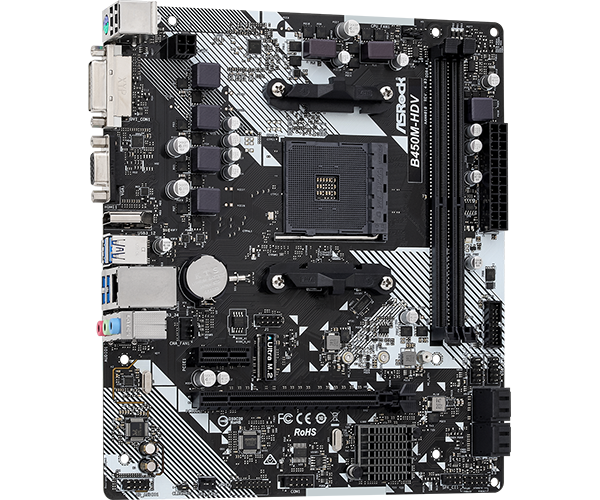

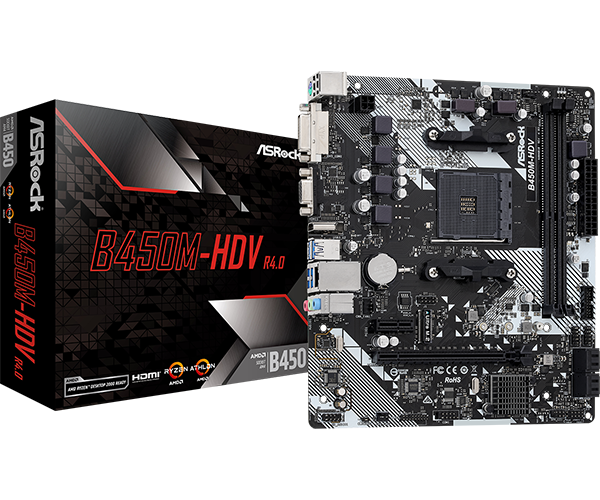

• AMD AM4 Socket with support for Ryzen 3, 5, 7, 9 Series and Athlon processors. Based on High Density Glass Fabric PCB design reducing the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
• 2 x DDR4 DIMM slots that can take in a maximum of 32GB memory, with support for DDR4 3200+(OC)/ 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC. It supports DirectX 12, Pixel Shader 5.0. 2 x USB 2.0 Ports, 4 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port with LED and also comes with ELNA audio caps
• 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug. 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)
• Comes with three graphics outputs including HDMI, DVI-D, D-Sub. Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz. Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz. Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz. Supports HDCP 1.4 with DVI-D and HDMI Ports

Product Description:



Technical Details:



Brand	‎ASRock
Manufacturer	‎Asrock, Asrock Inc
Series	‎ASrock mother Board
Form Factor	‎Micro ATX
Item Height	‎9.6 Inches
Item Width	‎2.5 Inches
Product Dimensions	‎30.48 x 6.35 x 24.38 cm; 730 g
Batteries	‎Lithium Metal batteries required.
Item model number	‎B450M-HDV R4.0
Processor Type	‎Athlon
Processor Socket	‎Socket AM4
Processor Count	‎1
Memory Technology	‎DDR4
Computer Memory Type	‎DDR4 SDRAM
Maximum Memory Supported	‎32 GB
Memory Clock Speed	‎3200 MHz
Graphics Card Interface	‎PCI Express
Connectivity Type	‎Wi-Fi
Wireless Type	‎802.11a
Number of USB 2.0 Ports	‎2
Number of HDMI Ports	‎2
Number of Ethernet Ports	‎1
Number of VGA Ports	‎1
Are Batteries Included	‎No
Manufacturer	‎Asrock
Country of Origin	‎Vietnam
Item Weight	‎730 g
