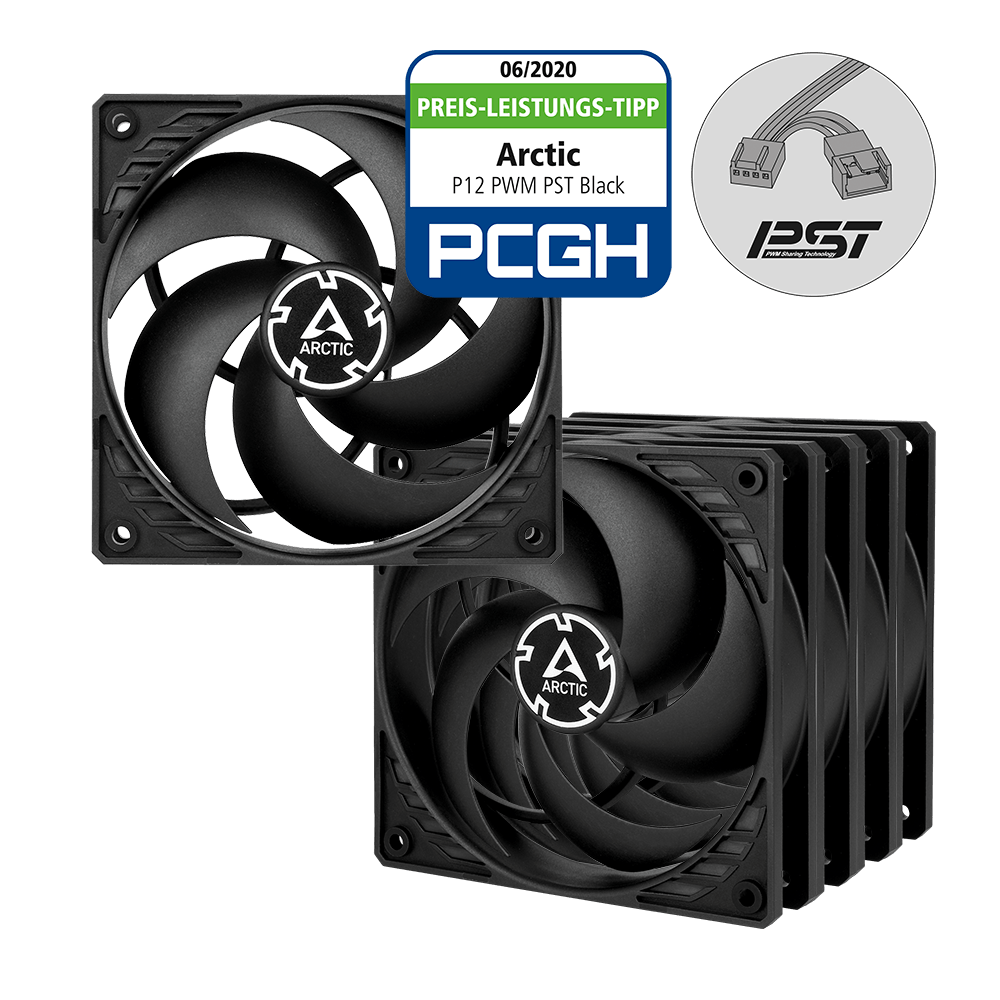

Specifications P12 PWM PST — 120 mm PWM Fan with Cable Splitter Dimensions 120 (L) x 120 (W) x 25 (H) mm Weight 145 g Speed 200–1800 rpm, 0 rpm below 5% PWM rpm Control Pulse Width Modulation – PWM Static Pressure 2.20 mmH2O Airflow 56.3 cfm | 95.70 m³/h
| P12 PWM PST — 120 mm PWM Fan with Cable Splitter | |
|---|---|
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Weight | 145 g |
| Speed | 200–1800 rpm, 0 rpm below 5% PWM |
| rpm Control | Pulse Width Modulation – PWM |
| Static Pressure | 2.20 mmH2O |
| Airflow | 56.3 cfm | 95.70 m³/h |
| Bearing | Fluid Dynamic Bearing |
| Cable Length | 400 mm |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Current | Voltage | 0.1 A | 12 V DC |
| Starting Voltage | 3.9 V DC |
| Noise Level | 0.3 Sone |
| Ambient Operating Temperature | 0–40 °C |
| SKU (Single Fan – Black) | ACFAN00120A |
| EAN (Single Fan – Black) | 4895213702966 |
| UPC (Single Fan – Black) | 840033400763 |
| SKU (Single Fan – Black Shipping) | ACFAN00170A |
| EAN (Single Fan – Black Shipping) | 4895213702935 |
| UPC (Single Fan – Black Shipping) | 840033400732 |
| SKU (Pack of 5 – Black) | ACFAN00137A |
| EAN (Pack of 5 – Black) | 4895213703345 |
| UPC (Pack of 5 – Black) | 840033401159 |
| Box Content (Single) | P12 PWM PST x 1; Mounting Screws x 4 |
| Box Content (Pack of 5) | P12 PWM PST x 5; Mounting Screws x 20 |
| Pinout |
Pin#1 – Ground (-); Pin#2 – Power (+); Pin#3 – Signal (Tachometer Output); Pin#4 – PWM Control |
| Compliance | All materials compatible with RoHS requirements |
“
| P12 PWM PST — 120 mm PWM Fan with Cable Splitter | |
|---|---|
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Weight | 145 g |
| Speed | 200–1800 rpm, 0 rpm below 5% PWM |
| rpm Control | Pulse Width Modulation – PWM |
| Static Pressure | 2.20 mmH2O |
| Airflow | 56.3 cfm | 95.70 m³/h |
| Bearing | Fluid Dynamic Bearing |
| Cable Length | 400 mm |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Current | Voltage | 0.1 A | 12 V DC |
| Starting Voltage | 3.9 V DC |
| Noise Level | 0.3 Sone |
| Ambient Operating Temperature | 0–40 °C |
| SKU (Single Fan – Black) | ACFAN00120A |
| EAN (Single Fan – Black) | 4895213702966 |
| UPC (Single Fan – Black) | 840033400763 |
| SKU (Single Fan – Black Shipping) | ACFAN00170A |
| EAN (Single Fan – Black Shipping) | 4895213702935 |
| UPC (Single Fan – Black Shipping) | 840033400732 |
| SKU (Pack of 5 – Black) | ACFAN00137A |
| EAN (Pack of 5 – Black) | 4895213703345 |
| UPC (Pack of 5 – Black) | 840033401159 |
| Box Content (Single) | P12 PWM PST x 1; Mounting Screws x 4 |
| Box Content (Pack of 5) | P12 PWM PST x 5; Mounting Screws x 20 |
| Pinout |
Pin#1 – Ground (-); Pin#2 – Power (+); Pin#3 – Signal (Tachometer Output); Pin#4 – PWM Control |
| Compliance | All materials compatible with RoHS requirements |
“
