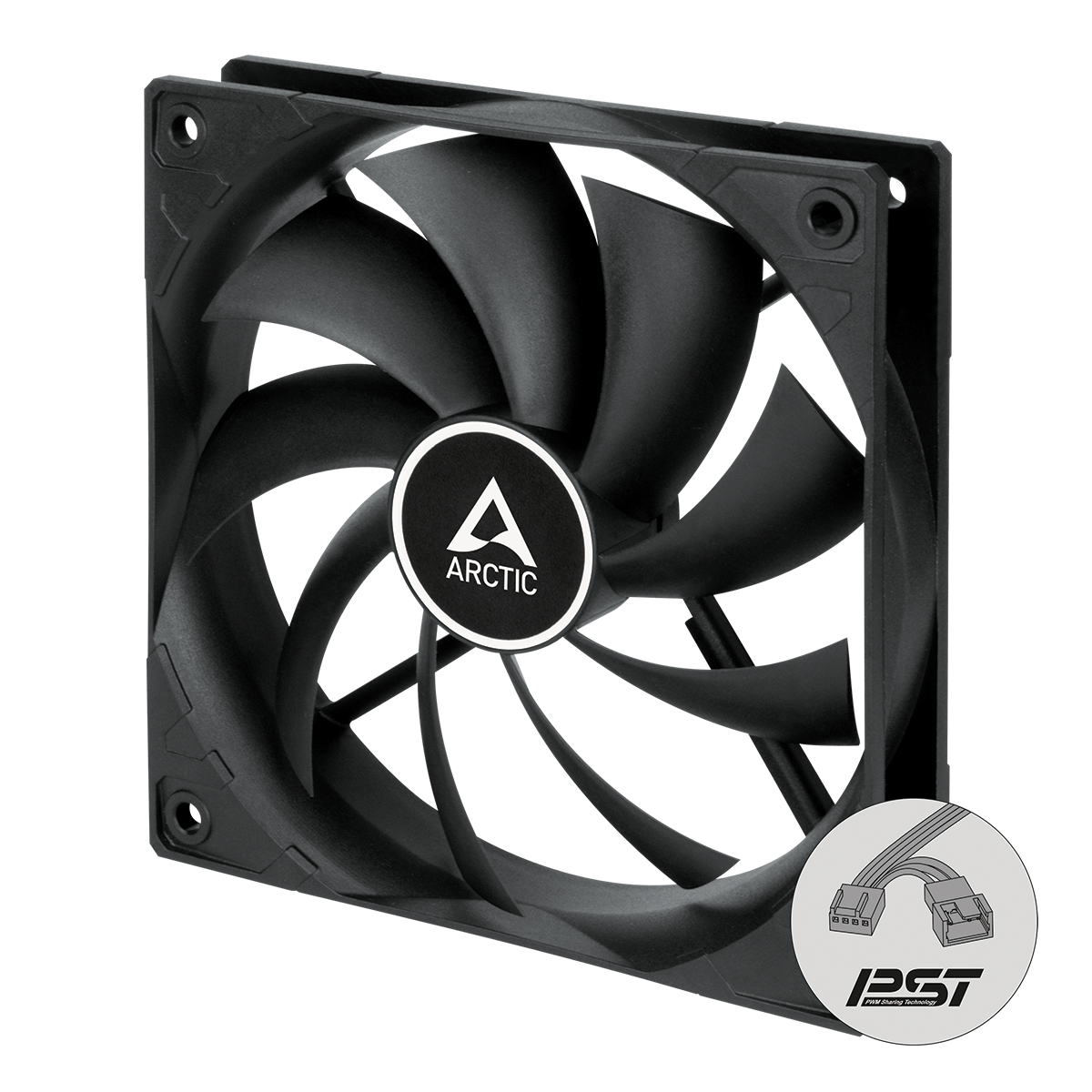

Arctic F12 Cabinet Fan

Name: Arctic F12 Cabinet Fan
Brand: Arctic
SKU: ACFAN00200A
Availability: InStock

SKU: ACFAN00200A

₹849

Add to wishlist Compare

SKU: ACFAN00200A Category: Cabinet Fans Brand: Arctic

Specifications F12 PWM PST — 120 mm PWM Fan with Cable Splitter Dimensions 120 (L) x 120 (W) x 25 (H) mm Weight 109 g Speed 230–1350 rpm, 0 rpm <5% PWM rpm Control Pulsweitenmodulation – PWM Static Pressure 1.0 mmH2O Airflow 53 cfm | 90.1 m³/h Bearing Flu

Description
Reviews (0)

Description

Specifications

F12 PWM PST — 120 mm PWM Fan with Cable Splitter
Dimensions	120 (L) x 120 (W) x 25 (H) mm
Weight	109 g
Speed	230–1350 rpm, 0 rpm <5% PWM
rpm Control	Pulsweitenmodulation – PWM
Static Pressure	1.0 mmH2O
Airflow	53 cfm \| 90.1 m³/h
Bearing	Fluid Dynamic Bearing
Cable Length	400 mm
Connector	4-Pin Connector + 4-Pin Socket
Current \| Voltage	0.21 A \| 12 V DC
Starting Voltage	6.0 V DC
Noise Level	0.3 Sone
Ambient Operating Temperature	0–40 °C
SKU (Single Fan – Black)	ACFAN00200A
EAN (Single Fan – Black)	4895213702966
UPC (Single Fan – Black)	840033400763
SKU (Single Fan – White)	ACFAN00198A
EAN (Single Fan – White)	4895213702935
UPC (Single Fan – White)	840033400732
SKU (Pack of 5 – Black)	ACFAN00250A
EAN (Pack of 5 – Black)	4895213703345
UPC (Pack of 5 – Black)	840033401159
Box Content (Single)	F12 PWM PST x 1; Mounting Screws x 4
Box Content (Pack of 5)	F12 PWM PST x 5; Mounting Screws x 20
Pinout	Pin#1 – Ground (-); Pin#2 – Power (+); Pin#3 – Signal (Tachometer Output); Pin#4 – PWM Control
Compliance	All materials are compatible with RoHS requirements
